Principatam Steel Pipe Caps (finem caps) pro pressura vas

Principatam Steel Pipe Caps (finem caps) pro pressura vas

Pipe caerimonias usus ad fistula finem tibiarum finem operire pipe dicuntur immaculatam ferro pipe caps (finem caps). Est plerumque factum ex immaculatam ferro materia, quae est corrosio, repugnans et altus-temperatus repugnant.

Classification de immaculatam ferro pipe caps:

I. Aliquam Steel Pipe circum caps: circum caps sunt maxime commune genus caps et late in industriae productio. Plerumque eius imo conflatum summo continentis. Communis agri includit liquefied Gas, repono obterere, subtorage, etc.

II. Steel Pipe ovali caps: ovalis caps sunt late in cibo, medicina, et pharmaceutical industries et aliis occasionibus cum altum hygiene requisitis. Structuram est simile, quod circa caps sed maior radii.

III. Steel Pipe Caps Caps Caps: Caps Caps in cylindrical et quasi-sphaerica parte in fundo. Caps tabernack caps apta applications sub magno pressura et summus temperatus conditionibus.

Utitur de immaculatam ferro pipe caps (finem caps):

1. Good airtightness of the container: Stainless Steel Pipe Caps (End Caps) adopt welding technology, which can effectively prevent the leakage of gas or liquid in the container and ensure the airtightness of the material in the container.

II. Potest sustinere internum pressura: caput est cum summus qualis crassa, malleatus stainlless ferro et connectitur ad continens per Welding, quod potest sustinere multum pressura. Cum continens est opus Northmanni, internum pressura agere in caput. Aliquam ferro pipe caps (finem caps) postulo ut poterit sustinere princeps internum pressura ad curare firmum et tutum operationem in quo continens.

III. Potest sustinere quaedam externa pressura: plerumque in continens non est independens unitas et necessitates ad opus in alias unitates. In hoc tempore, praeter quoddam internum pressura, quaedam continentia et opus esse poterit resistere externa pressura ut salus totius ratio.

IV. Vultus, specie immaculatam ferro pipe caps (finem caps) potest esse disposito ut opus ad ornandum speciem ad repono cisternina et occursum in landscape requisita.

Summary:

Steel pipe tiaris late in variis Pipeline systems, ut aqua copia pipelines, Gas pipelines, eget pipeline, etc. possunt esse ad sigillum Pipeline portus ne aliena substantiarum ab intrantes Pipeline portus ne aliena substantiae ab intrantes Pipeline portus ne aliena substantiae ab intrantes Pipeline portus ne aliena substantiae ab intrantes Pipeline in sustentacionem et emundationem. In addition, immaculatam ferro pipe caps potest adhiberi ad Gas aut fluidum pressura temptationis ut integritas et salus Pipeline ratio.

Prev:Analysis de communi problems in vestibulum immaculatam fistulam finem caps
Next:No next article

Introductio

Pipe caps
Item	Steel pipe caps
Vexillum	ASM, ASME, DIN, GOST, JIS, etc.
Materia	Carbon Steel, Alloy Steel, immaculatam ferro etc.
Superficies	Arena exspirant
Genus	FRUSTRUM
magnitudo	NP I / 2-24 "
Delivery Tempus	Intra 5-30 diebus post acceptam PROMUTUUS
Stipare	Ligne casus, lignea pallet, etc.
Applicatio	Aqua copia pipelines, Gas pipelines, eget industria pipelines, etc.

CCCIV / 306stainless ferro buttweld c

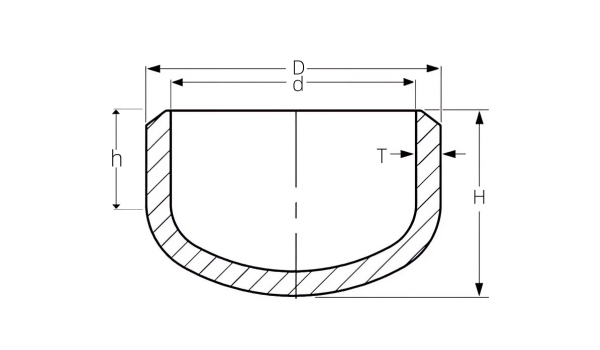

Unit: inch

Pileum				Morbi rhoncus 10s (s / 10s)			Schedule 40s (s / 40s et STD)			Schedule 80s (s / 80s et XH)
Np	D	H	h	d	T	Pondus proxime	d	T	Pondus proxime	d	T	Pondus proxime
1/2	0.840	1.00	0.740	0.674	0.083	0.090	0.622	0.109	0.100	0.546	0.147	0.110
3/4	1.050	1.00	0.680	0.884	0.083	0.120	0.824	0.113	0.130	0.742	0.154	0.140
1	1.315	1.50	1.100	1.097	0.109	0.190	1.049	0.133	0.280	0.957	0.179	0.290
I 1/4	1.660	1.50	1.020	1.442	0.109	0.280	1.380	0.140	0.380	1.278	0.191	0.390
I 1/2	1.900	1.50	0.950	1.682	0.109	0.310	1.610	0.145	0.500	1.500	0.200	0.540
2	2.375	1.50	0.930	2.157	0.109	0.380	2.067	0.154	0.600	1.939	0.218	0.750
II 1/2	2.875	1.50	0.680	2.635	0.120	0.560	2.469	0.203	1.000	2.323	0.276	1.120
3	3.500	2.00	1.020	3.260	0.120	0.880	3.068	0.216	1.560	2.900	0.300	1.870
III 1/2	4.000	2.5	1.400	3.760	0.120	1.250	3.548	0.226	2.250	3.364	0.318	2.500
4	4.500	2.5	1.260	4.260	0.120	1.440	4.026	0.237	2.690	3.826	0.337	3.540
5	5.563	3.00	1.480	5.295	0.134	2.250	5.047	0.258	4.060	4.813	0.375	5.630
6	6.625	3.50	1.700	6.357	0.134	3.000	6.065	0.280	7.120	5.761	0.432	10.000
8	8.625	4.00	1.680	8.329	0.148	5.500	7.981	0.322	12.500	7.625	0.500	16.380
10	10.750	5.00	2.130	10.420	0.165	10.800	10.020	0.365	20.300	9.750	0.500	27.300
12	12.750	6.00	2.630	12.390	0.180	14.400	12.00	0.375	28.800	11.750	0.500	36.600
14	14.000	6.50	2.810	13.624	0.188	18.000	13.250	0.375	35.700	13.000	0.500	48.000
16	16.000	7.00	2.810	15.624	0.188	32.000	15.250	0.375	48.500	15.000	0.500	65.000
18	18.000	8.00	3.310	17.624	0.188	39.600	17.250	0.375	59.400	17.000	0.500	79.200
20	20.000	9.00	3.810	19.564	0.218	60.000	19.250	0.375	75.000	19.000	0.500	88.000
24	24.000	10.50	4.310	23.500	0.250	76.000	23.250	0.375	98.000	23.000	0.500	135.000
