Plate flaccibus habere similes figura ut praetermisissent-in flanges. Est genus flange quod est interficiam a plana fragmen metallum. Sunt plerumque idoneam ad limbis systems ubi Conventus et disassembly Pipeline sunt crebris.
Plerumque non habent maius circumferentiam quam alia genera flanges resistere superiore pressura. Potest fortes hospites inter diversas amplitudo fistulae et sustinere gravi temperatus mutationes. Circularis orbem est ablectitur in finem fistula et concedit ut ad alterum fistula. Typice in cibus et aqua pipelines, duo laminam et bolted simul cum a gasket in inter eos in laminam laminam erit fulmine foramina in circuitu per circuitum et erit creare junctas, Tees et articulis.
Plate Flannges potest fieri ex multis genera metallum inter ipsum ferro, immaculatam ferro, et muro ferro, inter alios. Est in multis industries, ut oleum et Gas industria, quia connectens fistulae et protegens eos ab externis elementis.
Introductio
| Vexillum | ANSI B16.5, Ansi B16.47, MSSI SP44, Ansi B16.36, Ansi B16.48 |
| Material grades | Aliquam Steel, Carbon Steel, Alloy Steel, Cupro Nickel (90/10, 70/30, 66/30/2/2), C276 (C-II), DCI (DCCCXXV, (DCCCXX), DC & (DCCCXXV, (DCCCXX), DC & (DCCCXX), 800H), DC & (DCCCXXV, (DCCCXX), DC Duplex Steel, P 904L, Titanium (I & II), etc. |
| Superficies | Anirust pingunt, oleum nigrum pingere, flavo transparent, cadmiae patella, frigus et calidum intinge galvanized |
| Genus | Cnc machining |
| magnitudo | I "-12" |
| Delivery Tempus | Intra 5-30 diebus post acceptam PROMUTUUS |
| Stipare | Ligneus |
| Applicatio | Piping Systems: Plate Flanges sunt communiter in Piping systems ad coniungere tibia et aliena. |

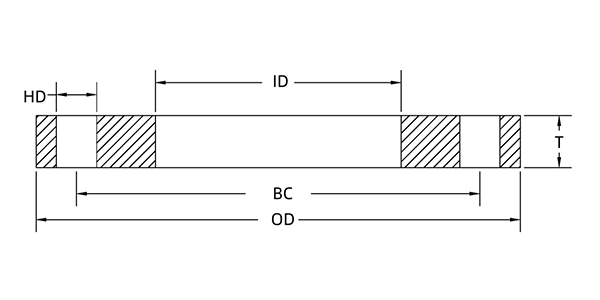

| Nominal pipe magnitudine | Crassities | Extra dia. (Od) | Intra dia. (ID) | Numerus foraminibus | Foraminis dia. | Bolt circulo | Pondus |
| In | T (in) | OD (in) | Id (in) | Foro | HD (in) | BC (in) | In libras |
| 1 | 0.500 | 4.25 | 1.063 | 4 | 0.62 | 3.12 | 1.74 |
| I quadrata | 0.500 | 4.62 | 1.313 | 4 | 0.62 | 3.50 | 2.01 |
| I ½ | 0.500 | 5.00 | 1.563 | 4 | 0.62 | 3.88 | 2.34 |
| 2 | 0.500 | 6.00 | 2.063 | 4 | 0.75 | 4.75 | 3.28 |
| II ½ | 0.500 | 7.00 | 2.563 | 4 | 0.75 | 5.50 | 4.52 |
| 3 | 0.500 | 7.50 | 3.063 | 4 | 0.75 | 6.00 | 4.89 |
| 4 | 0.500 | 9.00 | 4.063 | 8 | 0.75 | 7.50 | 6.59 |
| 5 | 0.500 | 10.00 | 5.063 | 8 | 0.88 | 8.50 | 7.32 |
| 6 | 0.500 | 11.00 | 6.063 | 8 | 0.88 | 9.50 | 8.27 |
| 8 | 0.500 | 13.50 | 8.063 | 8 | 0.88 | 11.75 | 11.86 |
| 10 | 0.500 | 16.00 | 10.063 | 12 | 1.00 | 14.25 | 18.39 |
| 12 | 0.500 | 19.00 | 12.063 | 12 | 1.00 | 17.00 | 26.87 |
Condita in MMVII et ad Longyou oeconomica progressionem zonam, Zhejiang provincia, in MMXXII. Covers aream 130,000 quadratum metris, magis quam XXX productio lineas, CCC operarios, XX R & D populus, XXX inspectionem et annua, XX R & D populus, XXX inspectionem et annua output de 50.000 talentorum XXX.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (Abs): British Register of Shipping (LR), Deutsche Veritas (GL), Bureau veritas Society (BV), Det Norske (DNV), Coreanica Register of Shipping (KR) officina certification.
Pelagus products includere immaculatam ferro, pipe caerimonias, flanges, valvulae, etc., quae late in PETROLEUM, chemical industria, nuclei industria, urget, shippuilding, nuclei, cibo, saltu, electrica, et alimentis, mechanica apparatibus, et aliis agris. In comitatu adhaeret ad corporatum tenet de "qualis est superessendam, fama pro progressionem" et animo serves omnis mos creare win-vincere situ.
