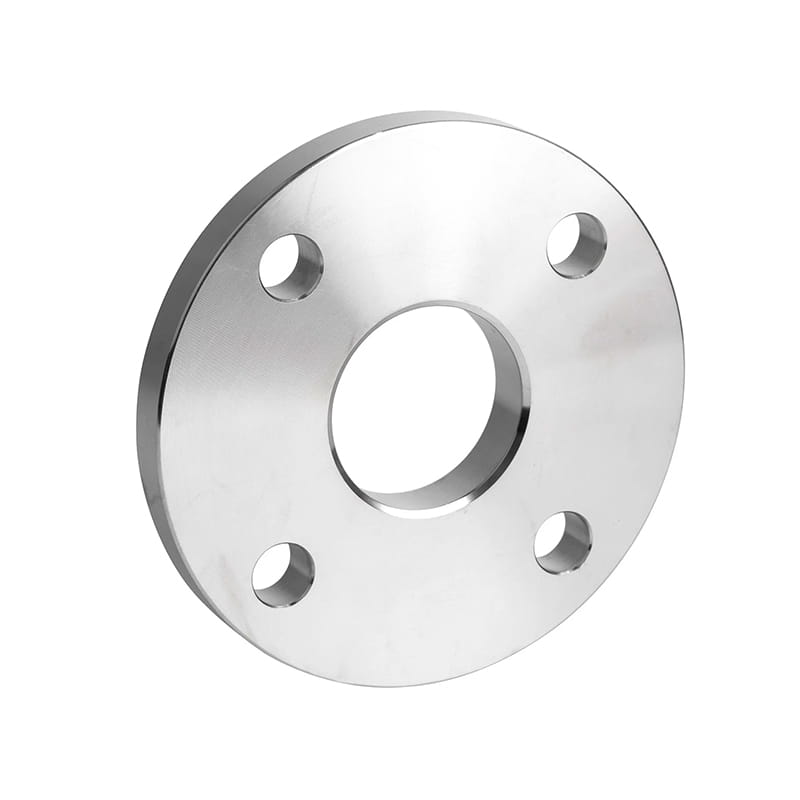

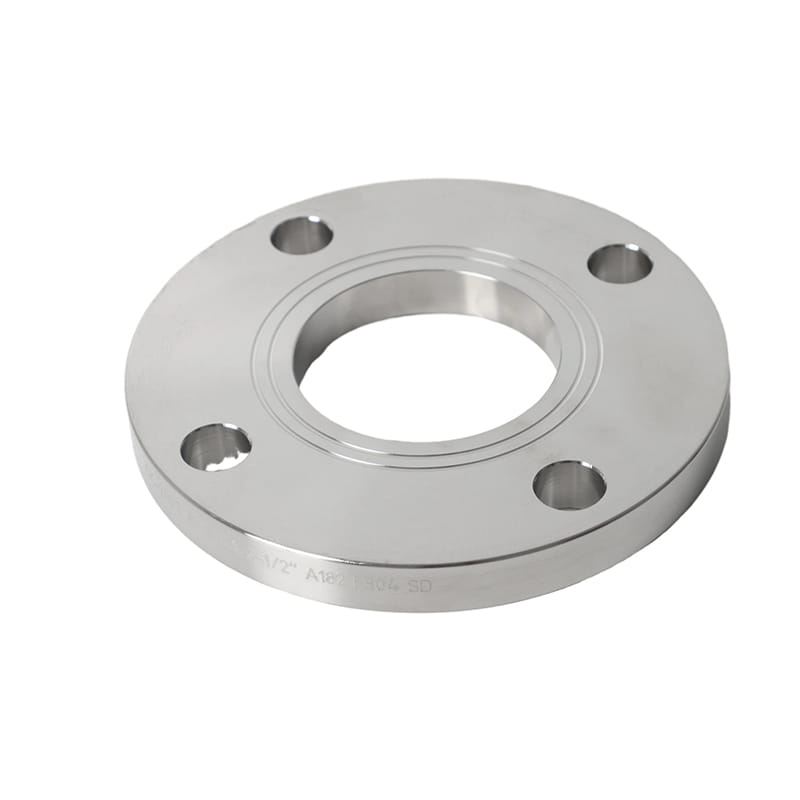

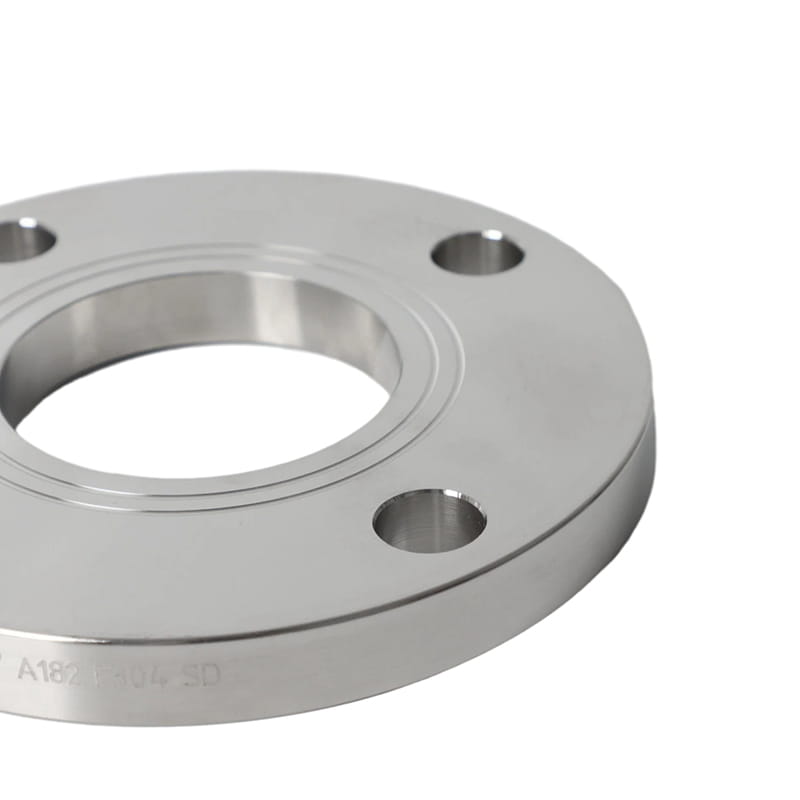

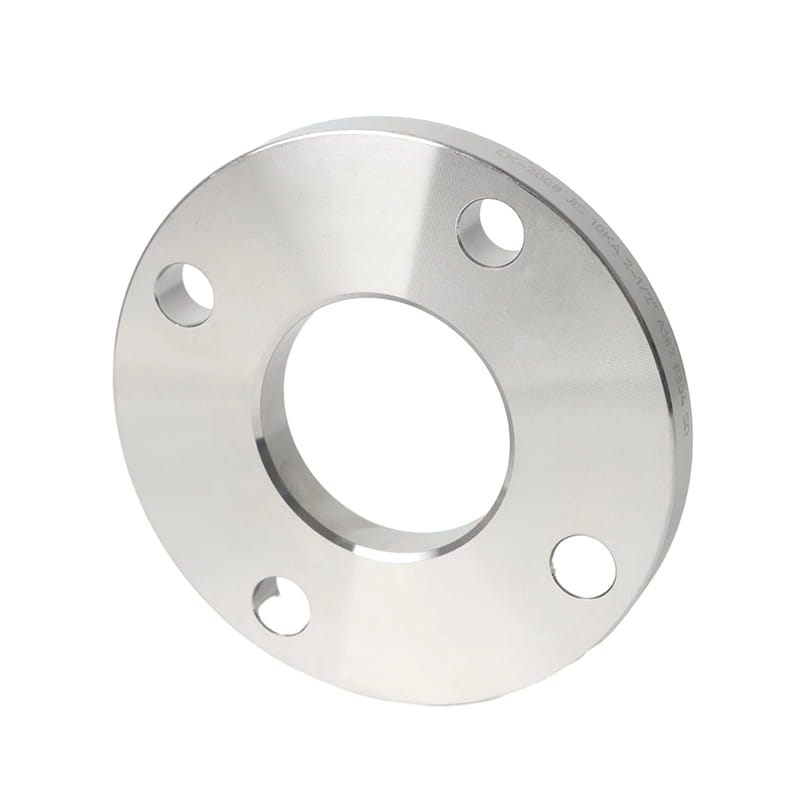

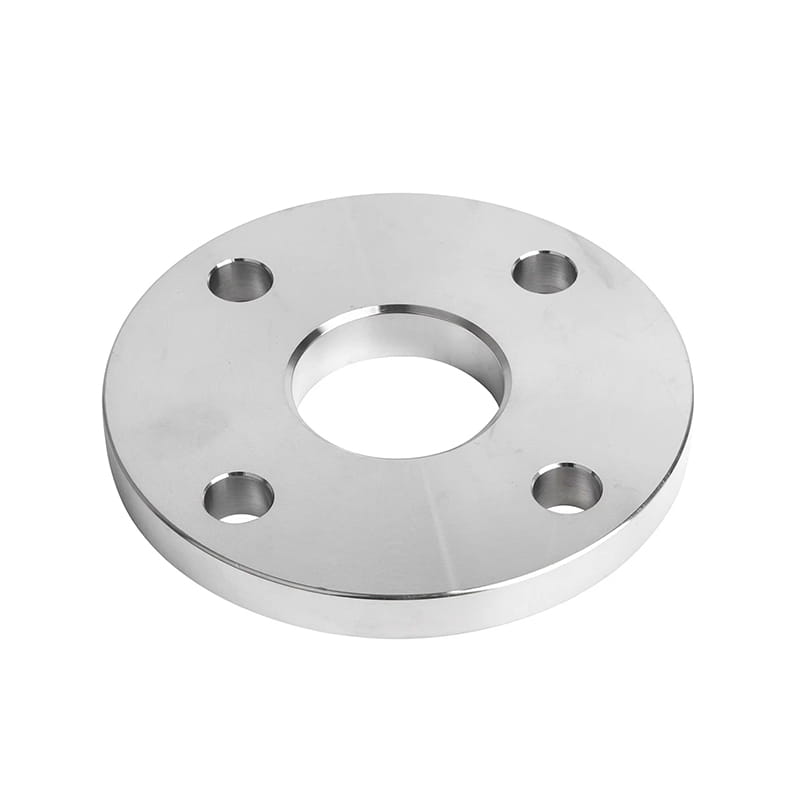

Carbon ferro laminam LABIUM cum fulmine foraminibus circum circuitu eius ambiente

Carbon ferro laminam LABIUM cum fulmine foraminibus circum circuitu eius ambiente

Flange laminis sunt genus fastener qui sunt ad tenere duo obiecta simul, typice ex metallum, servientes ut crucial iungo for organorum et apparatibus. Burana plana, circularis laminam cum fulmine foramina, ut secure affectum.

Offerunt facile installation et remotionem facilius sustentationem. Systematis ex duabus partibus: unum finem tibia et laminam LABIUM. Processus operatur per WELDING plana et circularis laminam - laminam LABIUM - onto unum finem tibia et subinde ad alium pipe una cum a gasket in inter. In plana design ensures uniformis pressura distribution, promovendae certa signacula in altus-pressura environments.

Plate flanges sunt versatile, et compatible cum variis materiae, faciens ea idoneam diversis industriae applications. Late usus est in industrias ut petrochemical et vestibulum, laminam flanges conferunt ad robust, Leak-repugnant hospites, enhancing efficientiam et salus fluidi translationem et processui in industrialis occasus fluidi.

Flante mensa facile fingit et effingens in laminam flanges. Ergo cum aliis genera flanges, sunt relative cheap, faciens ea sumptus-efficax electio. Non potest etiam customize eos in occursum propria applicationem necessitates, ut diversis pressura campester et magnitudinum.

Prev:No previous article
Next:Aliquam Steel laminam LABIUM concedit ut ad alterum fistula

Introductio

Vexillum	(I) The Latin Vulgate Asme / ANSI B 16,5, ASME B 16,47 Series A (MSS SP XLIV), ASME B 16.47 Series B (API DCV) (II) Standard BS MMMCCXCIII, BS MDLX, BS (IV) DIV, BS X (III) German Latin Din2630, Din2631, Din2632, Din2633, Din2634, Din2635, Din2636, Din2637, Din2627, Din2628, Din2629 (IV) Latin Vulgate MMCCLXXX Uni, Uni MMCCLXXXI, UNI MMCCLXXXII, UNI MMCCLXXXIII, UNI MMCCLXXXIV (V) Russian, Australia, Iaponica Latin Gostus 12821-80, as2129, Jis B2220 / KS B1503
Materia	(I) Aliquam Steel: ASTM A CLXXXII, a CCXL F CCCIV, 304L, 304h, CCCXVI, 316L, 316TI, CCCXVII, 347, 347h, CCCXVII, CCCXLVII, 347h, CCCXVII, CCCLXXI, 347h, CCCXVII, CCCXLVII, 347h, CCCXVII; (II) Duplex & Super Duplex Steel: ASM / ASME A / SA CLXXXII F XLIV, FV XLV, F51, F LIII, F LV, F LXI (3)Carbon Steel: ASTM / ASME A/SA 105 ASTM / ASME A 350, ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706; (IV) Minimum-temperatus ipsum Steel: ASTM A350, LF2, LF3; (VI) Alloy Steel: ASM / ASME A / SA CLXXXII & CCCLXXXVII F1, F5, F9, F11, F12, F22, F91; (7)Copper Alloy Steel: ASTM SB 61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200; (VIII) Nickel Alloy: ASTM SB564, SB160, SB472, SB162 Nickel CC (N. N02200), Monel D (N. N. N08800), DCCCXXV N. N. N.), Inconel DCCCXXV N08825), DC Inconcialis (N. N. N06600), Inconel DCXXV (N. N. N06625), CCLXXVI N. N. N10276) Alloy XX (N. N. N08020)
Superficies	Oleum nigrum pingunt, anti-rubigo pingunt, cadmiae patella, flavo transparent, frigus et calidum intinge galvanized
Genus	ferebantur, calor, tractata et machined
magnitudo	I "-12"
Delivery Tempus	Intra 5-30 diebus post acceptam PROMUTUUS
Stipare	Ligneus
Applicatio	Et applicat ad occasiones, cum medium est flammabilem, explosivae, toxicus et pressura est princeps, inter oleum et Gas, eget, petrochemical, et virtutem generationem, cibus et aqua pipelines, etc.

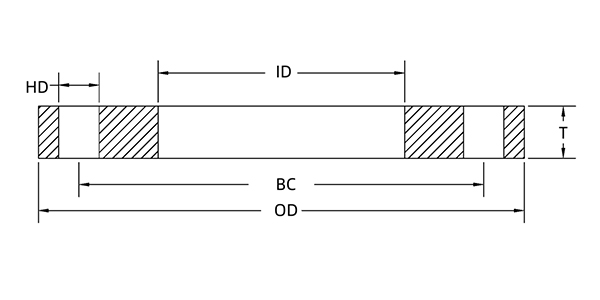

Nominal pipe magnitudine	Crassities	Extra dia. (Od)	Intra dia. (ID)	Numerus foraminibus	Foraminis dia.	Bolt circulo	Pondus shipping
In	T (in)	OD (in)	Id (in)	Foro	HD (in)	BC (in)	In libras
Obolum	0.55	3.50	0.88	4	0.62	2.38	1.17
Quadrata	0.552	3.88	1.09	4	0.62	2.75	1.45
1	0.500	4.25	1.36	4	0.62	3.12	1.73
I quadrata	0.500	4.62	1.70	4	0.62	3.50	2.00
I ½	0.500	5.00	1.95	4	0.62	3.88	2.32
2	0.500	6.00	2.44	4	0.75	4.75	3.28
II obolum	0.500	7.00	2.94	4	0.75	5.50	4.50
3	0.500	7.50	3.57	4	0.75	6.00	4.88
III obolum	0.500	8.50	4.07	8	0.75	7.00	6.04
4	0.500	9.00	4.60	8	0.75	7.50	6.57
5	0.500	10.00	5.66	8	0.88	8.50	7.31
6	0.500	11.00	6.72	8	0.88	9.50	8.24
8	0.500	13.5	8.72	8	0.88	11.75	11.83
10	0.625	16.00	10.88	12	1.00	14.25	18.39
12	0.625	19.00	12.88	12	1.00	17.00	26.80
14	0.625	21.00	14.14	112	1.12	18.75	33.05
16	0.630	23.50	16.16	16	1.12	21.25	47.45
18	0.750	25.00	18.18	16	1.25	22.75	60.00
20	0.750	27.50	20.20	20	1.25	25.00	73.76
24	1.000	32.00	24.25	20	1.38	29.50	92.64
30	1.000	38.75	30.25	28	1.38	36.00	124.16
36	1.250	46.00	36.25	32	1.62	42.75	207.40
