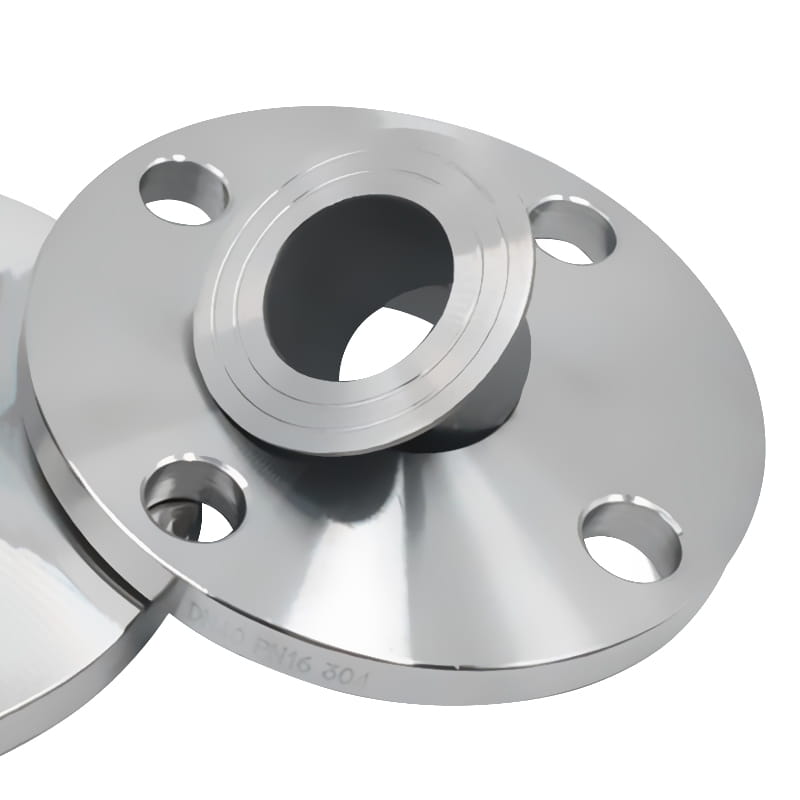

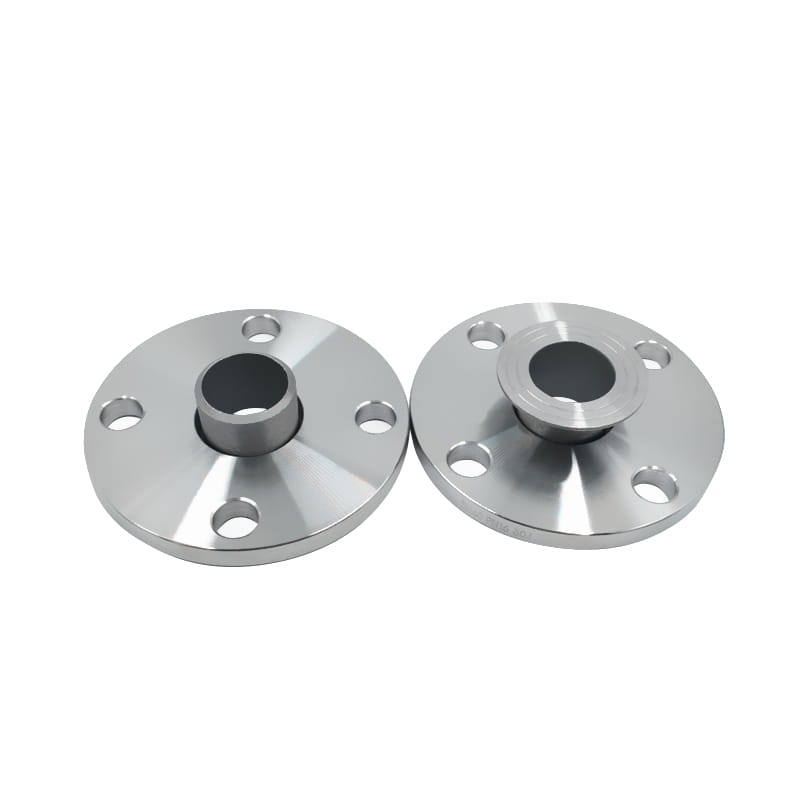

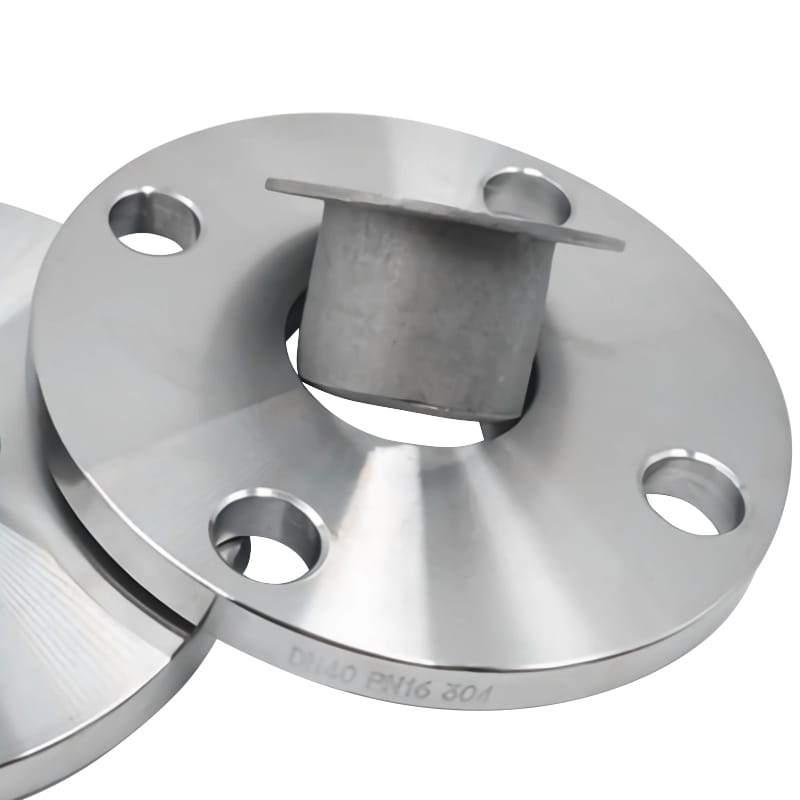

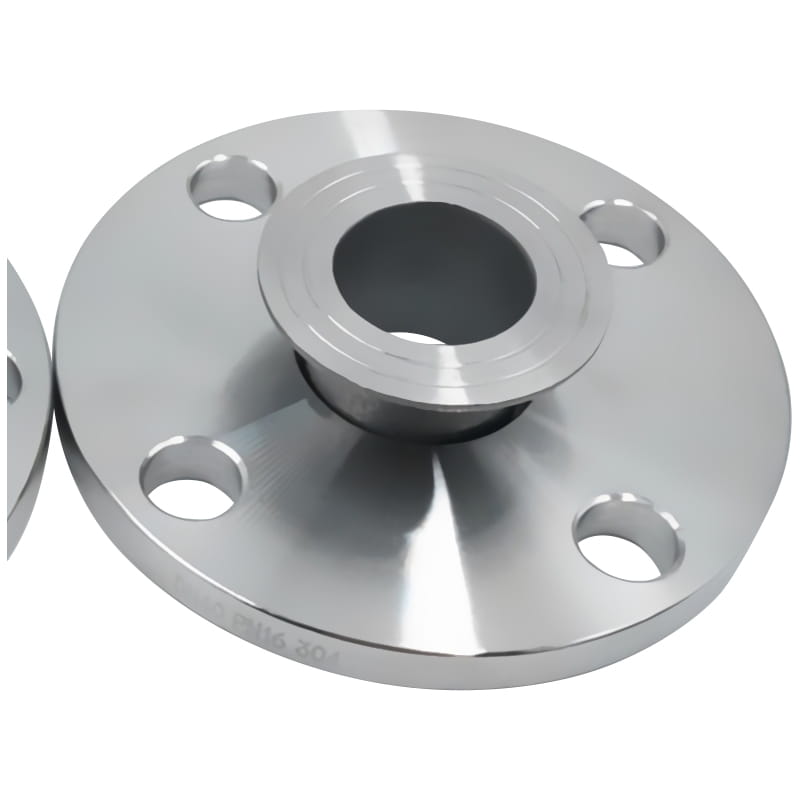

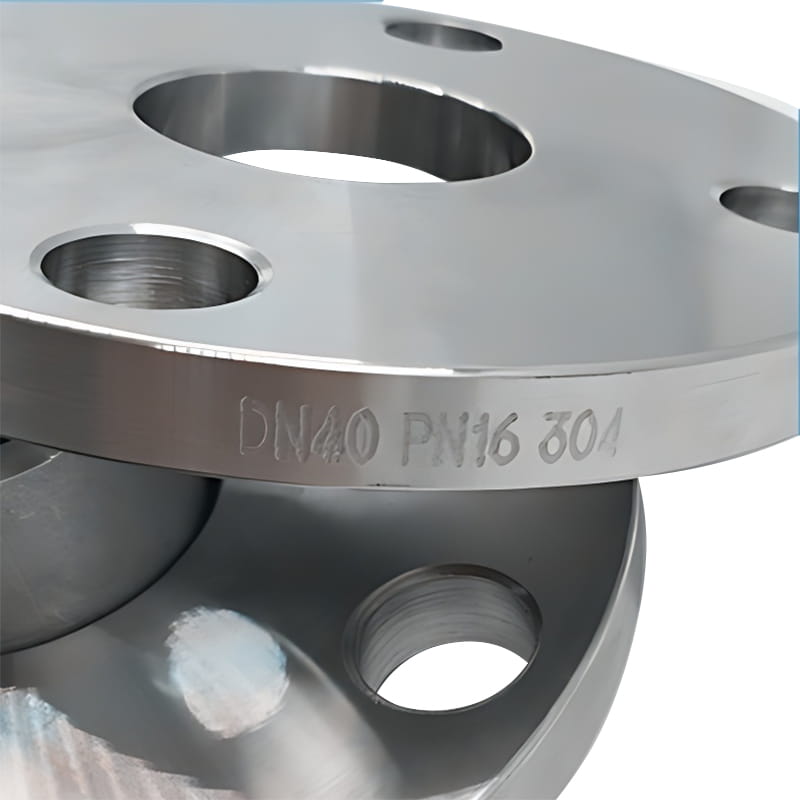

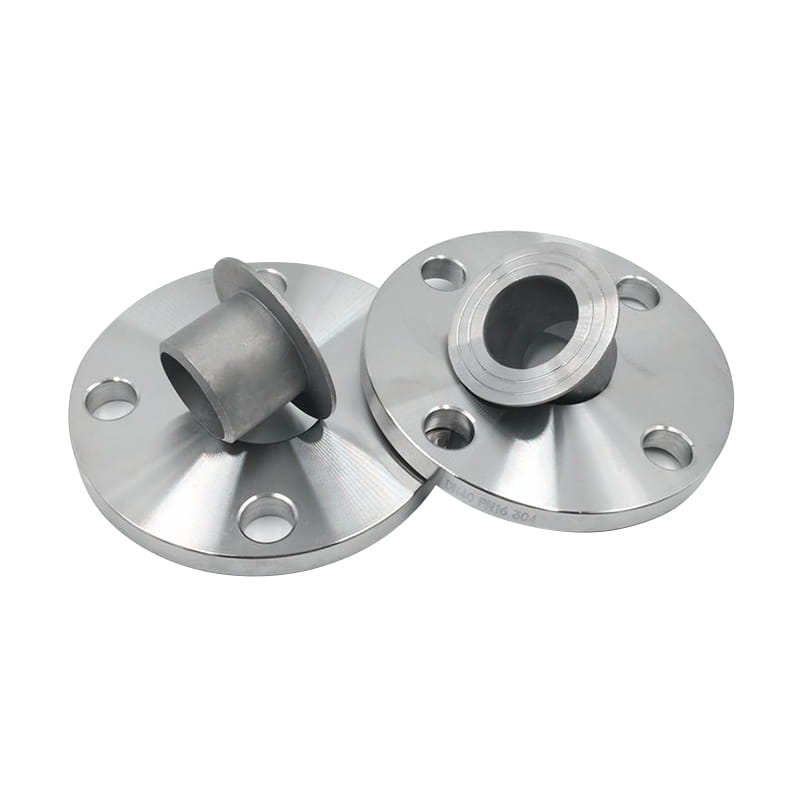

Certe ss gremio iuncturam LABIUM cum tandem

Certe ss gremio iuncturam LABIUM cum tandem

Gremio iuncturam LABIUM non habet resuscitavit faciem, quod est in conjunction cum "gremio iuncturam tecta finis" - A gremio iuncturam stipula finem et gremio iuncturam LABIUM. Usus est in puncta ubi gravibus inclinata accentus occurs debet vitari.

Cum enim gremio iuncturam flange ipsa non est ut tibia, ut gyrari ad align fulmine foramina libenter et ecclesiam et disassembly est facile. Hoc pluma simplifies installation, sustentacionem et reparare tasks, reducendo downtime et altiore costs. In Design de Flange permittit ad angularem misalignment of tibiae, cursus stricta et Leak-probationem iuncturam etiam cum fistularum non perfecte aligned.

Crevices formatae inter internum superficies LAGE peperit et externum superficiem ex tandem ut colligere contineat libenter. In collected contaminat potuit a forsit et consequuntur in Crevice corrosio.

Sunt plerumque in humilis-pressura applications, ut petrochemicals, oleum et Gas, aqua curatio, cibum et potum, et eget processui industrias.

Prev:No previous article
Next:Polying Stainless Steel Great iuncturam Flange Conventus

Introductio

Vexillum	ANSI / ASME: Ansi B16.5, Ansi B16.47, MSSIV SP44, ANSI B16.36, Ansi B16.48
Materia	Carbon Steel: ASTM A105, A350 LF2 Aliquam Steel: A182 F304 / F304L / F316 / F316L / F321 Alloy Steel: ASM A182, Gr F1, F11, F22, F5, F9, F91
Superficies	Polito, iaculat in exspiratione, Sandblasting, etc.
Genus	Ferebantur, calor, tractata et machined
magnitudo	1/2 '' ad XLVIII "
Delivery Tempus	Intra 5-30 diebus post acceptam PROMUTUUS
Stipare	Vexillum export ligno casu vel quod postulavit
Applicatio	Petrochemical, oleum et Gas, aqua curatio, cibum et potum, et eget dispensando industrias, etc.

Pn10

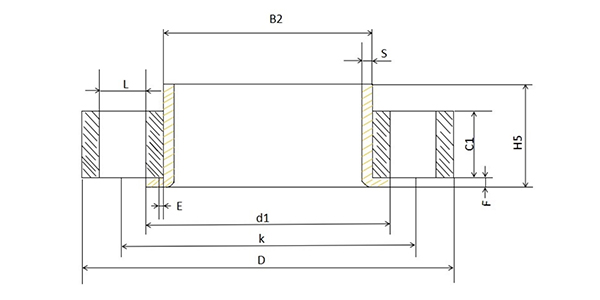

Dn	Pipe Od	D	B2	C1	K	E	L	Qtty.	Pondus
200	2198.1	340	226	24	295	6	22	8	8.87
	204.0 - 206.0	340	213	24	295	6	22	8	8.87
250	273.0	395	281	26	350	8	22	12	11.20
	254,0 - 256,0	395	264	26	350	8	22	12	11.20
300	323.9	445	333	26	400	8	22	12	12.80
	304.0 - 306.0	445	315	26	400	8	22	12	12.80
350	355.6	505	365	30	460	8	22	16	19.40
400	406.4	565	416	32	515	8	26	16	26.40
450	457.0	615	467	36	565	8	26	20	32.20
500	508.0	670	519	38	620	8	26	20	38.50
600	610.0	780	622	42	725	8	30	20	52.20

Pn16

Dn	Pipe Od	D	B2	C1	K	E	L	Qtty.	Pondus
50	60.3	165	65	20	125	5	18	4	2.52
	53-0 - 54.0	165	65	20	125	5	18	4	2.52
65	76.1	185	81	20	145	6	18	8	3.05
	68.0 - 70.0	185	75	20	145	6	18	8	3.05
80	88.9	200	94	20	160	6	18	8	3.48
	83.0 - 84.0	200	89	20	160	6	18	8	3.48
100	114.3	220	120	22	180	6	18	8	4.20
	103.0 - 106.0	220	113	22	180	6	18	8	4.20
125	139.7	250	145	22	210	6	18	8	5.21
	128,0 - 133.0	250	138	22	210	6	18	8	5.21
150	168.0	285	174	24	240	6	22	8	6.89
	153,0 - 156.0	285	164	24	240	6	22	8	6.89
200	219.1	340	226	26	295	6	22	12	9.31
250	273.0	405	281	29	355	8	26	12	13.50
300	323.9	460	333	32	410	8	26	12	18.00
350	355.6	520	365	35	470	8	26	16	27.00
400	406.4	580	416	38	525	8	30	16	34.60
450	457.0	640	467	42	585	8	30	20	44.60
500	508.0	715	519	46	650	8	33	20	62.00

Pn25

Dn	Pipe Od	D	B2	C1	K	E	L	Qtty.	Pondus
200	219.1	360	226	32	310	6	26	12	13.80
250	273.0	425	281	35	370	8	30	12	19.40
300	323.9	485	333	38	430	8	30	16	25.50

Pn40

Dn	Pipe Od	D	B2	C1	K	E	L	Qtty.	Pondus
10	17.2	90	21	14	60	3	14	4	0.60
15	21.3	95	25	14	65	3	14	4	0.65
20	26.9	105	31	16	75	4	14	4	0.91
25	33.7	115	38	16	85	4	14	4	1.08
32	42.4	140	47	18	100	5	18	4	1.77
40	48.3	150	53	18	110	5	18	4	2.02
	40.0 - 44.5	150	50	18	110	5	18	4	2.02
50	60.3	165	65	20	125	5	18	4	2.65
65	76.1	185	81	22	145	6	18	8	3.36
80	88.9	200	94	24	160	6	18	8	4.18
100	114.3	235	120	26	190	6	22	8	5.87
125	139.7	270	145	28	220	6	26	8	7.95
150	168.3	300	174	30	250	6	26	8	9.97
