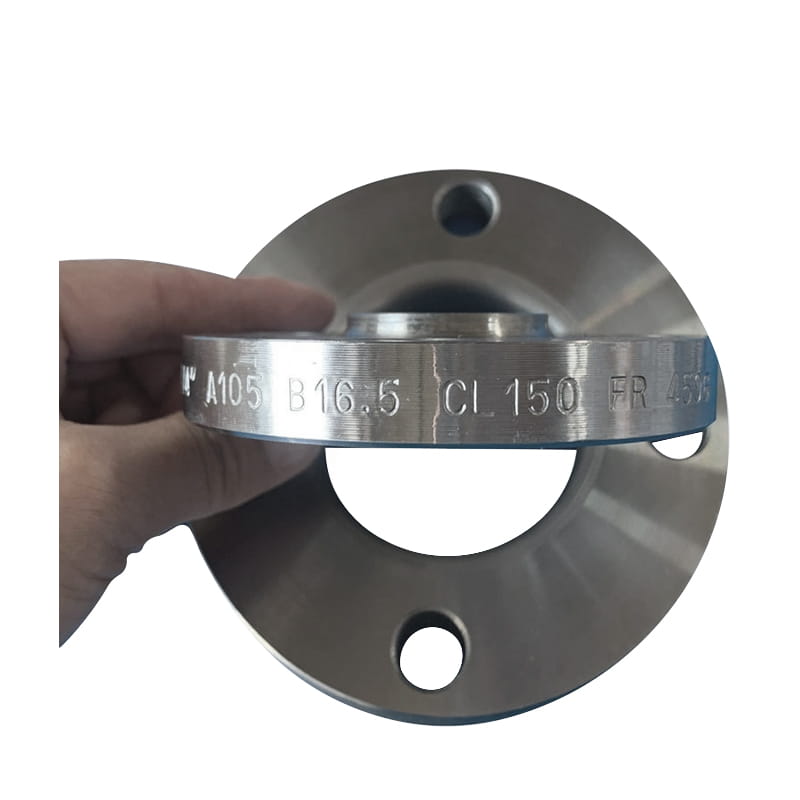

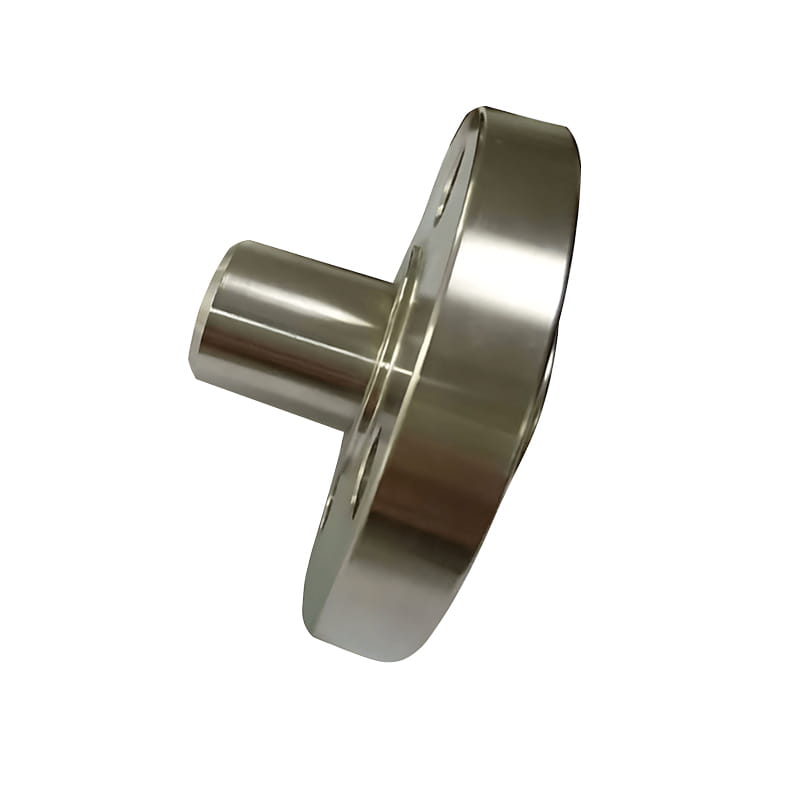

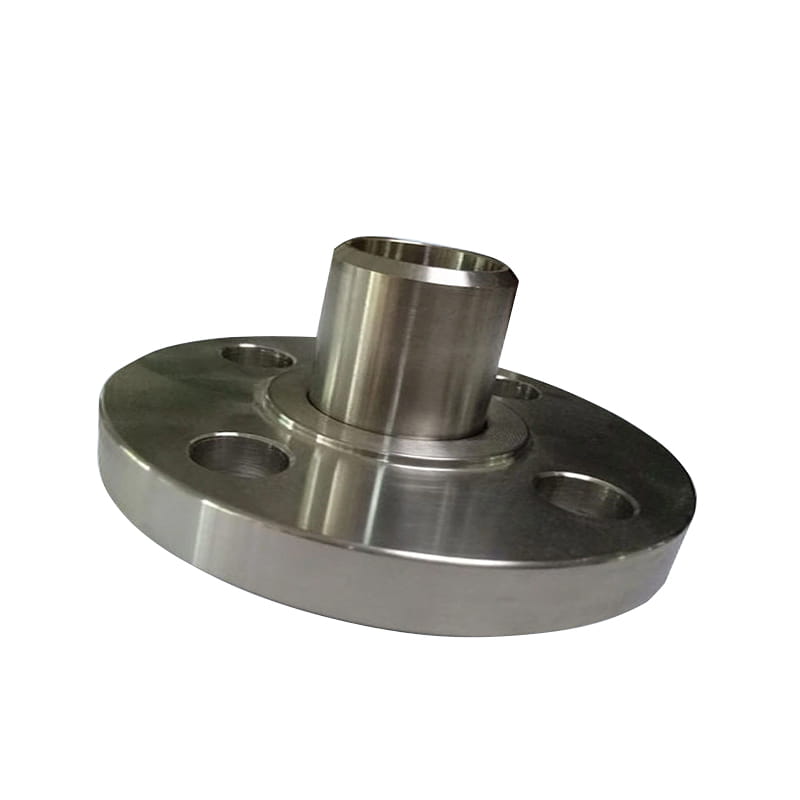

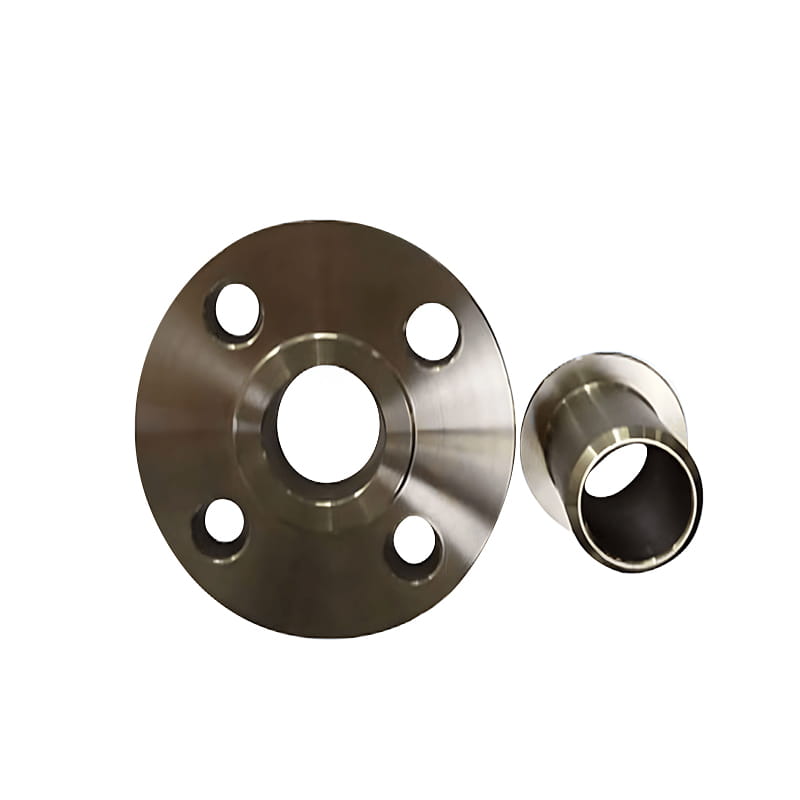

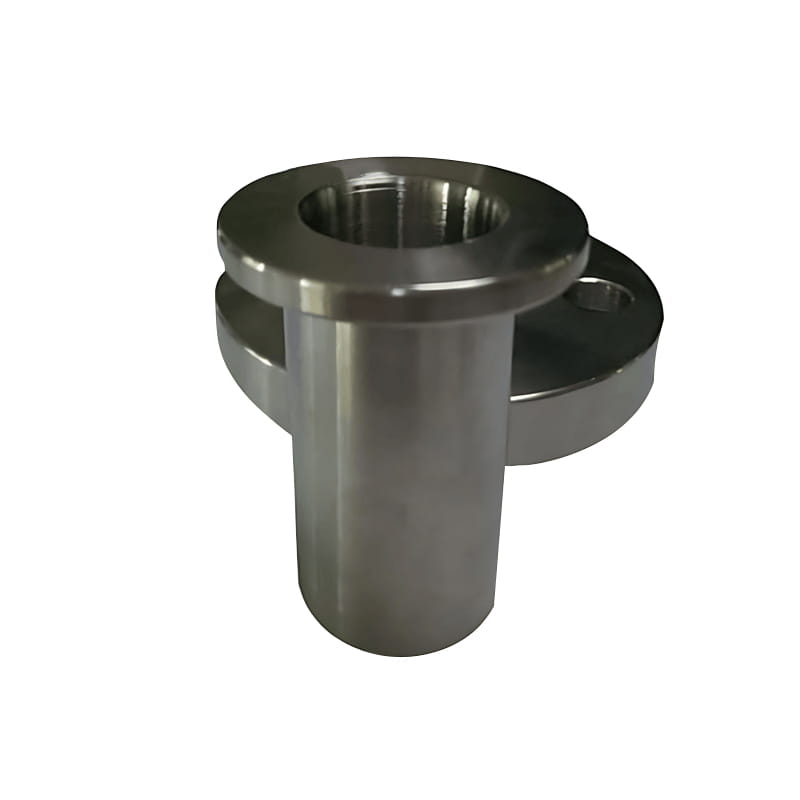

A gremium iuncturam LABIUM est duos segmentis ecclesia, cum a tecta finis, qui habet gremium-iuncturam annulum LABIUM posuit super eam. Tunc tibia tibia tibia tibia et tibia canini ad align anulum ad align cum flynge.
Tunc tepida talacibus finem tincidunt finem bistas blackeuts et alterum ad angulum ad tibiam axis. Et gremio iuncturam LABIUM et stipula finem componere duos-piece compositum gremio iuncturam coniunctionem.
Haec flanges sunt fere ad "Labi" nisi radius intersectionem flange faciem et peperit accommodare flanged portionem tecta finem. Quorum pressura-tenens facultatem est paulo melius quam quod de "labi in LABIUM". Tamen, lassitudine vita est tantum unum decimam "Welding collum LABIUM".
Gremio iuncturam flanges lapsum super tibia, et non sunt ablata vel aliter affixa est. Sunt enim genus LABIGNE Concilium communiter in humilis-pressura systems aut applications ubi crebris disassembly requiri.
Introductio
| Vexillum | ANSI B16.5, Ansi B16.36, Ansi B16.47, EN1092, Uni 2277/2278, Ansi B16.48, Jis, BS (IV) DIV, Laudate, SABS1123, GOST (XII) DCCCXX |
| Materia | Stainless Steel, Carbon Steel, Alloy Steel, Cupro Nickel (90/10, 70/30, 66/30/2/2), Hastelloy (C4, C-22, C276, B-2), Nickel (200 / 201), Monel (400 & K500), Inconel (600, 601, 625 & 825), Incolloy (800, 800H), Alloy 20, Duplex Steel, Ps 904L, Titanium (I & II) etc. |
| Superficies | Anti-rubigo oleum, pingis (nigrum, flavo), galvanizing, potestatem coating |
| Genus | Forens, cnc Processing |
| magnitudo | ½ inch - XXIV inch |
| Delivery Tempus | Intra 5-30 diebus post acceptam PROMUTUUS |
| Stipare | Plywood Pallet, Ligne Pallet, Ligne Case, etc. |
| Applicatio | Electric Power, Oleum agro, Shipbuilding, Offshore, aqua systems, naturalis Gas, pipe projects, etc. |
Classis CL LB

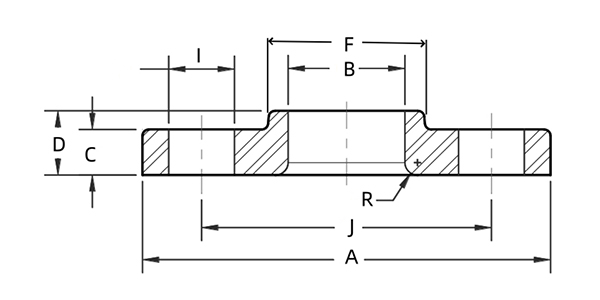

| Nominal Pipe Size | Foris Diameter | Altiore Diameter | Intus Diameter | Flange Crassities | Altiore Longitudo | Gremio Radius | Hub Diameter | Numerus CALLIDUS | FERUNDO Diameter | Diameter circlus CALLIDUS | Pondus |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg / piece |
| Obolum | 21.30 | 88.90 | 22.90 | 11.20 | 15.70 | 3.00 | 30.20 | 4 | 15.70 | 60.45 | 0.38 |
| Quadrata | 26.70 | 98.60 | 28.20 | 12.70 | 15.70 | 3.00 | 38.10 | 4 | 15.70 | 69.85 | 0.55 |
| 1 | 33.40 | 108.00 | 35.10 | 14.20 | 17.50 | 3.00 | 49.30 | 4 | 15.70 | 79.25 | 0.76 |
| I quadrata | 42.20 | 117.30 | 43.70 | 15.70 | 20.60 | 4.80 | 58.70 | 4 | 15.70 | 88.90 | 1.01 |
| I Obolum | 48.30 | 127.00 | 50.00 | 17.50 | 22.40 | 6.40 | 65.00 | 4 | 15.70 | 98.60 | 1.30 |
| 2 | 60.30 | 152.40 | 62.50 | 19.10 | 25.40 | 7.90 | 77.70 | 4 | 19.10 | 120.70 | 2.03 |
| II obolum | 73.00 | 177.80 | 75.40 | 22.40 | 28.40 | 7.90 | 90.40 | 4 | 19.10 | 139.70 | 3.25 |
| 3 | 88.90 | 190.50 | 91.40 | 23.90 | 30.20 | 9.70 | 108.00 | 4 | 19.10 | 152.40 | 3.81 |
| III obolum | 101.60 | 215.90 | 104.10 | 23.90 | 31.75 | 9.70 | 122.20 | 8 | 19.10 | 177.80 | 4.76 |
| 4 | 114.30 | 228.60 | 116.80 | 23.90 | 33.30 | 11.20 | 134.90 | 8 | 19.10 | 190.50 | 5.25 |
| 5 | 141.30 | 254.00 | 114.50 | 23.90 | 36.60 | 11.20 | 163.60 | 8 | 22.40 | 215.90 | 6.02 |
| 6 | 168.30 | 279.40 | 171.50 | 25.40 | 39.60 | 12.70 | 192.00 | 8 | 22.40 | 241.30 | 7.40 |
| 8 | 219.10 | 342.90 | 222.30 | 28.40 | 44.50 | 12.70 | 246.10 | 8 | 22.40 | 298.50 | 12.10 |
| 10 | 273.00 | 406.40 | 277.40 | 30.20 | 49.30 | 12.70 | 304.80 | 12 | 25.40 | 362.00 | 16.40 |
| 12 | 323.80 | 482.60 | 328.20 | 31.75 | 55.60 | 12.70 | 365.30 | 12 | 25.40 | 431.80 | 26.10 |
| 14 | 355.60 | 533.40 | 360.20 | 35.10 | 79.25 | 12.70 | 400.10 | 12 | 28.40 | 476.30 | 34.50 |
| 16 | 406.40 | 596.90 | 411.20 | 36.60 | 87.40 | 12.70 | 457.20 | 16 | 28.40 | 539.80 | 44.60 |
| 18 | 457.20 | 635.00 | 462.30 | 39.60 | 96.80 | 12.70 | 505.00 | 16 | 31.75 | 577.90 | 48.70 |
| 20 | 508.00 | 698.50 | 514.40 | 42.90 | 103.10 | 12.70 | 558.80 | 20 | 31.75 | 635.00 | 61.60 |
| 24 | 609.60 | 812.80 | 616.00 | 47.80 | 111.30 | 12.70 | 663.40 | 20 | 35.10 | 749.30 | 86.60 |
Genus CCC LB
| Nominal Pipe Size | Foris Diameter | Altiore Diameter | Intus Diameter | Flange Crassities | Altiore Longitudo | Gremio Radius | Hub Diameter | Numerus CALLIDUS | FERUNDO Diameter | Diameter circlus CALLIDUS | Pondus |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg / piece |
| Obolum | 21.30 | 95.20 | 22.90 | 14.20 | 22.30 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.62 |
| Quadrata | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.70 | 4 | 19.00 | 82.50 | 1.10 |
| 1 | 33.40 | 123.90 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.00 | 88.90 | 1.33 |
| I quadrata | 42.20 | 133.30 | 43.70 | 19.00 | 26.90 | 4.80 | 63.50 | 4 | 19.00 | 98.50 | 1.65 |
| I Obolum | 48.30 | 155.4 | 50.00 | 20.60 | 30.20 | 6.40 | 69.85 | 4 | 22.30 | 114.30 | 2.44 |
| 2 | 60.30 | 165.10 | 62.50 | 22.30 | 33.20 | 7.90 | 84.00 | 8 | 19.10 | 127.00 | 2.83 |
| II obolum | 73.00 | 190.50 | 75.40 | 25.40 | 38.10 | 7.90 | 100.00 | 8 | 22.30 | 149.30 | 4.25 |
| 3 | 88.90 | 209.50 | 91.40 | 28.40 | 42.90 | 9.70 | 117.30 | 8 | 22.30 | 168.10 | 5.78 |
| III obolum | 101.60 | 228.60 | 104.10 | 30.20 | 44.40 | 9.70 | 133.30 | 8 | 22.30 | 184.10 | 7.27 |
| 4 | 114.30 | 254.00 | 116.80 | 31.70 | 47.70 | 11.20 | 146.00 | 8 | 22.30 | 200.10 | 9.55 |
| 5 | 141.30 | 279.40 | 114.50 | 35.00 | 50.80 | 11.20 | 177.80 | 8 | 22.30 | 234.90 | 12.20 |
| 6 | 168.30 | 317.50 | 171.50 | 36.50 | 52.30 | 12.70 | 206.20 | 12 | 22.30 | 267.70 | 15.50 |
| 8 | 219.10 | 381.00 | 222.30 | 41.10 | 61.90 | 12.70 | 260.30 | 12 | 25.40 | 330.20 | 24.10 |
| 10 | 273.00 | 444.50 | 277.40 | 47.70 | 95.20 | 12.70 | 320.50 | 16 | 28.40 | 387.30 | 34.40 |
| 12 | 323.80 | 520.70 | 328.20 | 50.80 | 101.60 | 12.70 | 374.60 | 16 | 31.70 | 450.80 | 50.40 |
| 14 | 355.60 | 584.20 | 360.20 | 53.80 | 111.20 | 12.70 | 425.40 | 20 | 31.70 | 514.3 | 70.90 |
| 16 | 406.40 | 647.70 | 411.20 | 57.15 | 120.60 | 12.70 | 482.60 | 20 | 35.00 | 571.50 | 89.50 |
| 18 | 457.20 | 711.20 | 462.30 | 60.45 | 130.00 | 12.70 | 533.40 | 24 | 35.00 | 628.60 | 111.00 |
| 20 | 508.00 | 774.70 | 514.40 | 63.50 | 139.70 | 12.70 | 587.20 | 24 | 35.00 | 685.80 | 137.00 |
| 24 | 609.60 | 914.40 | 616.00 | 69.80 | 152.40 | 12.70 | 701.50 | 24 | 41.10 | 812.80 | 204.00 |
Classis CD LB
| Nominal Pipe Size | Foris Diameter | Altiore Diameter | Intus Diameter | Flange Crassities | Altiore Longitudo | Gremio Radius | Hub Diameter | Numerus CALLIDUS | FERUNDO Diameter | Diameter circlus CALLIDUS | Pondus |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg / piece |
| Obolum | 21.30 | 95.30 | 22.90 | 14.20 | 22.40 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.72 |
| Quadrata | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.80 | 4 | 19.10 | 82.60 | 1.25 |
| 1 | 33.40 | 124.00 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.10 | 88.90 | 1.50 |
| I quadrata | 42.20 | 133.40 | 43.70 | 20.60 | 28.40 | 4.80 | 63.50 | 4 | 19.10 | 98.60 | 2.00 |
| I Obolum | 48.30 | 155.40 | 50.00 | 22.40 | 31.75 | 6.40 | 69.85 | 4 | 22.40 | 114.30 | 2.92 |
| 2 | 60.30 | 165.10 | 62.50 | 25.40 | 36.60 | 7.90 | 84.10 | 8 | 19.10 | 127.00 | 3.55 |
| II obolum | 73.00 | 190.50 | 75.40 | 28.40 | 41.10 | 7.90 | 100.10 | 8 | 22.40 | 149.40 | 5.23 |
| 3 | 88.90 | 209.60 | 91.40 | 31.75 | 46.00 | 9.70 | 117.30 | 8 | 22.40 | 168.10 | 6.95 |
| III obolum | 101.60 | 228.60 | 104.10 | 35.10 | 49.30 | 9.70 | 133.40 | 8 | 25.40 | 184.20 | 8.78 |
| 4 | 114.30 | 254.00 | 116.80 | 35.10 | 50.80 | 11.20 | 146.10 | 8 | 25.40 | 200.20 | 10.90 |
| 5 | 141.30 | 279.40 | 114.50 | 38.10 | 53.80 | 11.20 | 177.80 | 8 | 25.40 | 235.00 | 13.70 |
| 6 | 168.30 | 317.50 | 171.50 | 41.10 | 57.15 | 12.70 | 206.20 | 12 | 25.40 | 269.70 | 18.00 |
| 8 | 219.10 | 381.00 | 222.30 | 47.80 | 68.30 | 12.70 | 260.40 | 12 | 28.40 | 330.20 | 28.30 |
| 10 | 273.00 | 445.00 | 277.40 | 53.80 | 101.60 | 12.70 | 320.50 | 16 | 31.75 | 387.40 | 38.80 |
| 12 | 323.80 | 520.70 | 328.20 | 57.15 | 108.00 | 12.70 | 374.70 | 16 | 35.10 | 450.90 | 56.60 |
| 14 | 355.60 | 584.20 | 360.2 | 60.45 | 117.30 | 12.70 | 425.50 | 20 | 35.10 | 514.40 | 78.60 |
| 16 | 406.40 | 647.70 | 411.20 | 63.50 | 127.00 | 12.70 | 482.60 | 20 | 38.10 | 571.50 | 100.00 |
| 18 | 457.20 | 711.20 | 462.30 | 66.55 | 136.70 | 12.70 | 533.40 | 24 | 38.10 | 628.70 | 122.00 |
| 20 | 508.00 | 774.70 | 514.40 | 69.85 | 146.10 | 12.70 | 587.20 | 24 | 41.10 | 685.80 | 145.00 |
| 24 | 609.60 | 914.40 | 616.00 | 76.20 | 158.80 | 12.70 | 701.50 | 24 | 47.80 | 812.80 | 217.00 |
Genus DC LB
| Nominal Pipe Size | Foris Diameter | Altiore Diameter | Intus Diameter | Flange Crassities | Altiore Longitudo | Gremio Radius | Hub Diameter | Numerus CALLIDUS | FERUNDO Diameter | Diameter circlus CALLIDUS | Pondus |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg / piece |
| Obolum | 21.30 | 95.30 | 22.90 | 14.20 | 22.40 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.72 |
| Quadrata | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.80 | 4 | 19.10 | 82.60 | 1.25 |
| 1 | 33.40 | 124.00 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.10 | 88.90 | 1.50 |
| I quadrata | 42.20 | 133.40 | 43.70 | 20.60 | 28.40 | 4.80 | 63.50 | 4 | 19.10 | 98.60 | 2.00 |
| I ½ | 48.30 | 155.4 | 50.00 | 22.40 | 31.75 | 6.40 | 69.85 | 4 | 22.40 | 114.30 | 2.92 |
| 2 | 60.30 | 165.10 | 62.50 | 25.40 | 36.60 | 7.90 | 84.10 | 8 | 19.10 | 127.00 | 3.55 |
| II obolum | 73.00 | 190.50 | 75.40 | 28.40 | 41.10 | 7.90 | 100.10 | 8 | 22.40 | 149.40 | 5.23 |
| 3 | 88.90 | 209.60 | 91.40 | 31.75 | 46.00 | 9.70 | 117.30 | 8 | 22.40 | 168.10 | 6.95 |
| III obolum | 101.60 | 228.60 | 104.10 | 35.10 | 49.30 | 9.70 | 133.40 | 8 | 25.40 | 184.20 | 8.78 |
| 4 | 114.30 | 273.10 | 116.80 | 38.10 | 53.80 | 11.20 | 152.40 | 8 | 25.40 | 215.9 | 14.40 |
| 5 | 141.30 | 330.20 | 114.50 | 44.50 | 60.45 | 11.20 | 189.00 | 8 | 28.40 | 266.70 | 24.30 |
| 6 | 168.30 | 355.60 | 171.50 | 47.80 | 66.55 | 12.70 | 222.30 | 12 | 28.40 | 292.10 | 28.50 |
| 8 | 219.10 | 419.10 | 222.30 | 55.60 | 76.20 | 12.70 | 273.10 | 12 | 31.75 | 349.30 | 43.10 |
| 10 | 273.00 | 508.00 | 277.40 | 63.50 | 111.30 | 12.70 | 342.90 | 16 | 35.10 | 431.80 | 70.50 |
| 12 | 323.80 | 558.80 | 328.20 | 66.55 | 117.30 | 12.70 | 400.10 | 20 | 35.10 | 489.00 | 86.10 |
| 14 | 355.60 | 603.30 | 360.20 | 69.85 | 127.00 | 12.70 | 431.80 | 20 | 38.10 | 527.10 | 100.00 |
| 16 | 406.40 | 685.80 | 411.20 | 76.20 | 139.70 | 12.70 | 495.30 | 20 | 41.10 | 603.30 | 145.00 |
| 18 | 457.20 | 743.00 | 462.30 | 82.60 | 152.40 | 12.70 | 546.10 | 20 | 44.50 | 654.10 | 177.00 |
| 20 | 508.00 | 812.80 | 514.40 | 88.90 | 165.10 | 12.70 | 609.60 | 24 | 44.50 | 723.90 | 225.00 |
| 24 | 609.60 | 939.80 | 616.00 | 101.60 | 184.20 | 12.70 | 717.60 | 24 | 50.80 | 838.20 | 318.00 |
Genus CM LB
| Nominal Pipe Size | Foris Diameter | Altiore Diameter | Intus Diameter | Flange Crassities | Altiore Longitudo | Gremio Radius | Hub Diameter | Numerus CALLIDUS | FERUNDO Diameter | Diameter circlus CALLIDUS | Pondus |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg / piece |
| ½ | 21.30 | 120.60 | 22.90 | 22.30 | 31.70 | 3.00 | 38.10 | 4 | 22.30 | 82.50 | 1.71 |
| Quadrata | 26.70 | 130.00 | 28.20 | 25.40 | 35.00 | 3.00 | 44.40 | 4 | 22.30 | 88.90 | 2.30 |
| 1 | 33.40 | 149.30 | 35.10 | 28.40 | 41.10 | 3.00 | 52.30 | 4 | 25.40 | 101.60 | 3.40 |
| I quadrata | 42.20 | 158.70 | 43.70 | 28.40 | 41.10 | 4.80 | 63.50 | 4 | 25.40 | 111.20 | 3.85 |
| I ½ | 48.30 | 177.80 | 50.00 | 31.70 | 44.40 | 6.40 | 69.85 | 4 | 28.40 | 123.90 | 5.28 |
| 2 | 60.30 | 215.90 | 62.50 | 38.10 | 57.15 | 7.90 | 104.60 | 8 | 25.40 | 165.10 | 9.78 |
| II obolum | 73.00 | 244.30 | 75.40 | 41.10 | 63.50 | 7.90 | 123.90 | 8 | 28.40 | 190.50 | 13.60 |
| 3 | 88.90 | 241.30 | 91.40 | 38.10 | 53.80 | 9.70 | 127.00 | 8 | 25.40 | 190.50 | 11.30 |
| 4 | 114.30 | 292.10 | 116.80 | 44.40 | 69.85 | 11.20 | 158.70 | 8 | 31.70 | 234.90 | 19.20 |
| 5 | 141.30 | 349.20 | 114.50 | 50.80 | 79.25 | 11.20 | 190.50 | 8 | 35.00 | 279.40 | 31.20 |
| 6 | 168.30 | 381.00 | 171.50 | 55.60 | 85.80 | 12.70 | 234.90 | 12 | 31.70 | 317.50 | 40.50 |
| 8 | 219.10 | 469.90 | 222.30 | 63.50 | 114.30 | 12.70 | 298.40 | 12 | 38.10 | 393.70 | 71.50 |
| 10 | 273.00 | 546.10 | 277.40 | 69.85 | 127.00 | 12.70 | 368.30 | 16 | 38.10 | 469.90 | 104.00 |
| 12 | 323.80 | 609.60 | 328.20 | 79.25 | 142.70 | 12.70 | 419.10 | 20 | 38.10 | 533.40 | 139.00 |
| 14 | 355.60 | 641.30 | 360.20 | 85.80 | 155.40 | 12.70 | 450.80 | 20 | 41.10 | 558.80 | 161.00 |
| 16 | 406.40 | 704.80 | 411.20 | 88.90 | 165.10 | 12.70 | 508.00 | 20 | 44.40 | 615.90 | 194.00 |
| 18 | 457.20 | 787.40 | 462.30 | 101.60 | 190.50 | 12.70 | 565.10 | 20 | 50.80 | 685.80 | 267.00 |
| 20 | 508.00 | 857.20 | 514.40 | 107.90 | 209.50 | 12.70 | 622.30 | 20 | 53.80 | 749.30 | 334.00 |
| 24 | 609.60 | 1041.40 | 616.00 | 139.70 | 266.70 | 12.70 | 749.30 | 20 | 66.55 | 901.70 | 618.00 |
Classis MD LB
| Nominal Pipe Size | Foris Diameter | Altiore Diameter | Intus Diameter | Flange Crassities | Altiore Longitudo | Gremio Radius | Hub Diameter | Numerus CALLIDUS | FERUNDO Diameter | Diameter circlus CALLIDUS | Pondus |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg / piece |
| ½ | 21.30 | 120.60 | 22.90 | 22.30 | 31.70 | 3.00 | 38.10 | 4 | 22.30 | 82.50 | 1.71 |
| Quadrata | 26.70 | 130.00 | 28.20 | 25.40 | 35.00 | 3.00 | 44.40 | 4 | 22.30 | 88.90 | 2.30 |
| 1 | 33.40 | 149.30 | 35.10 | 28.40 | 41.10 | 3.00 | 52.30 | 4 | 25.40 | 101.60 | 3.40 |
| I quadrata | 42.20 | 158.70 | 43.70 | 28.40 | 41.10 | 4.80 | 63.50 | 4 | 25.40 | 111.20 | 3.85 |
| I ½ | 48.30 | 177.80 | 50.00 | 31.70 | 44.40 | 6.40 | 69.85 | 4 | 28.40 | 123.90 | 5.28 |
| 2 | 60.30 | 215.90 | 62.50 | 38.10 | 57.15 | 7.90 | 104.60 | 8 | 25.40 | 165.10 | 9.78 |
| II obolum | 73.00 | 244.30 | 75.40 | 41.10 | 63.50 | 7.90 | 123.90 | 8 | 28.40 | 190.50 | 13.60 |
| 3 | 88.90 | 266.70 | 91.40 | 47.70 | 73.15 | 9.70 | 133.30 | 8 | 31.70 | 203.2 | 17.80 |
| 4 | 114.30 | 311.10 | 116.80 | 53.80 | 90.40 | 11.20 | 162.00 | 8 | 35.00 | 241.30 | 27.50 |
| 5 | 141.30 | 374.60 | 114.50 | 73.15 | 104.60 | 11.20 | 196.80 | 8 | 41.10 | 292.10 | 51.50 |
| 6 | 168.30 | 399.70 | 171.50 | 82.50 | 119.10 | 12.70 | 228.60 | 12 | 38.10 | 317.50 | 62.00 |
| 8 | 219.10 | 482.6 | 222.30 | 91.90 | 142.70 | 12.70 | 292.10 | 12 | 44.40 | 393.70 | 105.00 |
| 10 | 273.00 | 584.20 | 277.40 | 107.90 | 177.80 | 12.70 | 368.30 | 12 | 50.80 | 482.60 | 179.00 |
| 12 | 323.80 | 673.10 | 328.20 | 123.90 | 218.90 | 12.70 | 450.80 | 16 | 53.80 | 571.50 | 269.00 |
| 14 | 355.60 | 749.30 | 360.20 | 133.30 | 241.30 | 12.70 | 495.30 | 16 | 60.45 | 635.00 | 365.00 |
| 16 | 406.40 | 825.50 | 411.20 | 146.00 | 260.30 | 12.70 | 552.40 | 16 | 66.55 | 704.80 | 459.00 |
| 18 | 457.20 | 914.40 | 462.30 | 162.00 | 276.30 | 12.70 | 596.90 | 16 | 73.15 | 774.70 | 598.00 |
| 20 | 508.00 | 984.20 | 514.40 | 177.80 | 292.10 | 12.70 | 641.30 | 16 | 79.25 | 831.80 | 712.00 |
| 24 | 609.60 | 1168.40 | 616.00 | 203.20 | 330.20 | 12.70 | 726.00 | 16 | 91.90 | 990.60 | 1090.00 |
Genus MMD LB
| Nominal Pipe Size | Foris Diameter | Altiore Diameter | Intus Diameter | Flange Crassities | Altiore Longitudo | Gremio Radius | Hub Diameter | Numerus CALLIDUS | FERUNDO Diameter | Diameter circlus CALLIDUS | Pondus |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg / piece |
| ½ | 21.30 | 133.40 | 22.90 | 30.20 | 39.60 | 3.00 | 42.90 | 4 | 22.40 | 88.90 | 2.92 |
| Quadrata | 26.70 | 139.70 | 28.20 | 31.75 | 42.90 | 3.00 | 50.80 | 4 | 22.40 | 95.30 | 3.40 |
| 1 | 33.40 | 158.80 | 35.10 | 35.10 | 47.80 | 3.00 | 57.15 | 4 | 25.40 | 108.00 | 4.77 |
| I quadrata | 42.20 | 184.20 | 43.70 | 38.10 | 52.30 | 4.80 | 73.15 | 4 | 28.40 | 130.00 | 7.08 |
| I ½ | 48.30 | 203.20 | 50.00 | 44.50 | 60.45 | 6.40 | 79.25 | 4 | 31.75 | 146.10 | 9.93 |
| 2 | 60.30 | 235.00 | 62.50 | 50.80 | 69.85 | 7.90 | 95.30 | 8 | 28.40 | 171.50 | 14.70 |
| II ½ | 73.00 | 266.70 | 75.40 | 57.15 | 79.25 | 7.90 | 114.30 | 8 | 31.75 | 196.90 | 21.30 |
| 3 | 88.90 | 304.80 | 91.40 | 66.55 | 91.90 | 9.70 | 133.40 | 8 | 35.10 | 228.60 | 32.30 |
| 4 | 114.30 | 355.60 | 116.80 | 76.20 | 108.00 | 11.20 | 165.10 | 8 | 41.10 | 273.10 | 52.50 |
| 5 | 141.30 | 419.10 | 114.50 | 91.90 | 130.00 | 11.20 | 203.20 | 8 | 47.80 | 323.90 | 82.60 |
| 6 | 168.30 | 482.60 | 171.50 | 108.00 | 152.40 | 12.70 | 235.00 | 8 | 53.80 | 368.30 | 127.00 |
| 8 | 219.10 | 552.50 | 222.30 | 127.00 | 177.80 | 12.70 | 304.80 | 12 | 53.80 | 438.20 | 186.00 |
| 10 | 273.00 | 367.10 | 277.40 | 165.10 | 228.60 | 12.70 | 374.70 | 12 | 66.55 | 539.80 | 352.00 |
| 12 | 323.80 | 762.00 | 328.20 | 184.20 | 254.00 | 12.70 | 441.50 | 12 | 73.15 | 619.30 | 501.00 |
Condita in MMVII et ad Longyou oeconomica progressionem zonam, Zhejiang provincia, in MMXXII. Covers aream 130,000 quadratum metris, magis quam XXX productio lineas, CCC operarios, XX R & D populus, XXX inspectionem et annua, XX R & D populus, XXX inspectionem et annua output de 50.000 talentorum XXX.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (Abs): British Register of Shipping (LR), Deutsche Veritas (GL), Bureau veritas Society (BV), Det Norske (DNV), Coreanica Register of Shipping (KR) officina certification.
Pelagus products includere immaculatam ferro, pipe caerimonias, flanges, valvulae, etc., quae late in PETROLEUM, chemical industria, nuclei industria, urget, shippuilding, nuclei, cibo, saltu, electrica, et alimentis, mechanica apparatibus, et aliis agris. In comitatu adhaeret ad corporatum tenet de "qualis est superessendam, fama pro progressionem" et animo serves omnis mos creare win-vincere situ.
Ferro materia critica in variis industriis est, cum diversis generibus applicationum specificarum obsonat. Inter hos, Ferro mitis et Carbon Ferro duae formae frequentissimae sunt. Quamvis utrumque ...
VisumNos delectari ad reflectunt in prospere participationem in MMXXV Xinjiang PETROLEUM et eget industria turpis, tenuit a September 4-6 ad Xinjiang Internationalis Convention et Exhibitionem Center. N...
VisumIntroductio Aliquam ferro pressura vas tubos sunt discrimine components in industries ubi fluidorum aut vapores debet repono, transferri, aut processionaliter sub alto pressura. Ex eget plantis ...
VisumNos te numquam participes vestri email oratio et vos
Potest opt e aliquo tempore promittimus.
Specialiter in productionem in immaculatam
Steel Pipe
No.188 Binkang Road, xixing via, Binjiang District, Hangzhou urbem, Zhejiang Province, Sina
LXXXVI 18969027607
sales@xhxmat.com
Copyright © Xinhang Special Material Co., Ltd. Hangzhou genere Rights Reserved.
