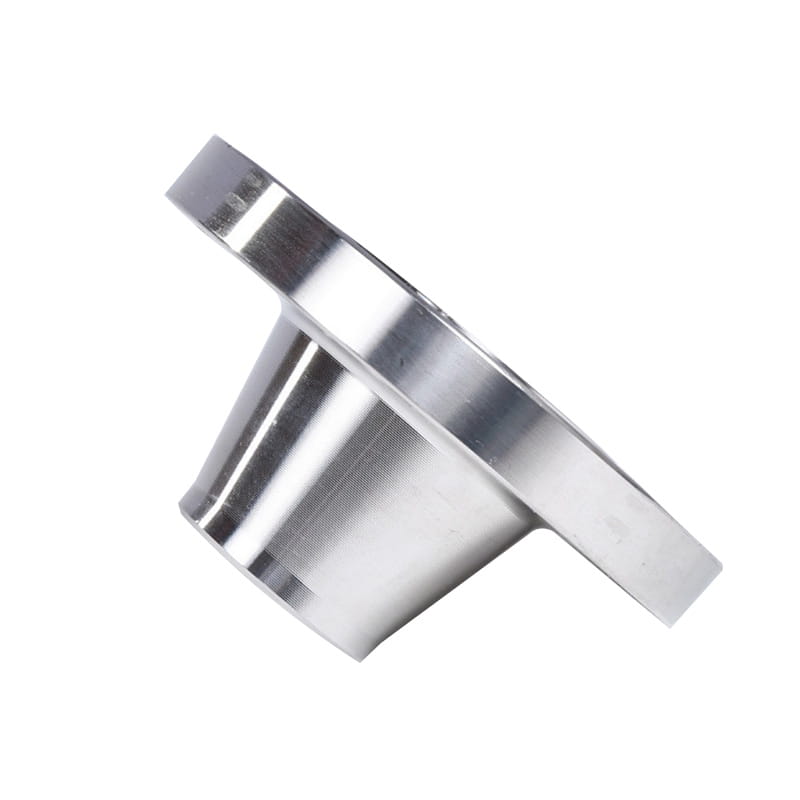

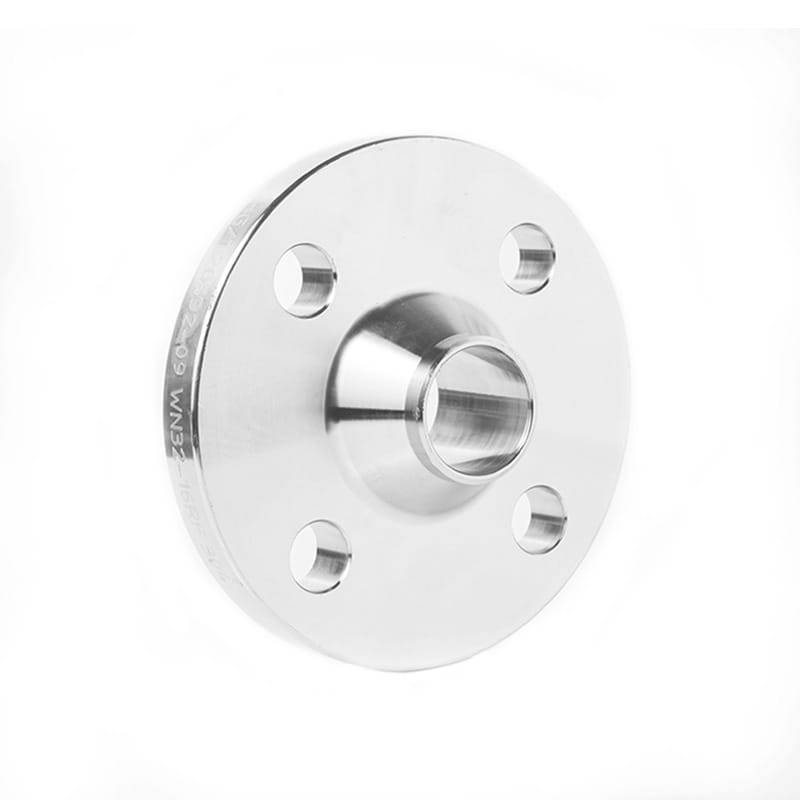

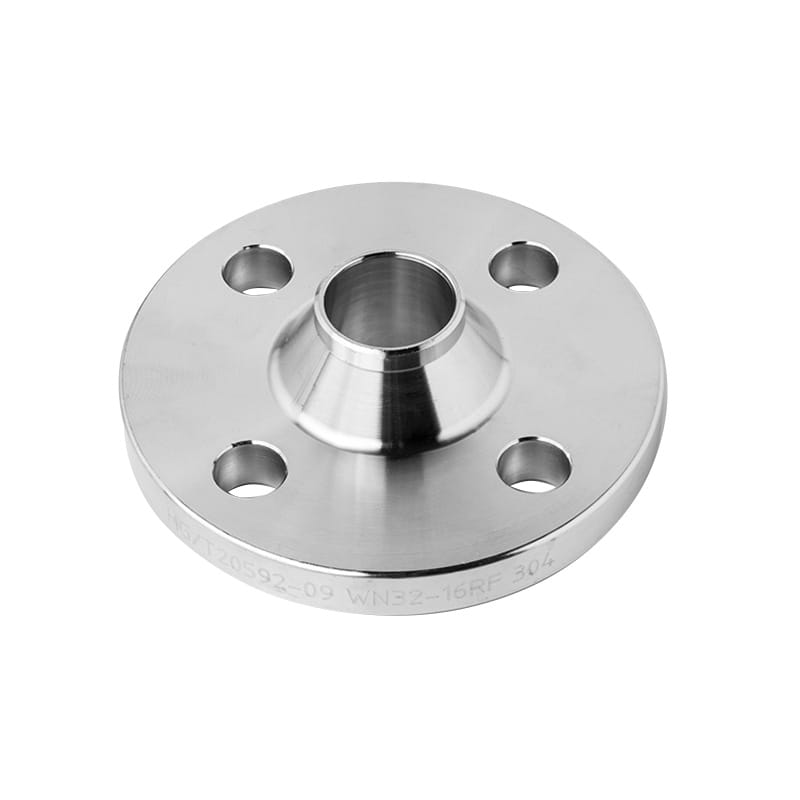

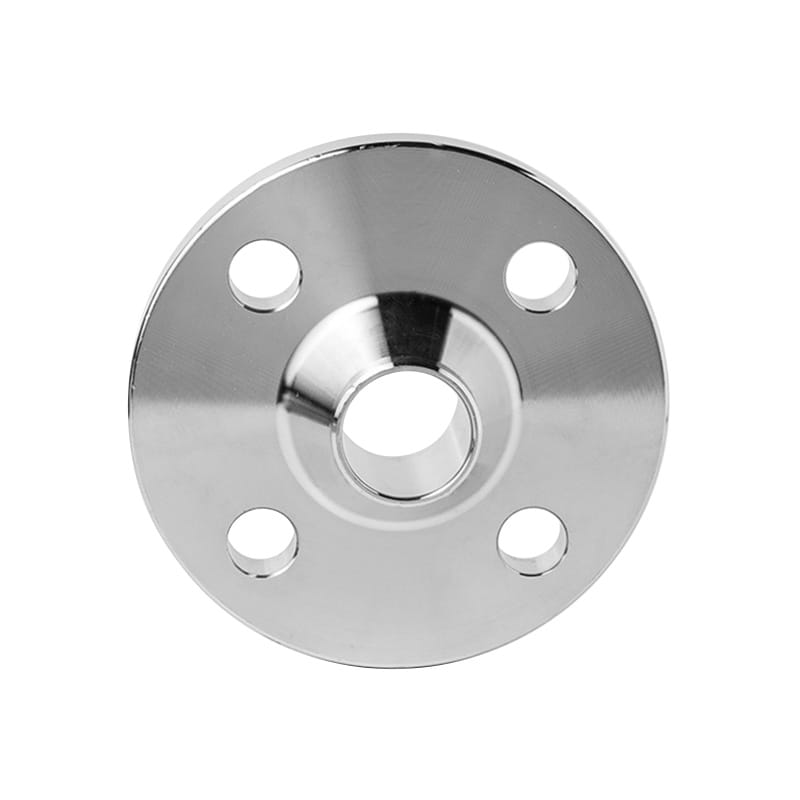

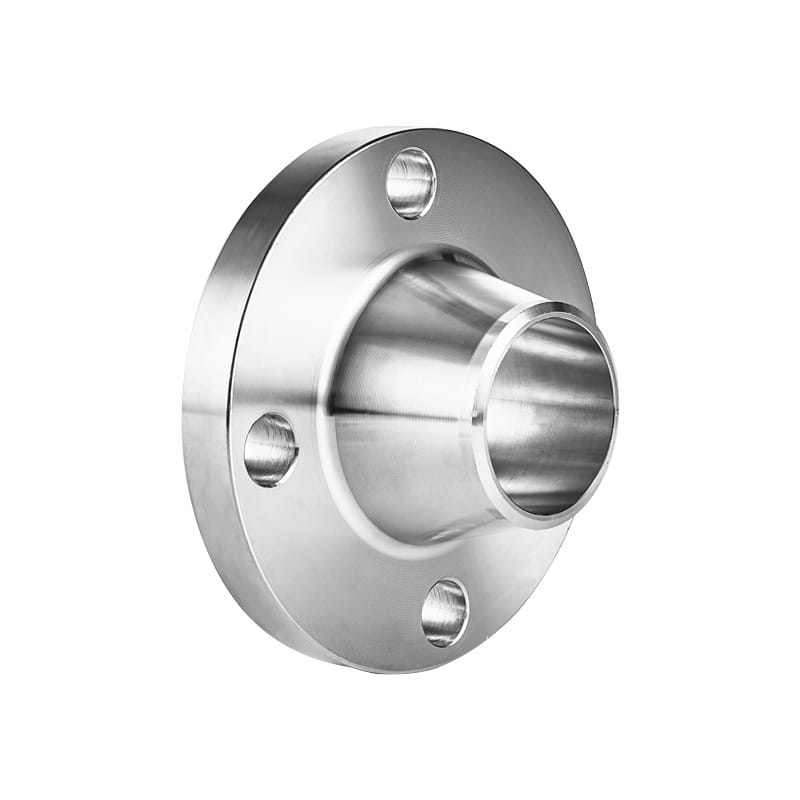

Weld collum Flanges sunt popularis LABIUM genus. Comprehendo longa cone centrum et inaurabis cum numerosis foramina, adiuvat ad supplementum et providere temperatus / pressura resistentia et securus ad coniungere ad LABIUM ad fulmen LABIUM.
Et tapered centrum est a significant pluma de Welding collum LABIUM. Et collum proten et finem habent welds. LABIUM potest directe Weld Pipeline providere princeps et secundum quid naturae formae. This type of connection provides a gradual distribution of pressure forces of the transition along the stainless tubing to the bottom of the flange, which helps to withstand some impacts used in higher-pressure and higher-temperature working environments.
Haec genera flanges saepe in altus-pressura fistulas aut ea quae opus est pressura ad distributed in nexu ita ut non imaginem aut compromise et non. Non potest esse late in key areas ut oleum, naturalis Gas et Petrochemical industria.
Introductio
| Vexillum | ANSI / ASME B16.5, BS4505, Gost12820-80, Laudate, UNI, EN1092-1, JIS / KS etc. |
| Materia | Carbon Steel: Q235A, Q235B, Q345BC22.8, ASTM A105, SS400 |
| Superficies | Antirust oleum, nigrum pingere, flavo pingunt, galvanized |
| Genus | Machined a cnc |
| magnitudo | DN10, DN2000 |
| Delivery Tempus | In 5-30 diebus |
| Stipare | Ligne casus, plywood casibus, pallets, vel secundum customers, requisita |
| Applicatio | Late in oleum, Naturalis Gas, Petrochemical, et alia agri |

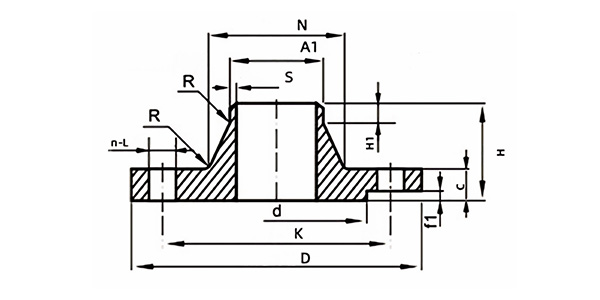

| Dn | A | B | D | K | L | n | Th, | C | N | S > | H1 | R | H | |
|
|
|
|
|
|
|
|
|
| A | B |
|
|
|
|
| 10 | 17.2 | 14 | 90 | 60 | 14 | 4 | M12 | 16 | 28 | 28 | 1.8 | 6 | 4 | 35 |
| 15 | 21.3 | 18 | 95 | 65 | 14 | 4 | M12 | 16 | 32 | 32 | 2.0 | 6 | 4 | 38 |
| 20 | 26.9 | 25 | 105 | 75 | 14 | 4 | M12 | 18 | 40 | 40 | 2.3 | 6 | 4 | 40 |
| 25 | 33.7 | 32 | 115 | 85 | 14 | 4 | M12 | 18 | 46 | 46 | 2.6 | 6 | 4 | 40 |
| 32 | 42.4 | 38 | 140 | 100 | 18 | 4 | M16 | 18 | 56 | 56 | 2.6 | 6 | 6 | 42 |
| 40 | 48.3 | 45 | 150 | 110 | 18 | 4 | M16 | 18 | 64 | 64 | 2.6 | 7 | 6 | 45 |
| 50 | 60.3 | 57 | 165 | 125 | 18 | 4 | M16 | 18 | 74 | 74 | 2.9 | 8 | 6 | 45 |
| 65 | 76.1 | 76 | 185 | 145 | 18 | 8 | M16 | 18 | 92 | 92 | 2.9 | 10 | 6 | 45 |
| 80 | 88.9 | 89 | 200 | 160 | 18 | 8 | M16 | 20 | 105 | 105 | 3.2 | 10 | 6 | 50 |
| 100 | 114.3 | 108 | 220 | 180 | 18 | 8 | M16 | 20 | 131 | 131 | 3.6 | 12 | 8 | 52 |
| 125 | 139.7 | 133 | 250 | 210 | 18 | 8 | M16 | 22 | 156 | 156 | 4.0 | 12 | 8 | 56 |
| 150 | 168.3 | 159 | 285 | 240 | 22 | 8 | M20 | 22 | 184 | 184 | 4.5 | 12 | 10 | 56 |
| 200 | 219.1 | 219 | 340 | 295 | 22 | 12 | M20 | 24 | 235 | 234 | 6.3 | 16 | 10 | 62 |
| 250 | 273 | 273 | 405 | 355 | 26 | 12 | M24 | 26 | 292 | 292 | 6.3 | 16 | 12 | 70 |
| 300 | 323.9 | 325 | 460 | 410 | 26 | 12 | M24 | 28 | 344 | 344 | 7.1 | 16 | 12 | 78 |
| 350 | 355.6 | 377 | 520 | 470 | 26 | 16 | M24 | 30 | 390 | 410 | 8.0 | 16 | 12 | 82 |
| 400 | 406.4 | 426 | 580 | 525 | 30 | 16 | M27 | 32 | 445 | 464 | 8.0 | 16 | 12 | 85 |
| 450 | 457 | 480 | 640 | 585 | 30 | 20 | M27 | 40 | 490 | 512 | 8.0 | 16 | 12 | 87 |
| 500 | 508 | 530 | 715 | 650 | 33 | 20 | M30 | 44 | 548 | 578 | 8.0 | 16 | 12 | 90 |
| 600 | 610 | 630 | 840 | 770 | 36 | 20 | M33 | 54 | 652 | 670 | 8.8 | 18 | 12 | 95 |
| 700 | 711 | 720 | 910 | 840 | 36 | 24 | M33 | 36 | 755 | 759 | 8.8 | 18 | 12 | 100 |
| 800 | 813 | 820 | 1025 | 950 | 39 | 24 | M36 * III | 38 | 855 | 855 | 10.0 | 20 | 12 | 105 |
| 900 | 914 | 920 | 1125 | 1050 | 39 | 28 | M36 * III | 40 | 955 | 954 | 10.0 | 20 | 12 | 110 |
| 1000 | 1016 | 1020 | 1255 | 1170 | 42 | 28 | M39 * III | 42 | 1058 | 1060 | 10.0 | 22 | 16 | 120 |
| 1200 | 1219 | 1220 | 1485 | 1390 | 48 | 32 | M45 * III | 48 | 1262 | 1260 | 12.5 | 30 | 16 | 130 |
| 1400 | 1422 | 1420 | 1685 | 1590 | 48 | 36 | M45 * III | 52 | 1456 | 1456 | 14.2 | 30 | 16 | 145 |
| 1600 | 1626 | 1620 | 1930 | 1820 | 56 | 40 | M52 * III | 58 | 1668 | 1668 | 16 | 35 | 16 | 160 |
| 1800 | 1829 | 1820 | 2130 | 2020 | 56 | 44 | M52 * III | 62 | 1870 | 1870 | 17.5 | 35 | 16 | 170 |
| 2000 | 2032 | 2020 | 2345 | 2230 | 62 | 48 | M56 * III | 66 | 2070 | 2072 | 20 | 40 | 16 | 180 |
