Et pipe angulus de CLXXX ° immaculatam ferro cubito CLXXX gradus, etiam quae "U-informibus cubito". In pipe systems, CLXXX-gradus immaculatam ferro cubito potest esse ad mutare directionem de tibia, et U-informibus pipe potest formari per duos CLXXX-gradus.
Communiter materiae sunt CCCIV immaculatam ferro et CCCXVI immaculatam ferro, quae apta humilis-pressura, medium-pressura, et summus pressura Pipeline Systems. Diversis materiae potest obviam diversis applicationem necessitates. Material lectio pendeat in environment et ipsa usum requisita de cubito.
Et modi de nexu cum Pipes includit recta Welding (communiter modum) LABIUM nexu, fila linitam nexu, ostium tabernaculi, etc.
Material Electio, cubito vestibulum processus et qualis inspectionem sunt momenti components processus principium immaculatam ferro CLXXX-gradu cubitus apparatu. Et commoda et incommoda cuiusque materialium est, rationabile cubitus vestibulum, qualified inspectionem potest curare qualitas cubiti, ita faciens Pipeline et apparatu habere altiorem perficientur et salus.
Introductio
| Item | Aliquam Steel CLXXX ° Elbows |
| Vexillum | Ansi B16.9, En10253-4, Din MMDCV, GOST 17375-2001, JIS B2313, MSS SP LXXV, etc. |
| Material grades | 304, 304L, 304/304L, 304H, 316, 316L, 316/316L, 321, 321H, 310S, 2205, S31803, 904L, etc |
| Superficies | Offertorium, Sandblasting vel Pickling Superficies |
| Genus | FORMATUS |
| magnitudo | I / 2-30 " |
| Delivery Tempus | Intra 5-30 diebus post acceptam PROMUTUUS |
| Stipare | Lobortis in ferro, mari-valet stipare |
| Applicatio | PETROLEUM / AEROSPACE / Metallurgy / Semiconductor / Power Station etc. |

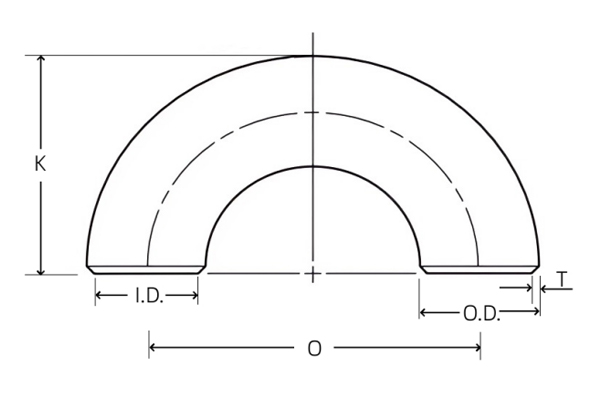

Asme B16.9 Long Radius cubito
Unit: inch
| Nomini | Nomini | Centro centro | Ad faciem | Vexillum | Extra fortis | ||||
| Intus diameter | Muro crassitudine | Proxime. Pondus | Intus diameter | Muro crassitudine | Proxime. Pondus | ||||
| NPS (in) | O.D. (In) | O (in) | K (in) | I.D. (in) | T (in) | (LB) | I.D. (In) | T (in) | (LB) |
| 1/2 | 0.840 | 0.300 | 1.88 | 0.622 | 0.109 | 0.25 | 0.546 | 0.147 | 0.45 |
| 3/4 | 1.050 | 2.250 | 1.69 | 0.824 | 0.113 | 0.33 | 0.742 | 0.154 | 0.45 |
| 1 | 1.315 | 3.000 | 2.19 | 1.049 | 0.133 | 0.75 | 0.957 | 0.179 | 1.00 |
| I 1/4 | 1.660 | 3.750 | 2.75 | 1.380 | 0.140 | 1.00 | 1.278 | 0.191 | 1.50 |
| I 1/2 | 1.900 | 4.500 | 3.25 | 1.610 | 0.145 | 1.50 | 1.500 | 0.200 | 2.00 |
| 2 | 2.375 | 6.000 | 4.19 | 2.067 | 0.154 | 3.00 | 1.939 | 0.213 | 4.40 |
| II 1/2 | 2.875 | 7.500 | 5.19 | 2.469 | 0.203 | 6.00 | 2.323 | 0.276 | 7.50 |
| 3 | 3.500 | 9.000 | 6.25 | 3.068 | 0.216 | 9.00 | 2.900 | 0.300 | 12.00 |
| III 1/2 | 4.000 | 10.500 | 7.25 | 3.548 | 0.226 | 12.50 | 3.364 | 0.318 | 17.00 |
| 4 | 4.500 | 12.000 | 8.25 | 4.026 | 0.237 | 17.00 | 3.826 | 0.337 | 23.50 |
| 5 | 5.563 | 15.000 | 10.31 | 5.047 | 0.258 | 28.50 | 4.813 | 0.375 | 40.00 |
| 6 | 6.625 | 18.000 | 12.31 | 6.065 | 0.280 | 46.00 | 5.761 | 0.432 | 67.00 |
| 8 | 8.625 | 24.000 | 16.31 | 7.981 | 0.322 | 90.00 | 7.625 | 0.500 | 138.00 |
| 10 | 10.750 | 30.000 | 20.38 | 10.02 | 0.365 | 156.00 | 9.750 | 0.500 | 215.00 |
| 12 | 12.750 | 36.000 | 24.38 | 12.00 | 0.375 | 236.00 | 11.750 | 0.500 | 300.00 |
| 14 | 14.000 | 42.000 | 28.00 | 13.25 | 0.395 | 294.00 | 13.000 | 0.500 | 376.00 |
| 16 | 16.000 | 48.000 | 32.00 | 15.25 | 0.375 | 404.00 | 15.000 | 0.500 | 524.00 |
| 18 | 18.000 | 54.000 | 36.00 | 17.25 | 0.375 | 512.00 | 17.000 | 0.500 | 676.00 |
| 20 | 20.000 | 60.000 | 40.00 | 19.25 | 0.375 | 617.00 | 19.00 | 0.500 | 824.00 |
| 22 | 22.000 | 66.000 | 44.00 | 21.25 | 0.375 | 787.00 | 21.000 | 0.5000 | 1040.00 |
| 24 | 24.000 | 72.000 | 48.00 | 23.25 | 0.375 | 890.00 | 23.00 | 0.500 | 1183.00 |
| 26 | 26.000 | 78.000 | 52.00 | 25.25 | 0.375 | 1100.00 | 25.00 | 0.500 | 1458.00 |
| 30 | 30.000 | 90.000 | 60.00 | 29.25 | 0.375 | 1441.00 | 29.00 | 0.500 | 1910.00 |
Condita in MMVII et ad Longyou oeconomica progressionem zonam, Zhejiang provincia, in MMXXII. Covers aream 130,000 quadratum metris, magis quam XXX productio lineas, CCC operarios, XX R & D populus, XXX inspectionem et annua, XX R & D populus, XXX inspectionem et annua output de 50.000 talentorum XXX.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (Abs): British Register of Shipping (LR), Deutsche Veritas (GL), Bureau veritas Society (BV), Det Norske (DNV), Coreanica Register of Shipping (KR) officina certification.
Pelagus products includere immaculatam ferro, pipe caerimonias, flanges, valvulae, etc., quae late in PETROLEUM, chemical industria, nuclei industria, urget, shippuilding, nuclei, cibo, saltu, electrica, et alimentis, mechanica apparatibus, et aliis agris. In comitatu adhaeret ad corporatum tenet de "qualis est superessendam, fama pro progressionem" et animo serves omnis mos creare win-vincere situ.
