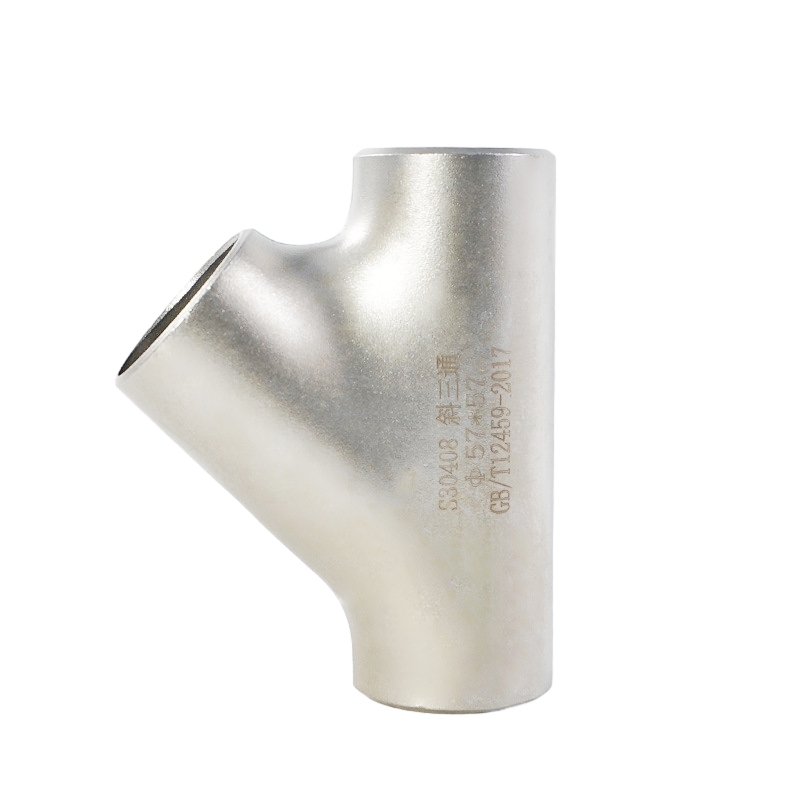

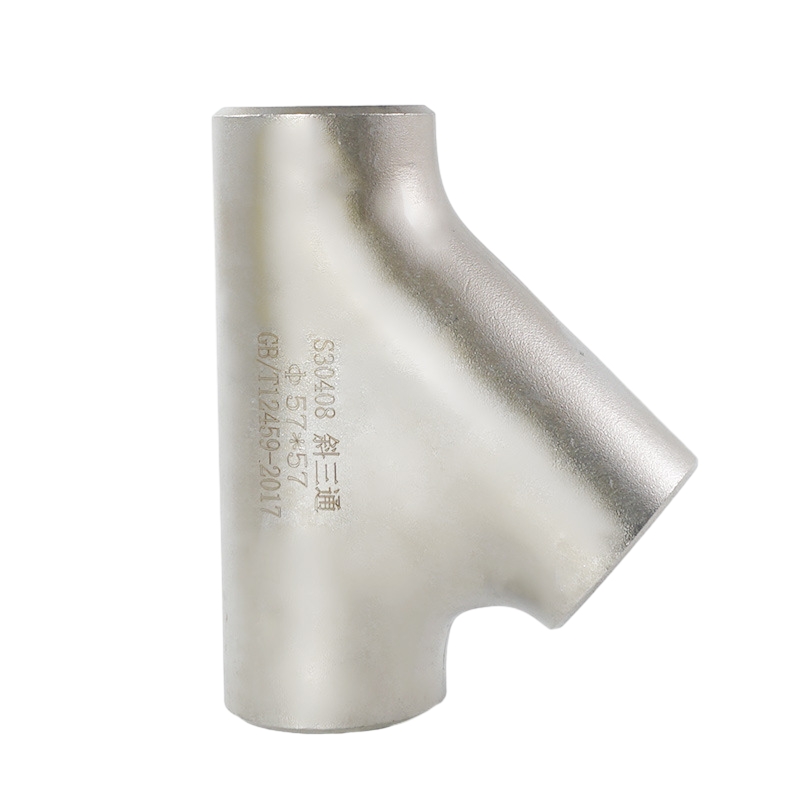

A lateralibus pipe Tee est fistula decet, quod est similis ad Tee sed habet latus foramen exitus genere ad XLV-gradu angle. Hoc unique configuratione concedit pro diversione fluidi fluxus a pelagus linea ad lineam laterale, enabling efficient distribution ad variis loca.
Lateralis aequalis vel inaequalia amplitudo comparari pelagus. Aequalis lateralis Tee habet ramos eiusdem magnitudinis, quod significat quod fluidum fluunt per Pipeline divisa aequaliter in genere linea. Sed reducendo lateralis Tee habet minorem genere quam pipeline. Solet usus est cum fluxus rates in genere linea opus reduci. Quod extra exitum provisum est a lateralibus Tee facit facilius ad directum fluidorum ad plures loca, improving distribution et permittens ad imperium fluxus rates.
Lecudibus providere certa media ad creando genere hospites in pipelines sine perturbando pelagus influunt. Et redigendum pressura guttae et frictional damna in genere linea, confert ad altiore ratio efficientiam.
Lateralibus Tees facile install. Sunt in omni genera de limbis systems et applications. Sicut: Petrochemical, pharmaceutical, cibum, aerospace, aedificationem ornamentum, naturalis Gas, Pulpam / charta, textile, vastatio, industrialis apparatu industria, etc.
Introductio
| Lateralibus Tee | |
| Item | Aliquam ferro lateralibus Tee |
| Vexillum | Asme / ANSI, MSS, Laudate, Jis, GB / T |
| Materia | Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Superficies | Arena exspirant |
| Genus | Iactus |
| magnitudo | I "-24" |
| Delivery Tempus | Intra 5-30 diebus post acceptam PROMUTUUS |
| Stipare | Facis in ligneis casibus |
| Applicatio | In pulpam et paper, aqua curatio, purgamentorum curatio, eget industria, biotechnology, pharmaceuticals, cibum, metalla, constructione, translationem, etc. |

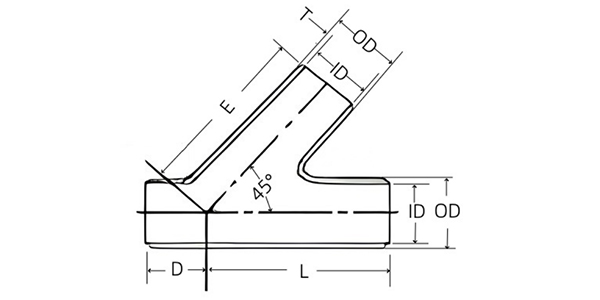

| Nominal pipe magnitudine | Extra diameter | Vexillum pondus | Extra fortis | ||||||
| | OD | E & l | D | T | Id | E & l | D | T | Id |
| 1 | 1.315 | 5.75 | 1.75 | 0.133 | 1.049 | 6.50 | 2.00 | 0.179 | 0.957 |
| 1¼ | 1.660 | 6.25 | 1.75 | 0.140 | 1.380 | 7.25 | 2.25 | 0.191 | 1.278 |
| 1½ | 1.900 | 7.00 | 2.00 | 0.145 | 1.610 | 8.50 | 2.50 | 0.200 | 1.500 |
| 2 | 2.375 | 8.00 | 2.50 | 0.154 | 2.067 | 9.00 | 2.50 | 0.128 | 1.939 |
| 2½ | 2.875 | 9.50 | 2.50 | 0.203 | 2.469 | 10.50 | 2.50 | 0.276 | 2.323 |
| 3 | 3.500 | 10.00 | 3.00 | 0.216 | 3.068 | 11.00 | 3.00 | 0.300 | 2.900 |
| 3½ | 4.000 | 11.50 | 3.00 | 0.226 | 3.548 | 12.00 | 3.00 | 0.318 | 3.364 |
| 4 | 4.500 | 12.00 | 3.00 | 0.237 | 4.026 | 13.50 | 3.00 | 0.337 | 3.826 |
| 5 | 5.562 | 13.50 | 3.50 | 0.258 | 5.047 | 15.00 | 3.50 | 0.375 | 4.813 |
| 6 | 6.625 | 14.50 | 3.50 | 0.280 | 6.065 | 17.50 | 4.00 | 0.432 | 5.761 |
| 8 | 8.625 | 17.50 | 4.50 | 0.322 | 7.981 | 20.50 | 5.00 | 0.500 | 7.625 |
| 10 | 10.750 | 20.50 | 5.00 | 0.365 | 10.020 | 24.00 | 5.50 | 0.500 | 9.750 |
| 12 | 12.750 | 24.50 | 5.50 | 0.375 | 12.000 | 27.50 | 6.00 | 0.500 | 11.750 |
| 14 | 14.000 | 27.00 | 6.00 | 0.375 | 13.250 | 31.00 | 6.50 | 0.500 | 13.000 |
| 16 | 16.000 | 30.00 | 6.50 | 0.375 | 15.250 | 34.50 | 7.50 | 0.500 | 15.000 |
| 18 | 18.000 | 32.00 | 7.00 | 0.375 | 17.250 | 37.50 | 8.00 | 0.500 | 17.000 |
| 20 | 20.000 | 35.00 | 8.00 | 0.375 | 19.250 | 40.50 | 8.50 | 0.500 | 19.000 |
| 24 | 24.000 | 40.50 | 9.00 | 0.375 | 23.250 | 47.50 | 10.00 | 0.500 | 23.000 |
