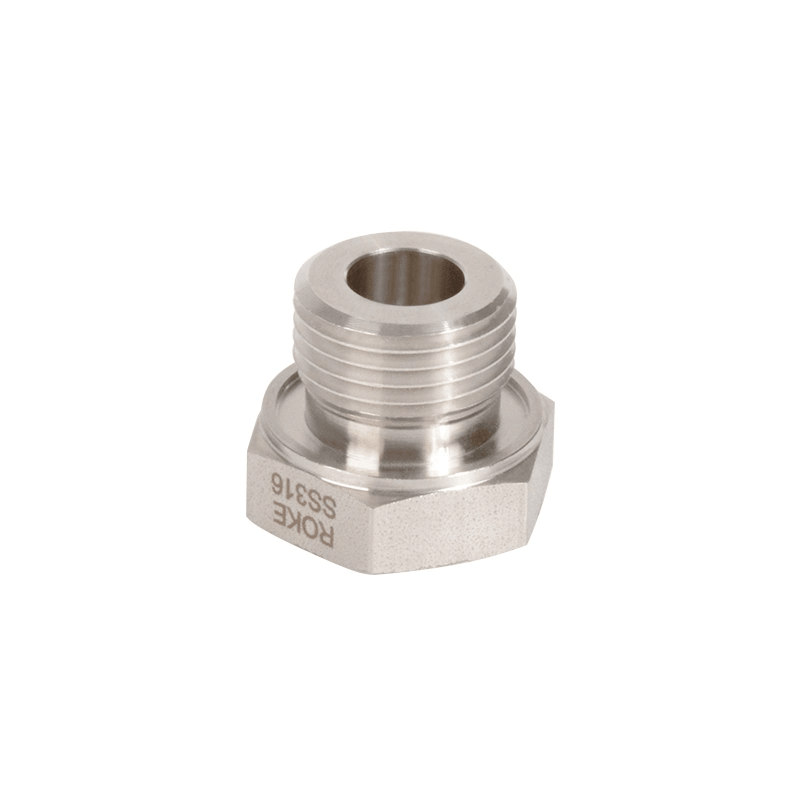

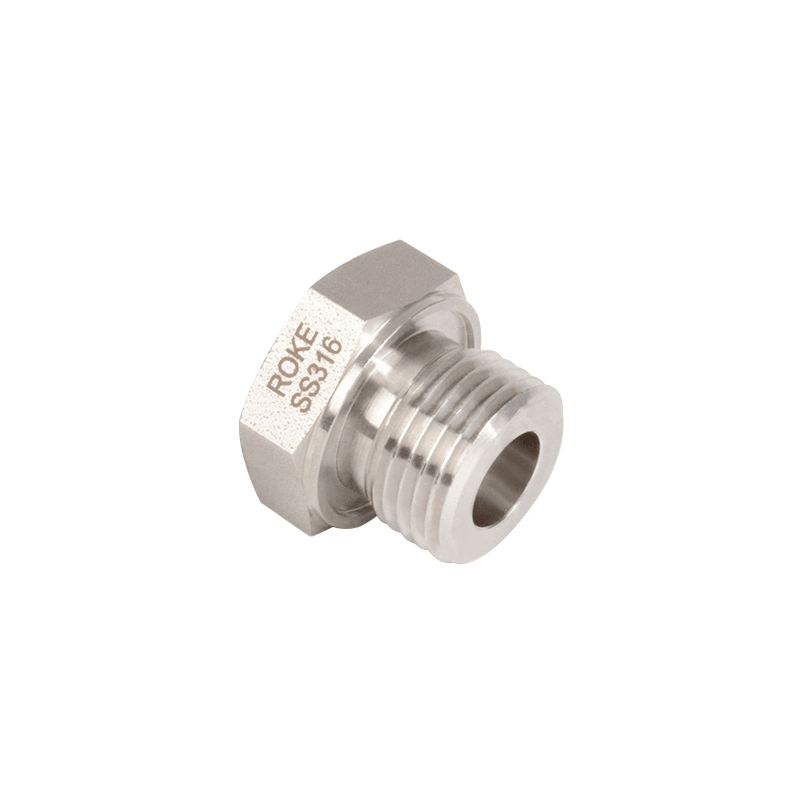

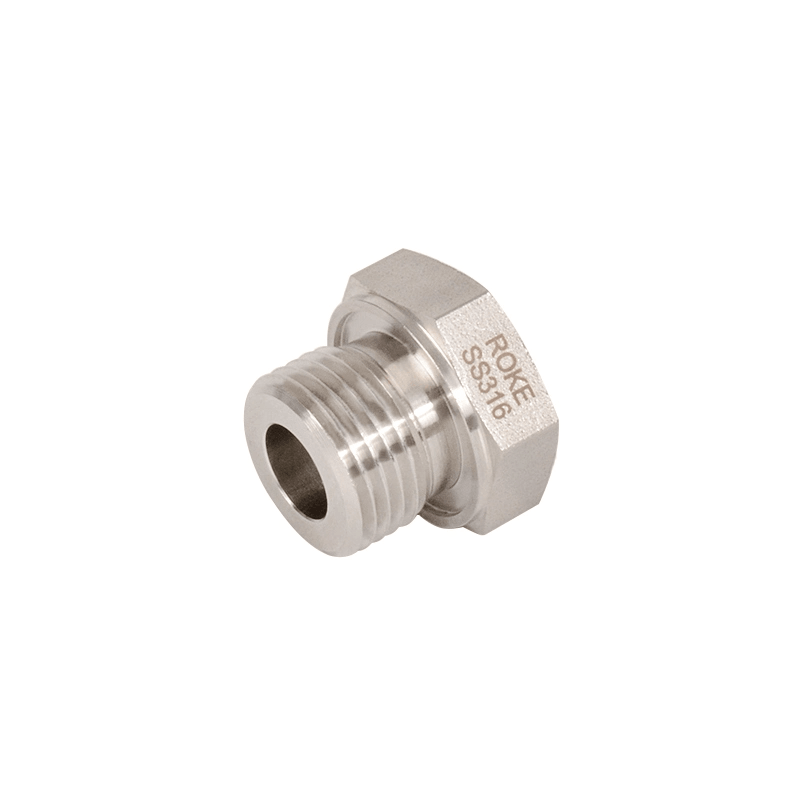

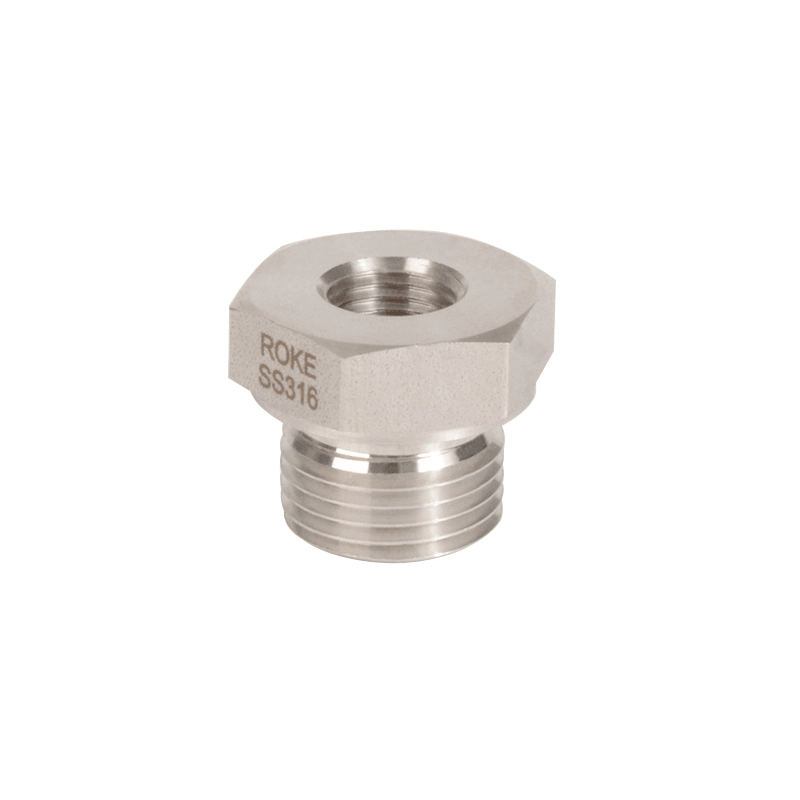

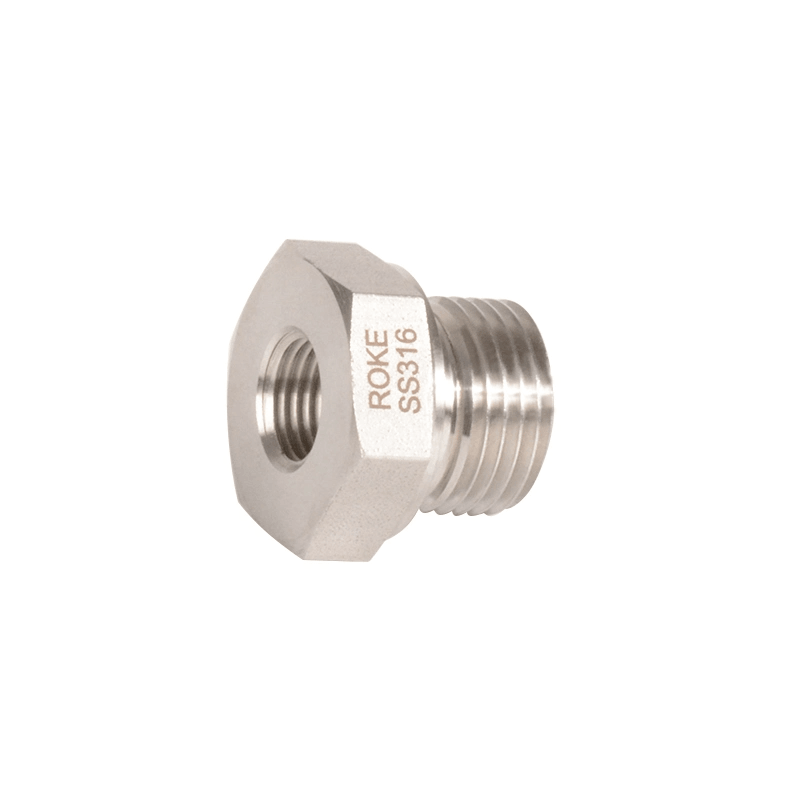

Aliquam ferro-reducendo bushings providere medium connectens minorem magnitudinem ad maiorem conduit conveniens portum. Hoc facit nexum de tibiarum aut hoses idoneam applications.
Sunt masculum relatorum in extra et feminam relatorum in medio. Aliquam Steel-reducing bushings sunt de alta qualitas et corrosio, repugnans pro aliqua dura environment application. Et clara Polising effectus non auget corrosio resistentia crescit aestheticam specie. Et hexagonale caput auctus leverage et uti cum a clavis. Potest installed usura Ordinarius Tools et requirit parum sustentationem vel reparatione.
In pipe nexu, reducendo bushing est innumerabilis munus. Habent features boni specie et facilis installation, durabile et amet. Et late usus est in aqua, oleum, Gas, eget industria, papermaking, medicina et alia industries.
Introductio
| Vexillum | Asme / Ansi B16.9, MSSI SP-XLIII, Laudate MMDCV, Jis B2313 |
| Materia | Aliquam Steel: ASTM A182 F304 / F304 / F316 / F316L / F317 / 317L / F321 / F310 / CCCXLVII / CMIV Carbon Steel: ASTM A105 / A694 F42 / XLVI / LII / LVI / LX / LXV / LXX / A350 LF3 / A350 LF2 |
| Superficies | Zinc electroplate |
| Genus | Frigus turbidam blank, cnc finiens processus |
| magnitudo | 1/8 "-1½" |
| Delivery Tempus | Intra 5-30 diebus post acceptam PROMUTUUS |
| Stipare | Polybag lobortis |
| Applicatio | Power statione, Gas, purgamentorum curatio, publica opera, eget, papermaking, pharmaceutical, etc. |

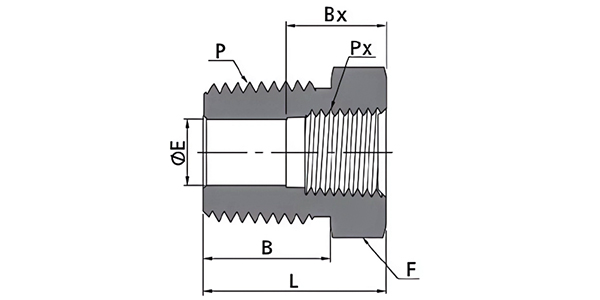

| Masculum NTP ad feminam NPT relatorum | ||||||
| P - NPT Magnitudo | Px - NPT Magnitudo | Dimensionem in (mm) | ||||
|
|
| L | F (Hex) | B | BX | E |
| 1/8 | 1/16 | 1.03 (26.2) | 0.44 (11.1) | 0,38 (9.7) | 0,39 (9.9) | 0,19 (4.8) |
| 1/4 | 1/16 | 0,86 (21.8) | 0,56 (14.3) | 0,56 (14.2) | 0,39 (9.9) | 0,19 (4.8) |
| 1/4 | 1/8 | 1.06 (26.9) | 0,56 (14.3) | 0,56 (14.2) | 0.41 (10.4) | 0,28 (7.1) |
| 3/8 | 1/16 | 0,86 (21.8) | 0,69 (17.5) | 0,56 (14.2) | 0,39 (9.9) | 0,19 (4.8) |
| 3/8 | 1/8 | 0,86 (21.8) | 0,69 (17.5) | 0,56 (14.2) | 0,41 (10.4) | 0,34 (8,6) |
| 3/8 | 1/4 | 1,19 (30.2) | 0,75 (19.1) | 0,56 (14.2) | 0,59 (15.0) | 0,38 (9.6) |
| 1/2 | 1/8 | 1.08 (27.4) | 0,87 (22.2) | 0,75 (19.1) | 0.41 (10.4) | 0,34 (8,6) |
| 1/2 | 1/4 | 1.08 (27.4) | 0,87 (22.2) | 0,75 (19.1) | 0,59 (15.0) | 0.45 (11.4) |
| 1/2 | 3/8 | 1,41 (35.8) | 0,87 (22.2) | 0,75 (19.1) | 0,59 (15.0) | 0.47 (11.9) |
| 3/4 | 1/8 | 1.08 (27.4) | 1.06 (27.0) | 0,75 (19.1) | 0,41 (10.4) | 0,28 (7.1) |
| 3/4 | 1/4 | 1.08 (27.4) | 1.06 (27.0) | 0,75 (19.1) | 0,59 (15.0) | 0.45 (11.4) |
| 3/4 | 3/8 | 1.08 (27.4) | 1.06 (27.0) | 0,75 (19.1) | 0,59 (15.0) | 0,59 (15.0) |
| 3/4 | 1/2 | 1.63 (41.4) | 1.06 (27.0) | 0,75 (19.1) | 0,78 (19.8) | 0,62 (15.7) |
| 1 | 1/8 | 1.36 (34.5) | 1.37 (34.9) | 0,94 (23.9) | 0,41 (10.4) | 0,28 (7.1) |
| 1 | 1/4 | 1.37 (34.9) | 1.37 (34.9) | 0,94 (23.9) | 0,59 (15.0) | 0.45 (11.4) |
| 1 | 3/8 | 1.37 (34.9) | 1.37 (34.9) | 0,94 (23.9) | 0,59 (15.0) | 0,59 (15.0) |
| 1 | 1/2 | 1.37 (34.9) | 1.37 (34.9) | 0,94 (23.9) | 0,78 (19.8) | 0,73 (18.5) |
| 1 | 3/4 | 1.85 (47.0) | 1.37 (34.9) | 0,94 (23.9) | 0.81 (20.6) | 0,88 (22.4) |
| I 1/4 | 3/4 | 1,47 (37.3) | 1,75 (44.5) | 0,94 (23.9) | 0.81 (20.6) | 0,88 (22.4) |
| I 1/4 | 1 | 1,47 (37.3) | 1,75 (44.5) | 0,94 (23.9) | 1.00 (25.4) | 0,88 (22.4) |
| I 1/2 | 1 | 1.58 (40.1) | 2.00 (50.8) | 1.03 (26.2) | 1.00 (25.4) | 0,88 (22.4) |
| I 1/2 | I 1/4 | 2.20 (56.0) | 2,13 (54.0) | 1.03 (26.2) | 1.00 (25.4) | 1.34 (34.0) |
