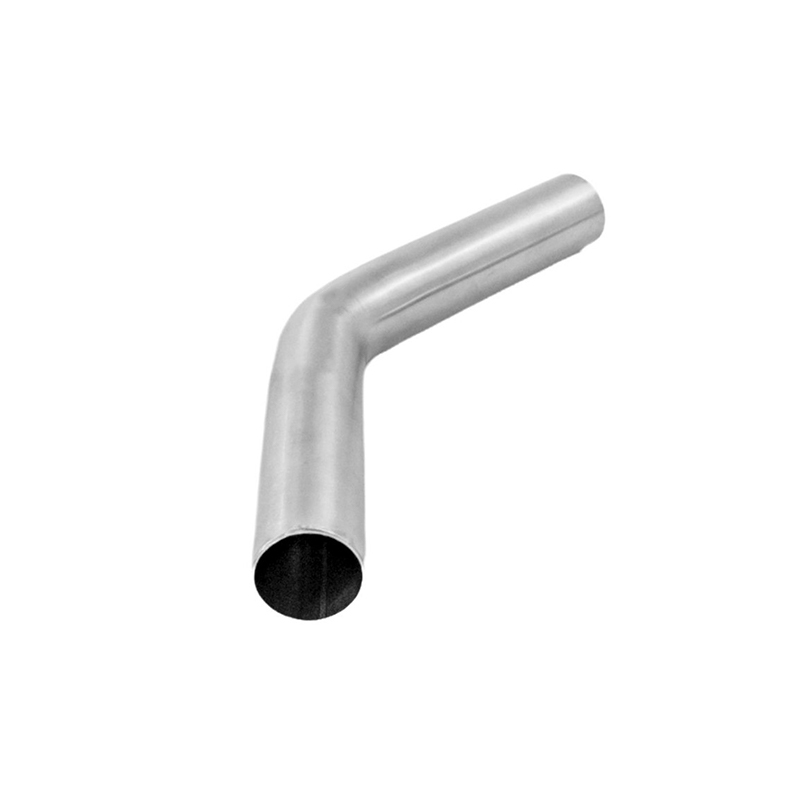

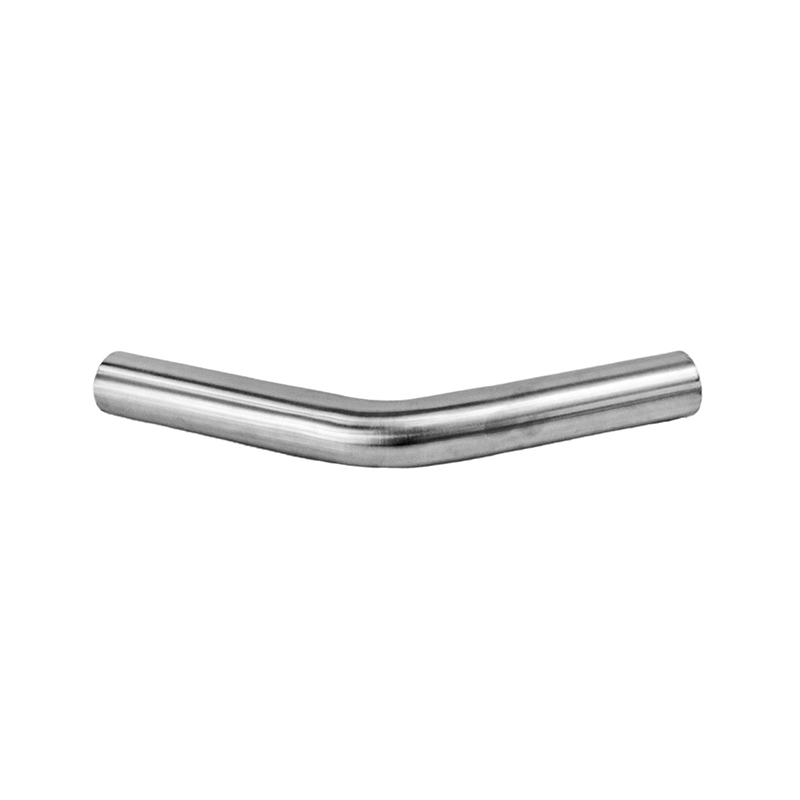

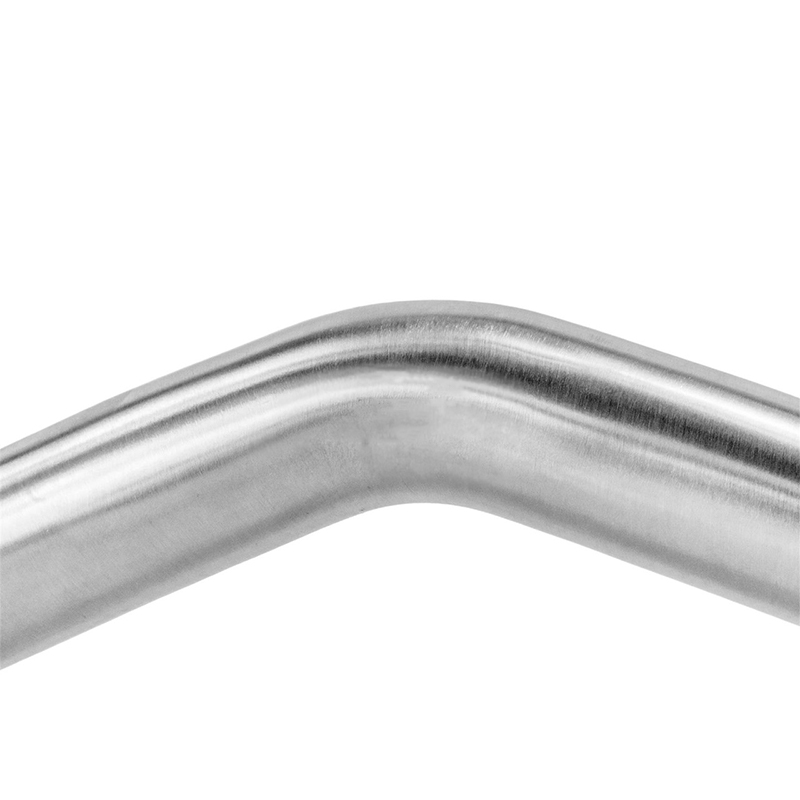

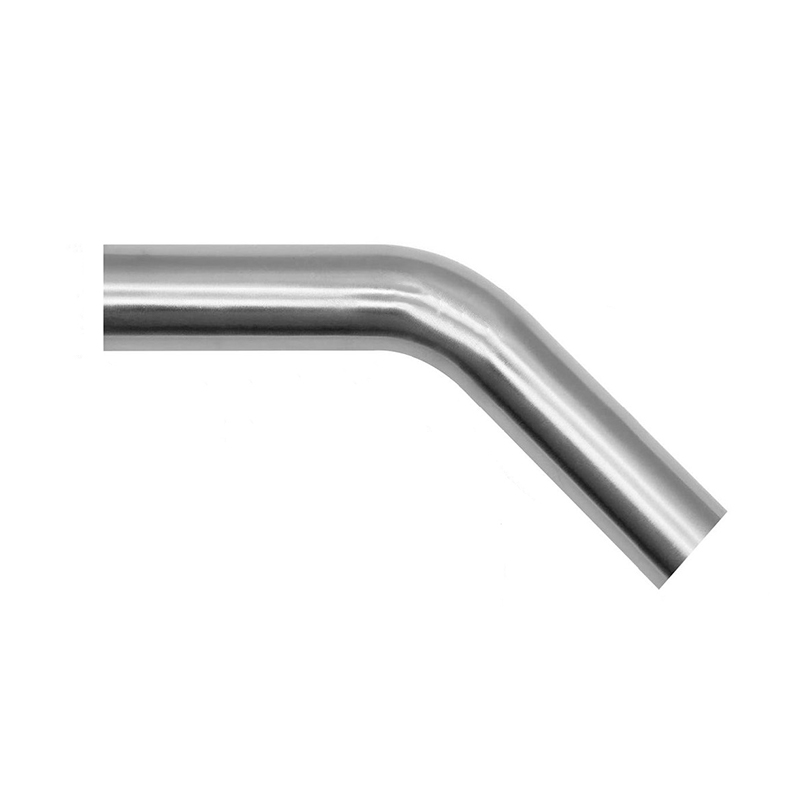

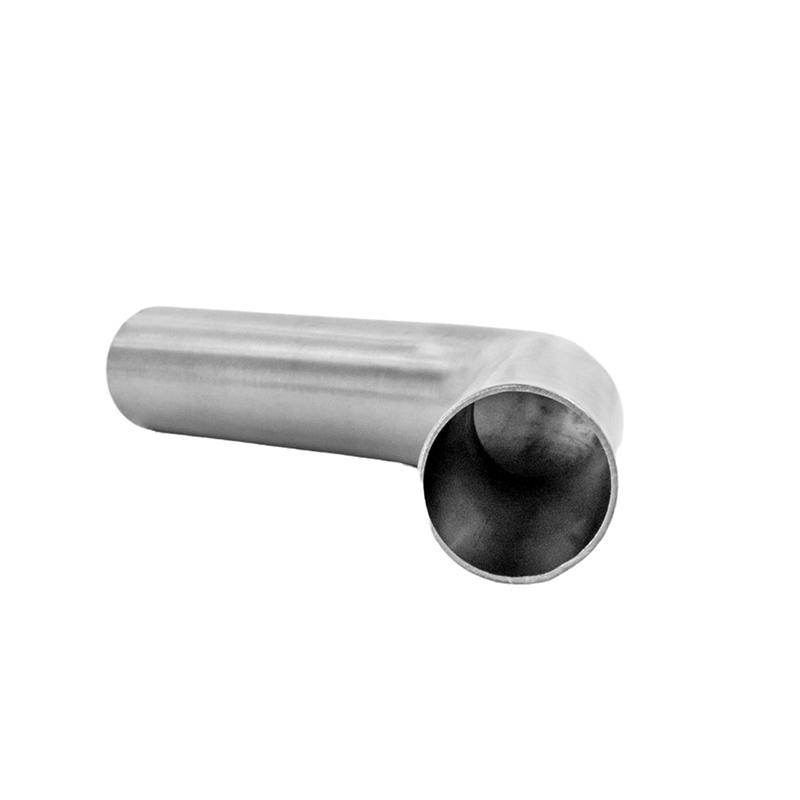

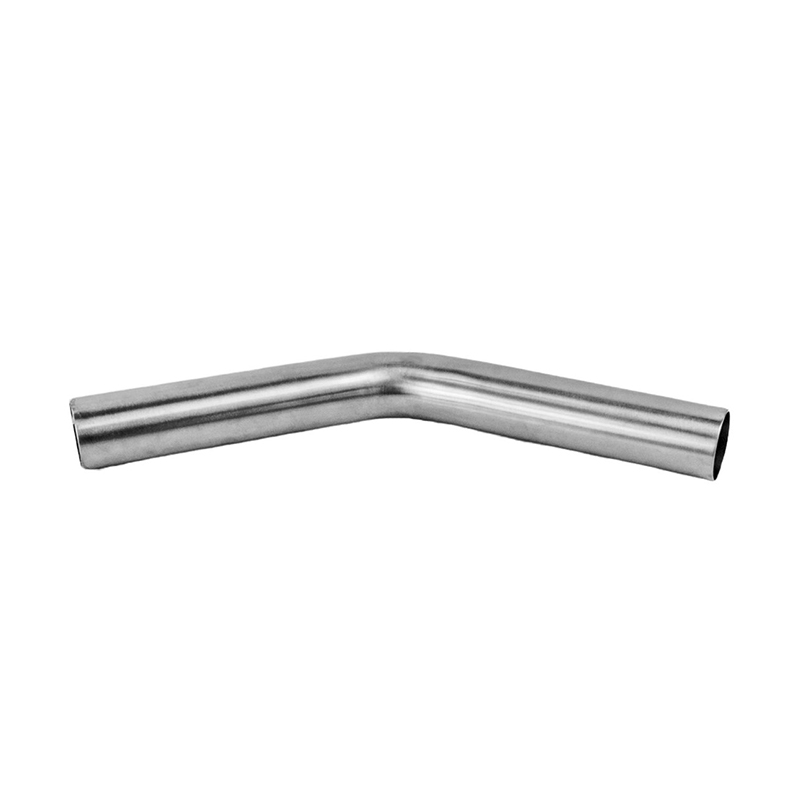

CCCIV Aliquam Steel XLV ° Long Radius (LR) Tube cum Long crura

XLV ° Long Radius Tube flectit

Item

Aliquam Steel XLV ° Long Radius Tube flectit

Vexillum

Signa ASME: Ansi B16.9, Ansi B16.28, MSS-sp-XLIII

Laudate: Din2605, Din2615, Din2616, Din2617, Din28011

En: En10253-1. En10253-2

Materia

Immaculatam ferro

Superficies

Expolitus

Genus

INDICTUS

magnitudo

NPS 0,5 "-12"

Delivery Tempus

Intra 5-30 diebus post acceptam PROMUTUUS

Stipare

Export sarcina

Applicatio

In multis industries, comprehendo eget, oleum et Gas, electrica, metallurgy et Shipbuilding.

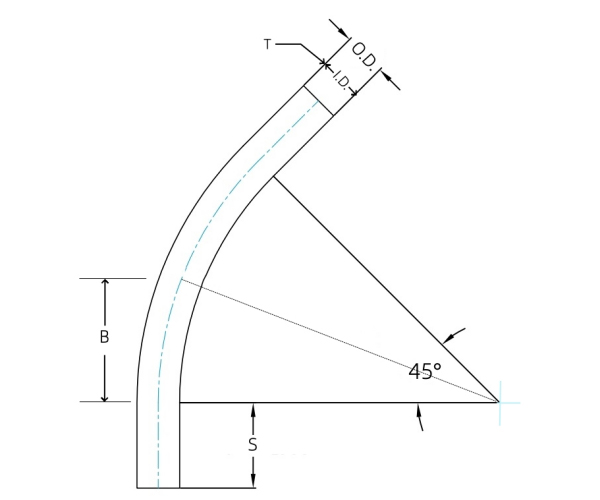

Nps

O.D.

B

S (min)

Mss sp-XLIII

ANSI B16.9

5s schedule

Schedule 10s

Schedule 40s

Schedule 80s

I.D.

T

I.D.

T

I.D.

T

I.D.

T

0.5

0.84

0.62

1.65mm

0.710

0.065

0.674

0.083

0.622

0.109

0.546

0.147

0.75

1.05

0.44

1.65mm

0.920

0.65

0.884

0.083

0.824

0.113

0.742

0.154

1

1.32

0.88

1.65mm

1.185

0.065

1.097

0.109

1.049

0.133

0.957

0.179

1.25

1.66

1.00

1.65mm

1.530

0.065

1.442

0.109

1.380

0.140

1.278

0.191

1.5

1.90

1.12

1.65mm

1.770

0.065

1.682

0.109

1.610

0.145

1.500

0.200

2

2.38

1.38

1.65mm

2.245

0.065

2.157

0.109

2.067

0.154

1.939

0.218

2.5

2.88

1.75

1.65mm

2.709

0.083

2.635

0.120

2.469

0.203

2.323

0.276

3

3.50

2.00

1.65mm

3.334

0.083

3.260

0.120

3.068

0.216

2.900

0.300

3.5

4.00

2.25

2.11mm

3.834

0.083

3.760

0.120

3.548

0.226

3.364

0.318

4

4.50

2.50

2.11mm

4.334

0.083

4.260

0.120

4.026

0.237

3.826

0.337

5

5.56

3.12

2.77mm

5.345

0.109

5.295

0.134

5.047

0.258

4.813

0.375

6

6.62

3.75

2.77mm

6.407

0.109

6.357

0.134

6.065

0.280

5.761

0.432

8

8.62

5.00

2.77mm

8.407

0.109

9.329

0.148

7.981

0.322

7.625

0.500

10

10.75

6.25

3.81mm

10.482

0.134

10.420

0.165

10.020

0.365

9.75

0.500

12

12.75

7.50

3.81mm

12.420

0.156

12.390

0.180

12.000

0.375

11.75

0.500
