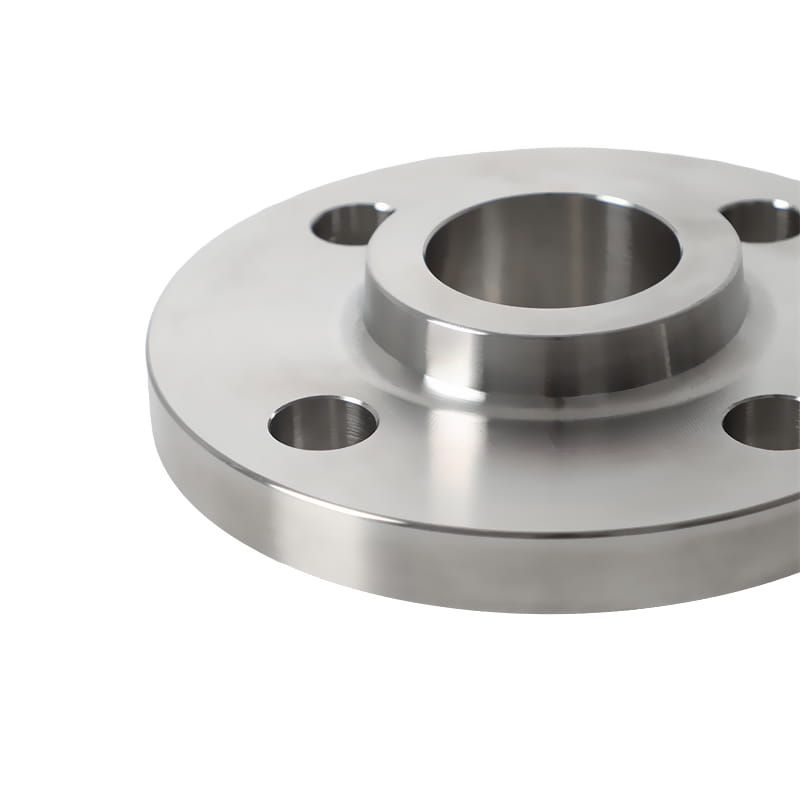

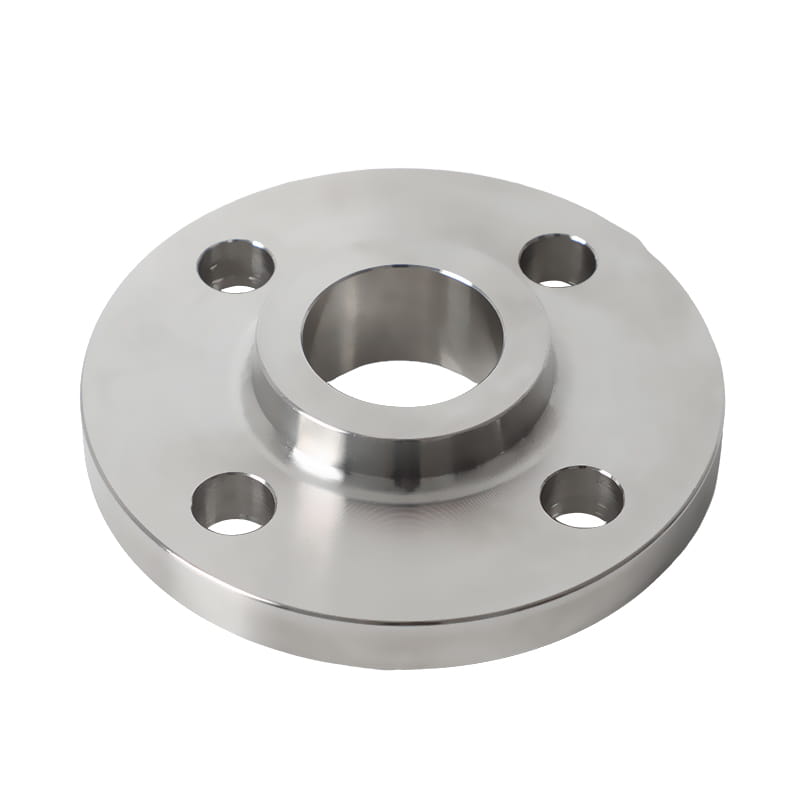

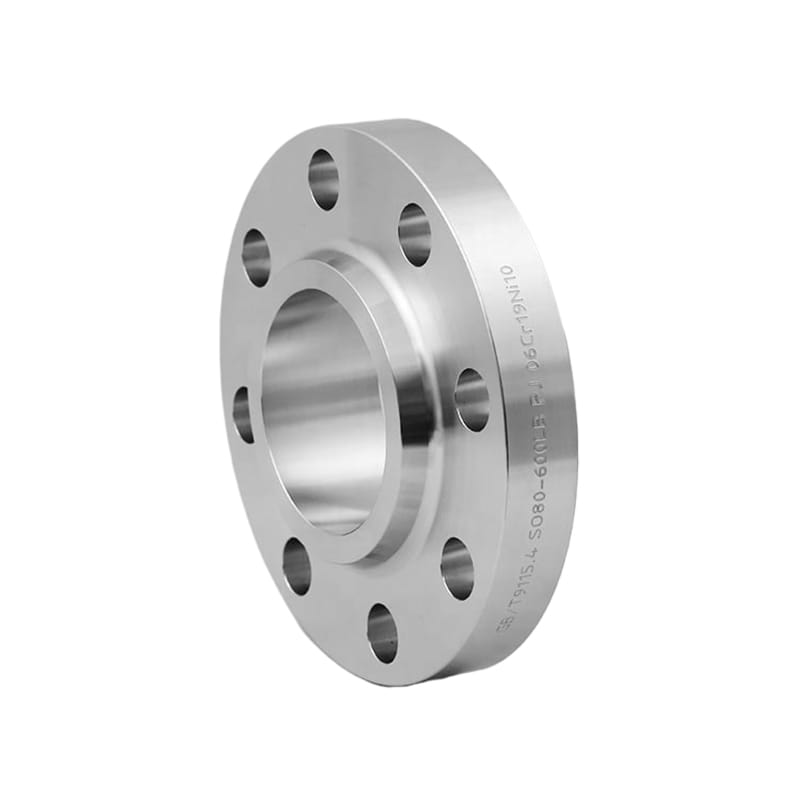

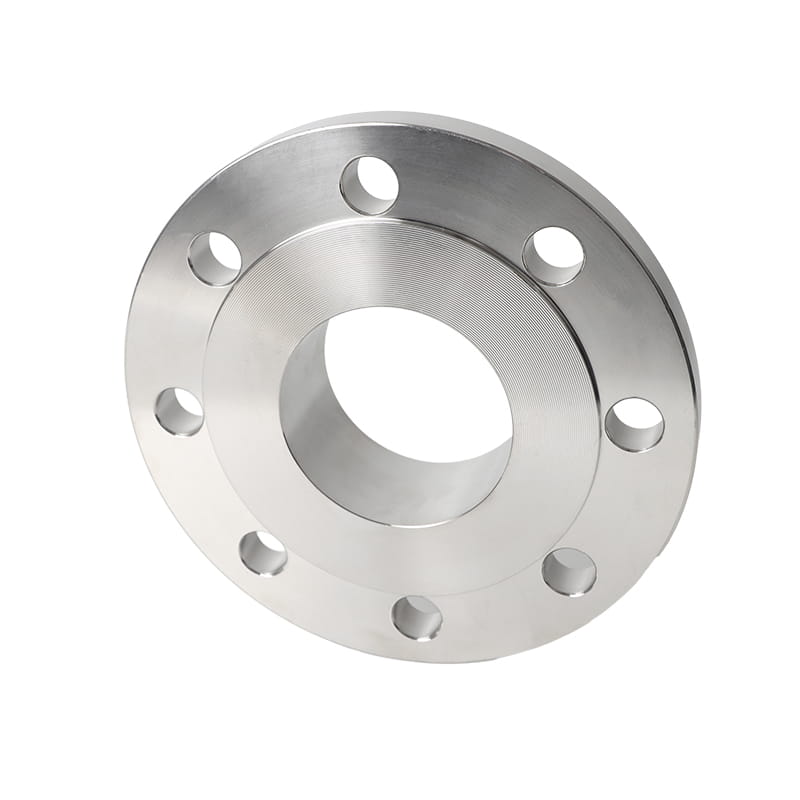

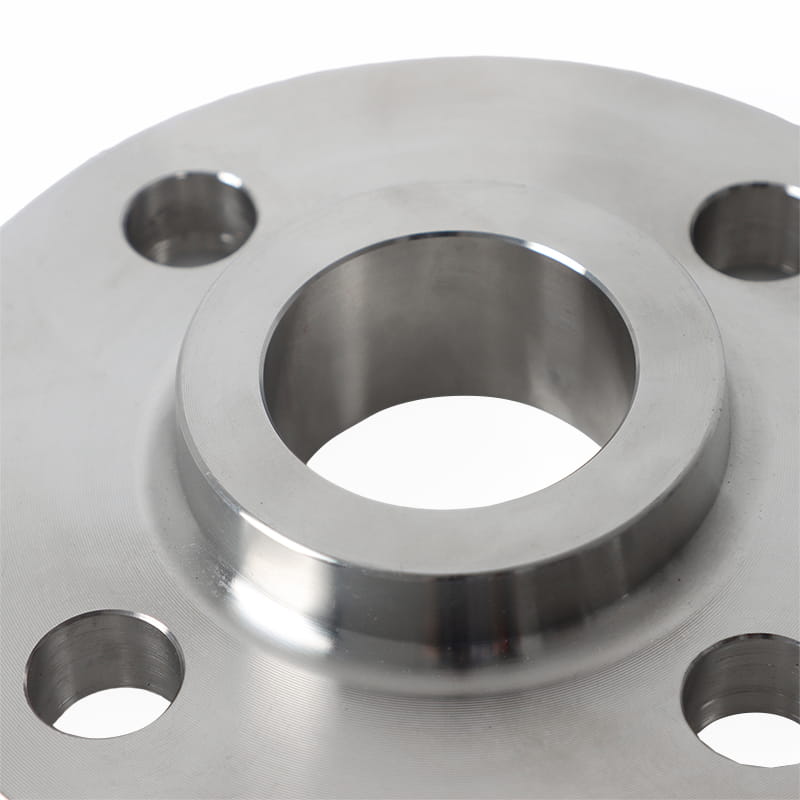

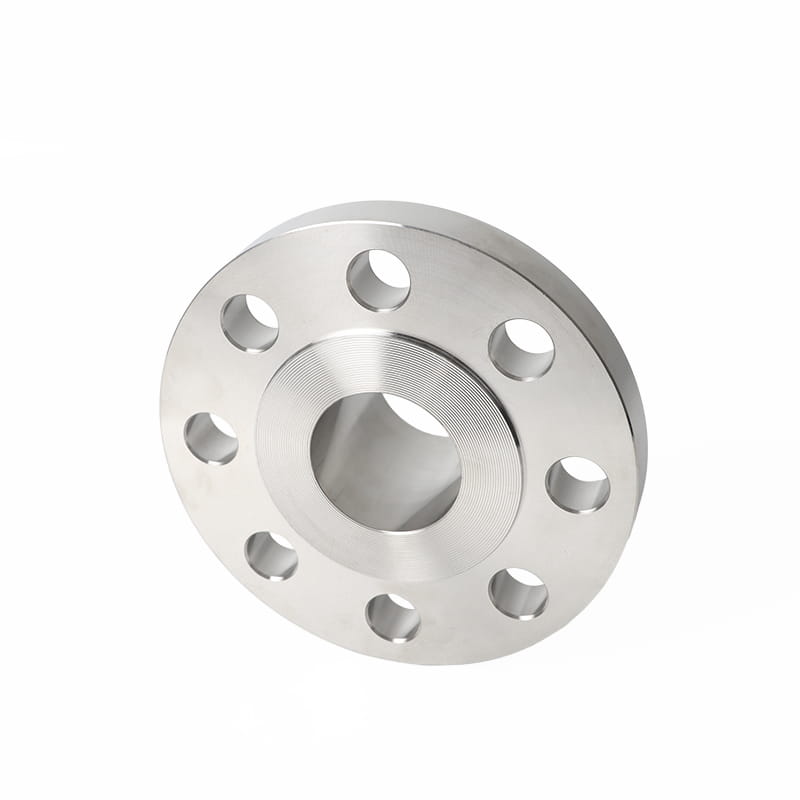

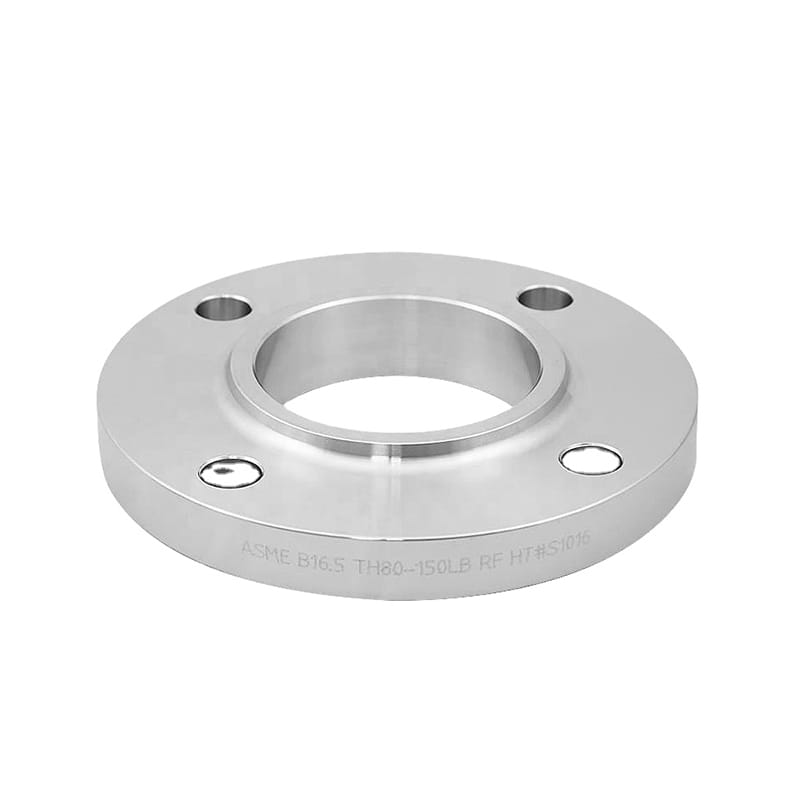

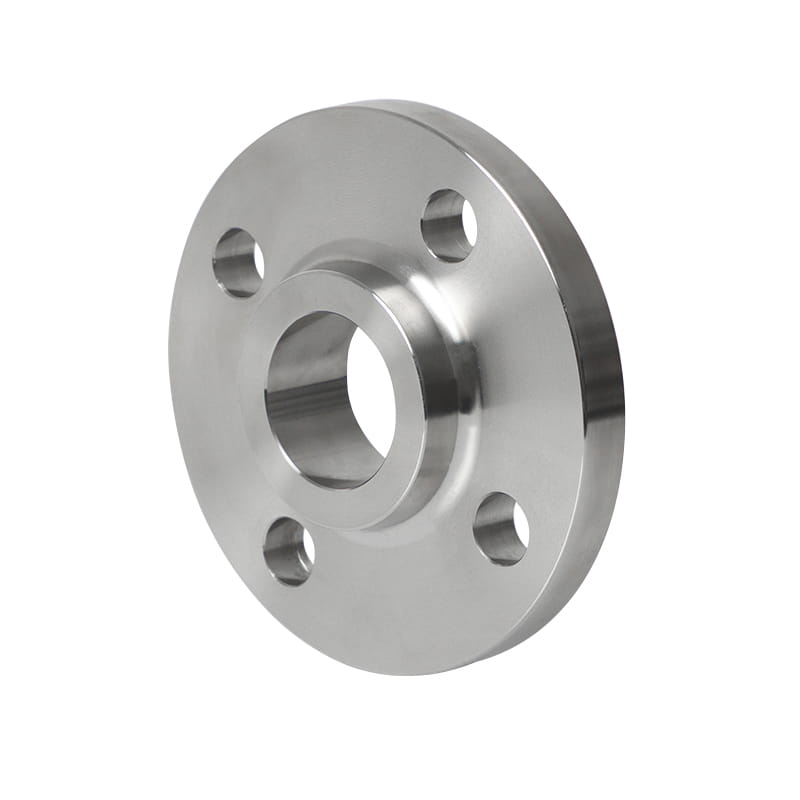

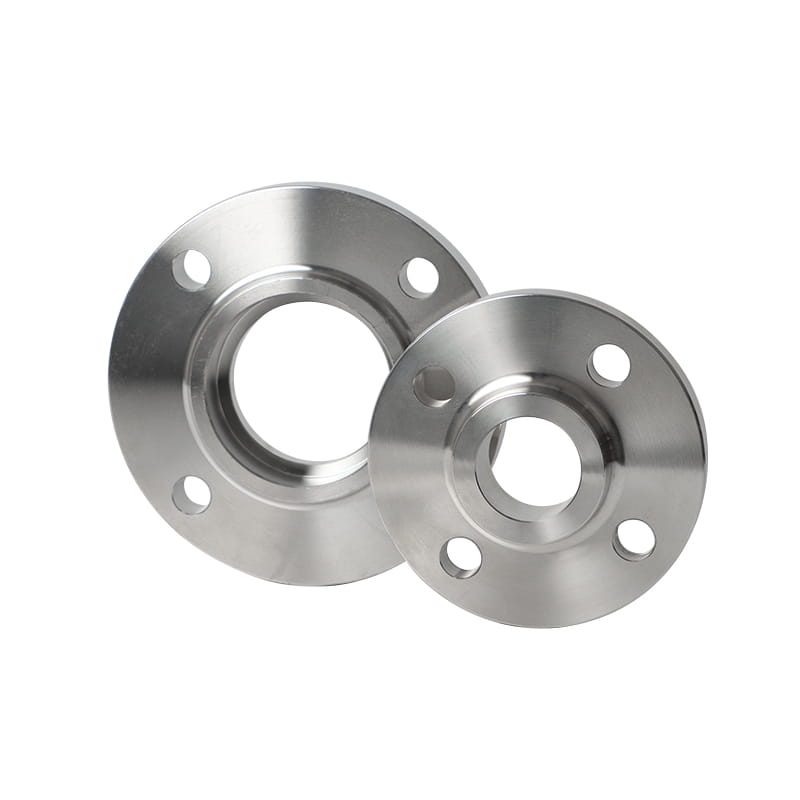

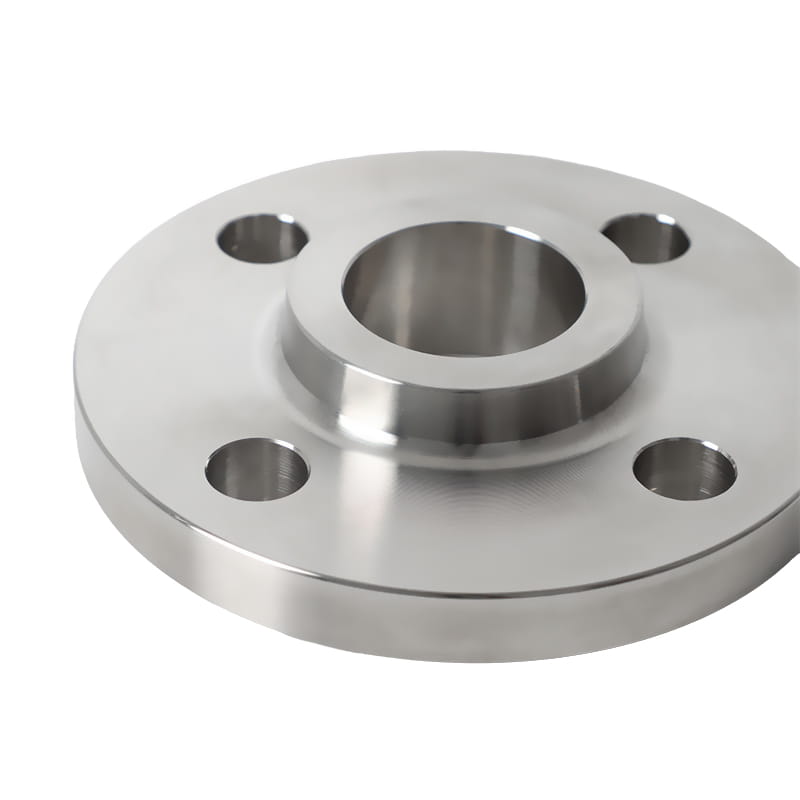

Labi-in Flannges habent centrum cum valde low profile. Hoc genus flange solet connectit tibia vel duas filum welds, quod est possibile ut tantum unum weld.
Labe lapsus est simplex et reliable alternative ad collum si non habet aucupo, et ideo concedit pipe ad adaequatum in longitudinem ad suum locum LABIUM. De lapsu et peperit, dabo amplum moles spatium ad matching pipe. Hoc concedit satis opus spatium ad welder et fabricator ad nexum.
Plerumque, praetermisissent-in LABIUM potest fieri per clangoris, ferro secans, casting, etc inter has vestibulum genera, et tormenta type gerit certa qualitas et communiter usus.
Et commoda illapsum in LABIS (I) inferioribus installation costs; (II) meliora Leakage probationem; (III) facilius consistent cum aliis partibus per installation; (IV) Internum et externum welding in LAGE in LAGE; (V) et accurate de Pipeline postulat minus tempus; (VI) ut pipe labitur in LABIUM, quod potest esse bene compatible.
Introductio
| Vexillum | ANSI / ASME B16.5, BS4505, Gost12820-80, Laudate, UNI, EN1092-1, JIS / KS, etc. |
| Materia | Carbon Steel: SA105N, Sa266, Sa765, A350F2, A350F6; Alloy Steel: A182F11, A182F22, A182FF22V; Aliquam ferro: A182F304, A182F316, A182F51, A182F53, A182F60, S31008, S32168, S347h |
| Superficies | Oleum |
| Genus | Ferebantur, ferro secans, casting, etc. |
| magnitudo | DN15, DN600, maximam exterius diameter quod potest esse customized est 6000mm |
| Delivery Tempus | Intra 5-30 diebus post acceptam PROMUTUUS |
| Stipare | Latin Export packaging (Plywood casu in foris, plastic sindone in medio). |
| Applicatio | humilis-pressura compressum aere lineas, et processus lineae substantias ut vapor, condensates, etc. |

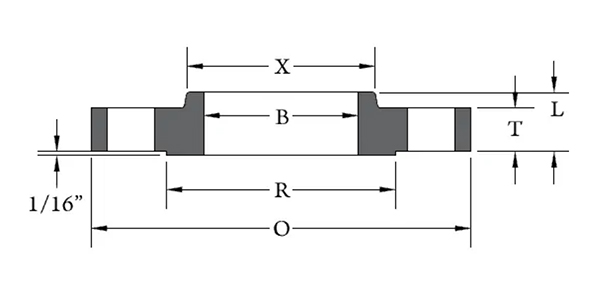

| Nom. Pipe Size | O | B | T | L | X | R | Foro | PRAESIDIUM | Fulmen Circulo dia | |
| Obolum | 3.50 | 0.88 | 0.38 | 0.56 | 1.19 | 1.38 | 4 | 0.62 | 2.38 | |
| Quadrata | 3.88 | 1.09 | 0.44 | 0.56 | 1.50 | 1.69 | 4 | 0.62 | 2.75 | |
| 1 | 4.25 | 1.36 | 0.50 | 0.62 | 1.94 | 2.00 | 4 | 0.62 | 3.12 | |
| 1¼ | 4.62 | 1.70 | 0.56 | 0.75 | 2.31 | 2.50 | 4 | 0.62 | 3.50 | |
| 1½ | 5.00 | 1.95 | 0.62 | 0.81 | 2.56 | 2.88 | 4 | 0.62 | 3.88 | |
| 2 | 6.00 | 2.44 | 0.69 | 0.94 | 3.06 | 3.62 | 4 | 0.75 | 4.75 | |
| 2½ | 7.00 | 2.94 | 0.81 | 1.06 | 3.56 | 4.12 | 4 | 0.75 | 5.50 | |
| 3 | 7.50 | 3.57 | 0.88 | 1.12 | 4.25 | 5.00 | 4 | 0.75 | 6.00 | |
| 3½ | 8.50 | 4.07 | 0.88 | 1.19 | 4.81 | 5.50 | 8 | 0.75 | 7.00 | |
| 4 | 9.00 | 4.57 | 0.88 | 1.25 | 5.31 | 6.19 | 8 | 0.75 | 7.50 | |
| 5 | 10.00 | 5.66 | 0.88 | 1.38 | 6.44 | 7.31 | 8 | 0.88 | 8.50 | |
| 6 | 11.00 | 6.72 | 0.94 | 1.50 | 7.56 | 8.50 | 8 | 0.88 | 9.50 | |
| 8 | 13.50 | 8.72 | 1.06 | 1.69 | 9.69 | 10.62 | 8 | 0.88 | 11.75 | |
| 10 | 16.00 | 10.88 | 1.12 | 1.88 | 12.00 | 12.75 | 12 | 1.00 | 14.25 | |
| 12 | 19.00 | 12.88 | 1.19 | 2.12 | 14.38 | 15.00 | 12 | 1.00 | 17.00 | |
| 14 | 21.00 | 14.14 | 1.31 | 2.19 | 15.75 | 16.25 | 12 | 1.12 | 18.75 | |
| 16 | 23.50 | 16.16 | 1.38 | 2.44 | 18.00 | 18.50 | 16 | 1.12 | 21.25 | |
| 18 | 25.00 | 18.18 | 1.50 | 2.62 | 19.88 | 21.00 | 16 | 1.25 | 22.75 | |
| 20 | 27.50 | 20.20 | 1.62 | 2.81 | 22.00 | 23.00 | 20 | 1.25 | 25.00 | |
| 22 | 29.50 | 22.22 | 1.75 | 3.07 | 24.25 | 25.25 | 20 | 1.38 | 27.25 | |
| 24 | 32.00 | 24.25 | 1.81 | 3.19 | 26.12 | 27.25 | 20 | 1.38 | 29.50 | |
Condita in MMVII et ad Longyou oeconomica progressionem zonam, Zhejiang provincia, in MMXXII. Covers aream 130,000 quadratum metris, magis quam XXX productio lineas, CCC operarios, XX R & D populus, XXX inspectionem et annua, XX R & D populus, XXX inspectionem et annua output de 50.000 talentorum XXX.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (Abs): British Register of Shipping (LR), Deutsche Veritas (GL), Bureau veritas Society (BV), Det Norske (DNV), Coreanica Register of Shipping (KR) officina certification.
Pelagus products includere immaculatam ferro, pipe caerimonias, flanges, valvulae, etc., quae late in PETROLEUM, chemical industria, nuclei industria, urget, shippuilding, nuclei, cibo, saltu, electrica, et alimentis, mechanica apparatibus, et aliis agris. In comitatu adhaeret ad corporatum tenet de "qualis est superessendam, fama pro progressionem" et animo serves omnis mos creare win-vincere situ.
