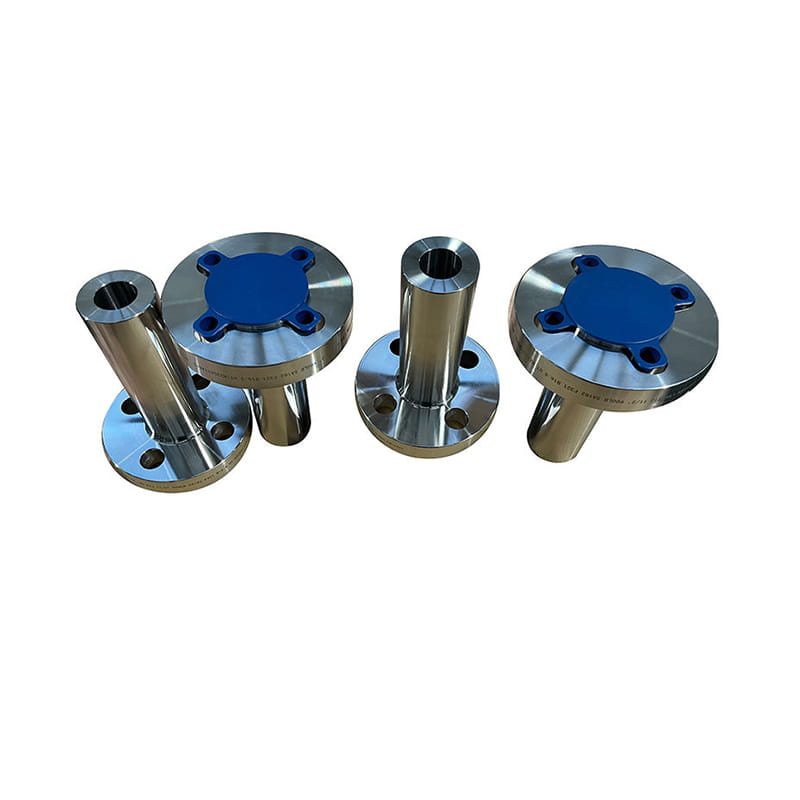

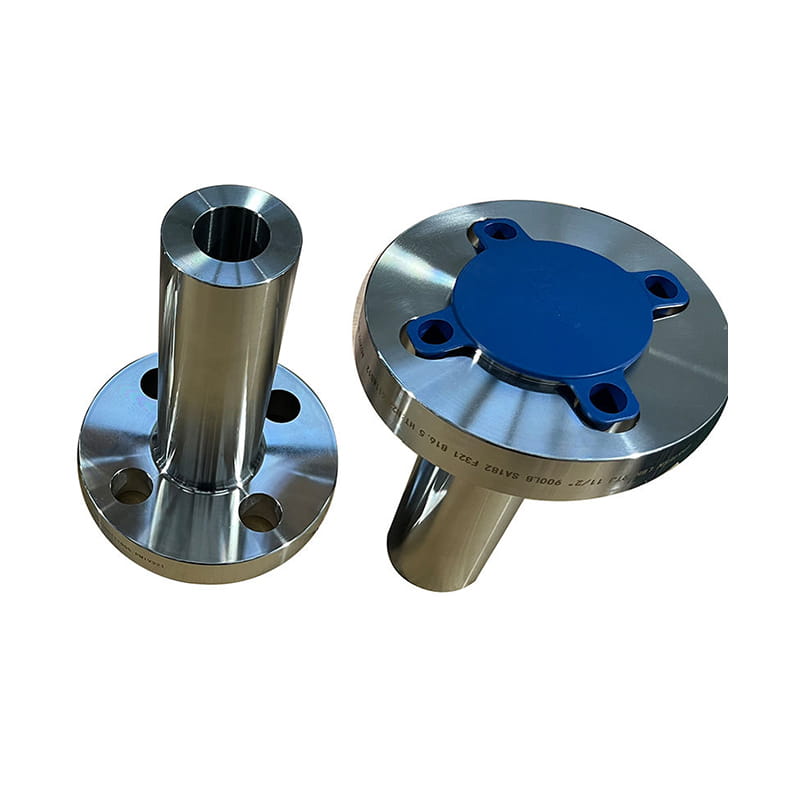

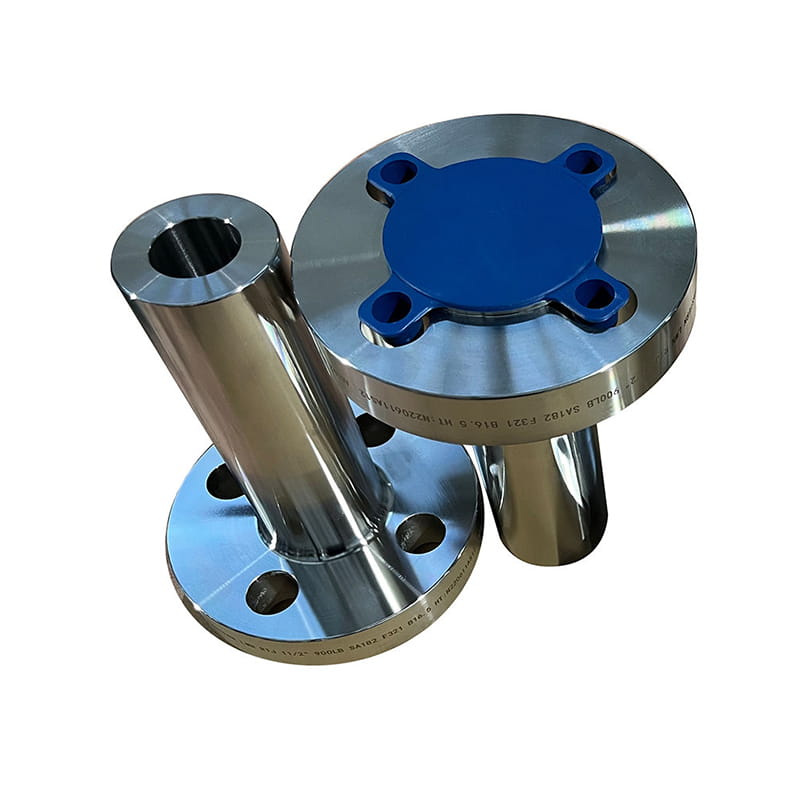

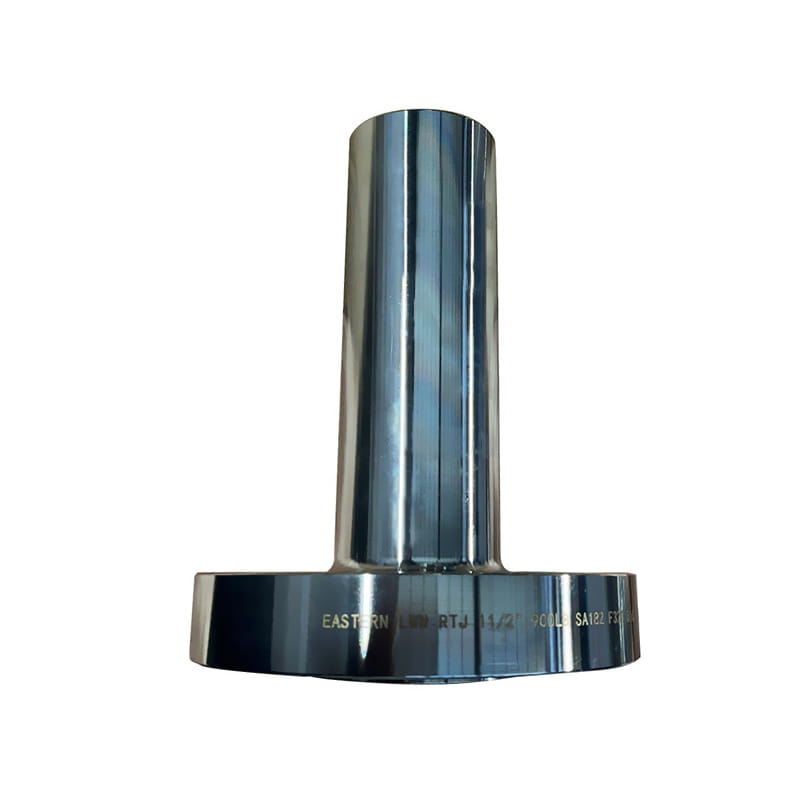

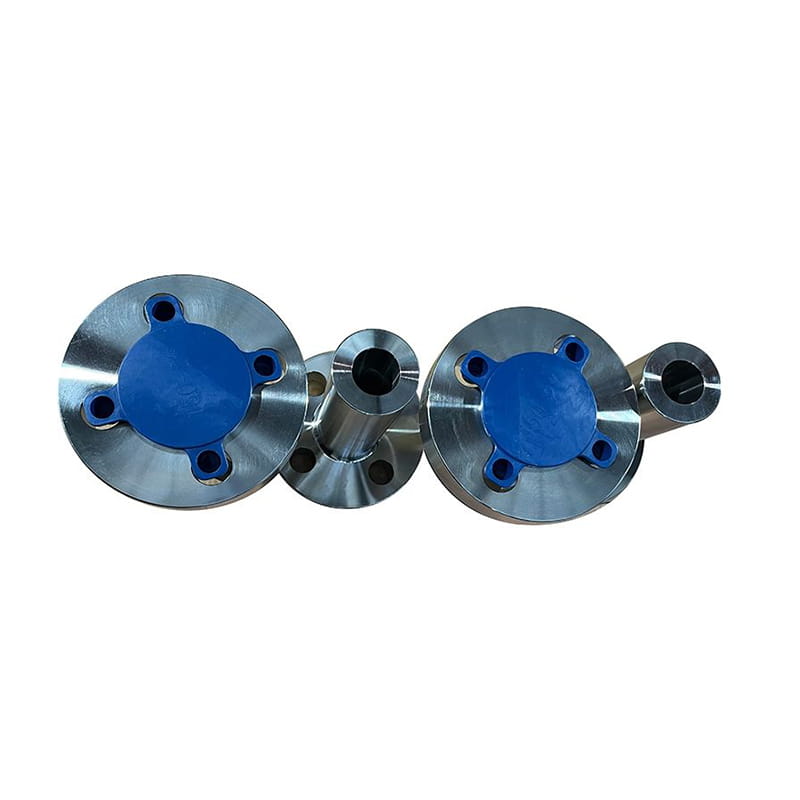

Long Weld collum Flanges sunt extensio de Welding collum flanges cum cervicem. Est typically in applications quod involvere princeps pressura tum summus vel humilis temperaturis conditionibus. Ut in oleum et Gas pipelines, eget processus plantis, et potentia generationem facilities.
Et collum de LABIUM est unum-pilacer LAGE cum diu, tapetatum collum et plana faciem et erexit faciem. Longum collum permittit ad lenis transitus a tibia ad LABIUM, quae adjuvat ad distribute passiones magis aequaliter et reduces periculo lassitudine defectum. Praeterea, diu collo providet sufficiens spatio ad welding, quod potest adhuc augendae integritas et perficientur Pipeline.
Et collum in longa welding collum LAGE est aliquanto iam quam aliis flanges, ita saepe usus est ut CERVIX in dolium aut columnae. Potest directe coniuncta est. Hoc concedit ut considerari ut CERVIX quod est confirmat. In usum huius LABIUM type significat quod pipe ad LABIUM Weld non potest vitari. Etiam providet beneficia sui -enhancent.
Introductio
| Vexillum | Carbon Steel: ASM A105, ASTM A350 LF1 / LF2, S235JR, P245GH, P250GH, P280GH, A694 F42 / XLVI / LII / LVI / LX / LXV Aliquam Steel: ASM A182 F304 / 304L / 314, F316 / 316L, F317 / 317L, F321, F310, F347, etc. Alloy Steel: ASTM A CLXXXII F1 / F5 / F9 / F11 / F22 / F91 / etc. Duplex et Super Duplex Steel: ASTM A815 uns S31803 / S32205 / S32750 / S32760 |
| Materia | A182 F304 / 316, F316 / 316L, CCCXVII, CCCXXI, 310s, 316TI, 316H.317H.317L. 904L, 321h, 347h, 310H, uns31803, uns32750, uns32760, Nickel Alloy Inconl DC, DCCCXC Incoloy, C-CCLXXVI, DCXC Incoloy, C-DCXC, DCXC |
| Superficies | Rubigo praeventionis, nigrum pingere coating vel phosphasting curatio cum nigrum color, varnish pingere coating, varnish oleum coating, electro galvanizing coating |
| Genus | Ferebantur, calor, tractata et machined |
| magnitudo | 1/2 "-48" |
| Delivery Tempus | Intra 5-30 diebus post acceptam PROMUTUUS |
| Stipare | Plastic peram interiorem, exterius lobortis, et plywood casu vel grabatum vel secundum clientis scriptor postulationem |
| Applicatio | Works, Shippuilding Industry, Petrochemical & Gas Industry, Power |
Litge tolerances
General Nota: Dimensiones sunt in pollices.
|
| |
| Extra diameter (dimensionem o) | OD Od> XII, Od> XXIV ± 0.190 |
|
|
|
| Crassitudo LABIUM Min (Dimension C) | Omnes magnitudinis NPS XVIII minor 0.120, -Zero NPS XX et maius 0.190, -zero |
| Hub diametrum bevel (dimensionem a) | Omnes magnitudinum 0.120, -Zero |
| Longitudo per centrum (dimensionem h) | NPS IV et minor ± 0.060 NPS V ad X, inclusive 0.060, -0.120 XII et maius 0.120, -0.180, -0.180 |
| Diametri et peperit (dimensionem b) | NPS X et minor ± 0.030 NPS XII ad XVIII, inclusive ± 0.060 NPS XX et maius 0.120, -0.060 |
| SPECTAS | * Altitudo adversus ± 0.010 Diametro erexit faciem (ratio r) Genus CL, CCC (0.06 in. Erexit faciem) ± 0.030 Classis CD (0,25 in. Erexit faciem) ± 0.020 Anulum genus iuncturam 0.020, -zero Intus et extra diametri magnis parvis lingua, sulcus, masculum et feminam R, S, T, U, W, X, Y & Z ± 0.020 K & L 0.020, -Zero Ring iuncturam adversus Profundum (dimension e) 0,016, -Zero Width (dimensionem f) ± 0.008 Picem diameter (dimensionem P) ± 0.005 Radius in fundo (dimensionem r) R <0.060 0.030, -Zero R> 0.060 ± 0.030 XXIII-gradu angulus ± Obolum deg. |
| EXERCITATIO et adversus | Diametrum de fulmine circulo ± 0.060 Centrum-ut-centrum adiacentibus fulmine foraminibus ± 0.030 Eccentricitatem inter fulmine circulo diametri et machined adversus diametros NPS II Obolum et minor ± 0.030 NPS III et maior ± 0.060 * Diametrum fulmine foraminibus ± 0.020 |

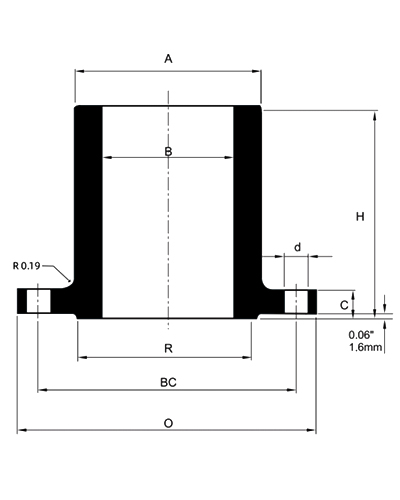

Class150
| Nominal Pipe Size (In) | Foris Diameter (M) | Crassities LABES Min. (M) | O.D. Ex Erexit Faciem (M) | Hub Diameter ad bevel (M) | Diameter PERSPICTUS (M) | Longitudo Per Hub (M) | EXERCITATIO | ||
| Diameter fulmen Circulus (M) | Numerus CALLIDUS | Diameter CALLIDUS (M) | |||||||
| - | O | C | R | A | B | H | BC | - | d |
| ½ | 89.0 | 11.1 | 34.9 | 30.2 | 12.7 | 228.6 | 60.5 | 4 | 15.8 |
| Quadrata | 95.8 | 12.7 | 42.9 | 38.1 | 19.1 | 228.6 | 69.9 | 4 | 15.8 |
| 1 | 10.8.0 | 14.3 | 50.8 | 50.8 | 25.4 | 228.6 | 79.4 | 4 | 15.8 |
| I quadrata | 117.5 | 15.9 | 63.5 | 60.3 | 31.8 | 228.6 | 88.9 | 4 | 15.8 |
| I ½ | 127.0 | 17.5 | 73.0 | 66.7 | 38.1 | 228.6 | 98.4 | 4 | 15.8 |
| 2 | 152.5 | 19.1 | 92.1 | 82.5 | 50.8 | 228.6 | 120.7 | 4 | 19.0 |
| II obolum | 178.0 | 22.2 | 104.8 | 95.2 | 63.5 | 228.6 | 139.7 | 4 | 19.0 |
| 3 | 190.5 | 23.8 | 127.0 | 107.9 | 76.2 | 228.6 | 152.4 | 4 | 19.0 |
| III obolum | 216.0 | 23.8 | 139.9 | 124.0 | 88.9 | 228.6 | 177.8 | 8 | 19.0 |
| 4 | 228.5 | 23.8 | 157.2 | 139.7 | 101.6 | 228.6 | 190.5 | 8 | 19.0 |
| 5 | 254.0 | 23.8 | 185.7 | 165.1 | 127.0 | 228.6 | 215.9 | 8 | 22.5 |
| 6 | 279.5 | 25.4 | 215.9 | 196.8 | 152.4 | 228.6 | 241.3 | 8 | 22.5 |
| 8 | 343.0 | 28.6 | 269.9 | 247.6 | 203.2 | 228.6 | 298.4 | 8 | 22.5 |
| 10 | 406.5 | 30.2 | 323.9 | 304.8 | 254.0 | 228.6 | 361.9 | 12 | 25.5 |
| 12 | 482.5 | 31.8 | 381.0 | 365.1 | 304.8 | 228.6 | 431.8 | 12 | 25.5 |
| 14 | 533.5 | 34.9 | 412.8 | 406.4 | 355.6 | 228.6 | 476.2 | 12 | 28.5 |
| 16 | 597.0 | 36.5 | 469.9 | 457.2 | 406.4 | 228.6 | 539.7 | 16 | 28.5 |
| 18 | 635.0 | 39.7 | 533.4 | 508.0 | 457.2 | 228.6 | 577.8 | 16 | 31.8 |
| 20 | 698.5 | 42.9 | 584.2 | 558.8 | 508.0 | 228.6 | 635.0 | 20 | 31.8 |
| 24 | 813.0 | 47.0 | 692.2 | 666.7 | 609.6 | 228.6 | 749.3 | 20 | 35.1 |
Class300
| Nominal Pipe Size (In) | Foris Diameter (M) | Crassities LABES Min. (M) | O.D. Ex Erexit Faciem (M) | Hub Diameter ad bevel (M) | Diameter PERSPICTUS (M) | Longitudo Per Hub (M) | EXERCITATIO | ||
| Diameter fulmen Circulus (M) | Numerus CALLIDUS (PC) | Diameter CALLIDUS (M) | |||||||
| - | O | C | R | A | B | H | BC | - | d |
| ½ | 95.5 | 14.3 | 34.9 | 38.1 | 12.7 | 228.6 | 66.7 | 4 | 15.8 |
| Quadrata | 117.5 | 15.9 | 42.9 | 47.6 | 19.1 | 228.6 | 82.5 | 4 | 19.0 |
| 1 | 124.0 | 17.5 | 50.8 | 54.0 | 25.4 | 228.6 | 88.9 | 4 | 19.0 |
| I quadrata | 133.5 | 19.1 | 63.5 | 63.5 | 31.8 | 228.6 | 98.4 | 4 | 19.0 |
| I ½ | 155.5 | 20.6 | 73.0 | 69.8 | 38.1 | 228.6 | 114.3 | 4 | 22.5 |
| 2 | 165.0 | 22.2 | 92.1 | 82.5 | 50.8 | 228.6 | 127.0 | 8 | 19.0 |
| II obolum | 190.5 | 25.4 | 104.8 | 100.0 | 63.5 | 228.6 | 149.2 | 8 | 22.5 |
| 3 | 209.5 | 28.6 | 127.0 | 117.5 | 76.2 | 228.6 | 168.3 | 8 | 22.5 |
| III obolum | 228.5 | 30.2 | 139.7 | 133.4 | 88.9 | 228.6 | 184.1 | 8 | 22.5 |
| 4 | 254.0 | 31.8 | 157.2 | 146.0 | 101.6 | 228.6 | 200.0 | 8 | 22.5 |
| 5 | 279.5 | 34.9 | 185.7 | 177.8 | 127.0 | 228.6 | 234.9 | 8 | 22.5 |
| 6 | 317.5 | 36.5 | 215.9 | 206.4 | 152.4 | 228.6 | 269.9 | 12 | 22.5 |
| 8 | 381.0 | 41.3 | 269.9 | 260.3 | 203.2 | 228.6 | 330.2 | 12 | 25.5 |
| 10 | 444.5 | 47.6 | 323.9 | 320.7 | 254.0 | 228.6 | 387.3 | 16 | 28.5 |
| 12 | 520.5 | 50.8 | 381.0 | 374.6 | 304.8 | 228.6 | 450.8 | 16 | 31.8 |
| 14 | 584.0 | 54.0 | 412.8 | 425.4 | 355.6 | 228.6 | 514.3 | 20 | 31.8 |
| 16 | 64.7 | 57.2 | 469.9 | 482.6 | 406.4 | 228.6 | 571.5 | 20 | 35.1 |
| 18 | 711.0 | 60.3 | 533.4 | 533.4 | 457.2 | 228.6 | 628.6 | 24 | 35.1 |
| 20 | 774.5 | 63.5 | 584.2 | 587.3 | 508.0 | 228.6 | 685.8 | 24 | 35.1 |
| 24 | 914.5 | 69.9 | 692.2 | 701.6 | 609.6 | 228.6 | 812.8 | 24 | 41.2 |
Class400
| Nominal Pipe Size (In) | Foris Diameter (M) | Crassities LABES Min. (M) | O.D. Ex Erexit Faciem (M) | Hub Diameter ad bevel (M) | Diameter PERSPICTUS (M) | Longitudo Per Hub (M) | EXERCITATIO | ||
| Diameter fulmen Circulus (M) | Numerus CALLIDUS (PC) | Diameter CALLIDUS (M) | |||||||
| - | O | C | R | A | B | H | BC | - | d |
| 1 | 124.0 | 17.5 | 50.8 | 54.0 | 25.4 | 228.6 | 88.9 | 4 | 19.0 |
| I quadrata | 133.5 | 20.6 | 63.5 | 63.5 | 31.8 | 228.6 | 98.4 | 4 | 19.0 |
| I ½ | 155.5 | 22.2 | 73.0 | 69.8 | 38.1 | 228.6 | 114.3 | 4 | 22.5 |
| 2 | 165.0 | 25.4 | 92.1 | 82.5 | 50.8 | 228.6 | 127.0 | 8 | 19.0 |
| II obolum | 190.5 | 28.6 | 104.8 | 100.0 | 63.5 | 228.6 | 149.2 | 8 | 22.5 |
| 3 | 209.5 | 31.8 | 127.0 | 117.5 | 76.2 | 228.6 | 168.1 | 8 | 22.5 |
| III obolum | 228.5 | 34.9 | 139.7 | 133.4 | 88.9 | 228.6 | 184.2 | 8 | 25.5 |
| 4 | 254.0 | 34.9 | 157.2 | 146.0 | 101.6 | 228.6 | 200.0 | 8 | 25.5 |
| 5 | 279.5 | 38.1 | 185.7 | 177.8 | 127.0 | 228.6 | 234.9 | 8 | 25..5 |
| 6 | 317.5 | 41.3 | 215.9 | 206.4 | 152.4 | 228.6 | 269.9 | 12 | 25.5 |
| 8 | 381.0 | 47.6 | 269.9 | 260.3 | 203.2 | 228.6 | 330.2 | 12 | 28.5 |
| 10 | 444.5 | 54.0 | 323.9 | 320.7 | 254.0 | 228.6 | 387.3 | 16 | 31.8 |
| 12 | 520.5 | 57.2 | 381.0 | 374.6 | 304.8 | 228.6 | 450.8 | 16 | 35.1 |
| 14 | 584.0 | 60.3 | 412.8 | 425.4 | 355.6 | 228.6 | 514.3 | 20 | 35.1 |
| 16 | 647.5 | 63.5 | 469.9 | 482.6 | 406.4 | 228.6 | 571.5 | 20 | 38.1 |
| 18 | 711.0 | 66.7 | 533.4 | 533.4 | 457.2 | 228.6 | 628.6 | 24 | 38.1 |
| 20 | 774.5 | 69.9 | 584.2 | 587.3 | 508.0 | 228.6 | 685.8 | 24 | 41.2 |
| 24 | 914.5 | 76.2 | 692.2 | 701.6 | 609.6 | 228.6 | 812.8 | 24 | 47.8 |
Class600
| Nominal Pipe Size (In) | Foris Diameter (M) | Crassities LABES Min. (M) | O.D. Ex Erexit Faciem (M) | Hub Diameter ad bevel (M) | Diameter PERSPICTUS (M) | Longitudo Per Hub (M) | EXERCITATIO | ||
| Diameter fulmen Circulus (M) | Numerus CALLIDUS (PC) | Diameter CALLIDUS (M) | |||||||
| - | O | C | R | A | B | H | BC | - | d |
| 1 | 124.0 | 17.5 | 50.8 | 54.0 | 25.4 | 228.6 | 88.9 | 4 | 19.0 |
| I quadrata | 133.5 | 20.6 | 63.5 | 63.5 | 31.8 | 228.6 | 98.4 | 4 | 19.0 |
| I ½ | 155.5 | 22.2 | 73.0 | 69.8 | 38.1 | 228.6 | 114.3 | 4 | 22.5 |
| 2 | 165.0 | 25.4 | 92.1 | 82.5 | 50.8 | 228.6 | 127.0 | 8 | 19.0 |
| II obolum | 190.5 | 28.6 | 104.8 | 100.0 | 63.5 | 228.6 | 149.2 | 8 | 22.5 |
| 3 | 209.5 | 31.8 | 127.0 | 117.5 | 76.2 | 228.6 | 168.1 | 8 | 22.5 |
| III obolum | 228.5 | 34.9 | 139.7 | 133.4 | 88.9 | 228.6 | 184.2 | 8 | 25.5 |
| 4 | 273.0 | 38.1 | 157.2 | 152.4 | 101.6 | 228.6 | 215.9 | 8 | 25.5 |
| 5 | 330.0 | 44.5 | 185.7 | 190.5 | 127.0 | 228.6 | 266.7 | 8 | 28.5 |
| 6 | 355.5 | 47.6 | 215.9 | 222.2 | 152.4 | 228.6 | 292.1 | 12 | 28.5 |
| 8 | 419 | 55.6 | 269.9 | 273.0 | 203.2 | 228.6 | 349.3 | 12 | 31.8 |
| 10 | 508.0 | 63.5 | 323.9 | 342.9 | 254.0 | 228.6 | 431.8 | 16 | 35.1 |
| 12 | 559.0 | 66.7 | 381.0 | 400.0 | 304.8 | 228.6 | 489.0 | 20 | 35.1 |
| 14 | 603.5 | 69.9 | 412.8 | 431.8 | 355.6 | 228.6 | 527.1 | 20 | 38.1 |
| 16 | 686.0 | 76.2 | 469.9 | 495.3 | 406.4 | 228.6 | 603.3 | 20 | 412 |
| 18 | 743.0 | 82.6 | 533.4 | 546.1 | 457.2 | 228.6 | 654.1 | 20 | 44.5 |
| 20 | 813.0 | 88.9 | 584.2 | 609.6 | 508.0 | 228.6 | 723.9 | 24 | 44.5 |
| 24 | 940.0 | 101.6 | 692.2 | 717.5 | 609.6 | 228.6 | 838.2 | 24 | 50.8 |
Class900
| Nominal Pipe Size (In) | Foris Diameter (M) | Crassities LABES Min. (M) | O.D. Ex Erexit Faciem (M) | Hub Diameter ad bevel (M) | Diameter PERSPICTUS (M) | Longitudo Per Hub (M) | EXERCITATIO | ||
| Diameter fulmen Circulus (M) | Numerus CALLIDUS (PC) | Diameter CALLIDUS (M) | |||||||
| - | O | C | R | A | B | H | BC | - | d |
| 1 | 149.5 | 28.6 | 50.8 | 52.4 | 25.4 | 228.6 | 101.6 | 4 | 25.5 |
| I quadrata | 159.0 | 28.6 | 63.5 | 63.5 | 31.8 | 228.6 | 111.1 | 4 | 25.5 |
| I ½ | 178.0 | 31.8 | 73.0 | 69.9 | 38.1 | 228.6 | 123.8 | 4 | 28.5 |
| 2 | 216.0 | 38.1 | 92.1 | 104.8 | 50.8 | 228.6 | 165.1 | 8 | 25.5 |
| II obolum | 244.5 | 41.3 | 104.8 | 123.8 | 63.5 | 228.6 | 190.5 | 8 | 28.5 |
| 3 | 241.5 | 38.1 | 127.0 | 127.0 | 76.2 | 228.6 | 190.5 | 8 | 25.5 |
| 4 | 292.0 | 44.5 | 157.2 | 158.7 | 101.6 | 228.6 | 235.0 | 8 | 31.8 |
| 5 | 349.5 | 50.8 | 185.7 | 190.5 | 127.0 | 228.6 | 279.4 | 8 | 35.1 |
| 6 | 381.0 | 55.6 | 215.9 | 235.0 | 152.4 | 228.6 | 317.5 | 12 | 31.8 |
| 8 | 470.0 | 63.5 | 269.9 | 298.5 | 203.2 | 228.6 | 393.7 | 12 | 38.1 |
| 10 | 546.0 | 69.9 | 323.9 | 368.3 | 254.0 | 228.6 | 469.9 | 16 | 38.1 |
| 12 | 609.5 | 79.4 | 381.0 | 419.1 | 304.8 | 228.6 | 533.5 | 20 | 38.1 |
| 14 | 641.5 | 85.7 | 412.8 | 450.9 | 355.6 | 228.6 | 558.8 | 20 | 41.0 |
| 16 | 705.0 | 88.9 | 469.9 | 508.0 | 406.4 | 228.6 | 616.0 | 20 | 44.5 |
| 18 | 787.5 | 101.6 | 533.4 | 565.2 | 457.2 | 228.6 | 685.8 | 20 | 50.8 |
| 20 | 857.5 | 108.0 | 584.2 | 622.3 | 508.0 | 228.6 | 749.3 | 20 | 54.0 |
| 24 | 1014.5 | 139.7 | 692.2 | 749.3 | 609.6 | 228.6 | 901.7 | 20 | 66.5 |
Classica1500
| Nominal Pipe Size (In) | Foris Diameter (M) | Crassities LABES Min. (M) | O.D. Ex Erexit Faciem (M) | Hub Diameter ad bevel (M) | Diameter PERSPICTUS (M) | Longitudo Per Hub (M) | EXERCITATIO | ||
| Diameter fulmen Circulus (M) | Numerus CALLIDUS (PC) | Diameter CALLIDUS (M) | |||||||
| - | O | C | R | A | B | H | BC | - | d |
| 1 | 149.5 | 28.6 | 50.8 | 52.4 | 25.4 | 228.6 | 101.6 | 4 | 25.5 |
| I quadrata | 159.0 | 28.6 | 63.5 | 63.5 | 31.8 | 228.6 | 111.1 | 4 | 25.5 |
| I ½ | 178.0 | 31.8 | 73.0 | 69.9 | 38.1 | 228.6 | 123.8 | 4 | 28.5 |
| 2 | 216.0 | 38.1 | 92.1 | 104.8 | 50.8 | 228.6 | 165.1 | 8 | 25.5 |
| II obolum | 244.5 | 41.3 | 104.8 | 123.8 | 63.5 | 228.6 | 190.5 | 8 | 28.5 |
| 3 | 267.0 | 47.6 | 127.0 | 133.4 | 762 | 228.6 | 203.2 | 8 | 31.8 |
| 4 | 311.0 | 54.0 | 157.2 | 161.9 | 101.6 | 228.6 | 241.3 | 8 | 35.1 |
| 5 | 374.5 | 73.0 | 185.7 | 196.9 | 127.0 | 228.6 | 292.1 | 8 | 41.0 |
| 6 | 393.5 | 82.6 | 215.9 | 228.6 | 152.4 | 228.6 | 317.5 | 12 | 38.1 |
| 8 | 483.0 | 92.1 | 269.9 | 292.1 | 203.2 | 228.6 | 393.7 | 12 | 44.5 |
| 10 | 584.0 | 108.0 | 323.9 | 368.3 | 254.0 | 406.4 | 482.6 | 12 | 50.8 |
| 12 | 673.0 | 123.8 | 381.0 | 450.9 | 304.8 | 406.4 | 571.5 | 16 | 54.0 |
| 14 | 749.5 | 133.4 | 412.8 | 495.3 | 355.6 | - | 635.0 | 16 | 60.5 |
| 16 | 825.5 | 146.1 | 469.9 | 552.6 | 406.4 | - | 704.9 | 16 | 66.5 |
| 18 | 914.5 | 161.9 | 533.4 | 596.9 | 457.2 | - | 774.7 | 16 | 73.0 |
| 20 | 984.0 | 177.8 | 584.2 | 641.4 | 508.0 | - | 831.9 | 16 | 79.5 |
| 24 | 1168.5 | 203.2 | 692.2 | 762.0 | 609.6 | - | 9910.6 | 16 | 920 |
Class2500
| Nominal Pipe Size (In) | Foris Diameter (M) | Crassities LABES Min. (M) | O.D. Ex Erexit Faciem (M) | Hub Diameter ad bevel (M) | Diameter PERSPICTUS (M) | Longitudo Per Hub (M) | EXERCITATIO | ||
| Diameter fulmen Circulus (M) | Numerus CALLIDUS (PC) | Diameter CALLIDUS (M) | |||||||
| - | O | C | R | A | B | H | BC | - | d |
| 1 | 159.0 | 34.9 | 50.8 | 57.2 | 25.4 | 228.6 | 108.0 | 4 | 25.5 |
| I quadrata | 184.0 | 38.1 | 63.5 | 73.0 | 31.8 | 228.6 | 130.2 | 4 | 28.5 |
| I ½ | 203.0 | 44.5 | 73.0 | 79.4 | 38.1 | 228.6 | 146.1 | 4 | 31.8 |
| 2 | 235.0 | 50.8 | 92.1 | 95.3 | 50.8 | 228.6 | 171.5 | 8 | 28.5 |
| II ½ | 267.0 | 57.2 | 104.8 | 114.3 | 63.5 | 228.6 | 196.9 | 8 | 31.8 |
| 3 | 305.0 | 66.7 | 127.0 | 133.4 | 76.2 | 228.6 | 228.6 | 8 | 35.0 |
| 4 | 355.5 | 76.2 | 157.2 | 165.1 | 101.6 | 228.6 | 273.1 | 8 | 41.0 |
| 5 | 419.0 | 92.1 | 185.7 | 203.2 | 127.0 | 228.6 | 323.9 | 8 | 48.0 |
| 6 | 483.0 | 108.0 | 215.9 | 235.0 | 152.4 | 228.6 | 368.3 | 8 | 54.0 |
| 8 | 552.5 | 127.0 | 269.9 | 304.8 | 203.2 | 228.6 | 438.2 | 12 | 54.0 |
| 10 | 673.0 | 165.1 | 323.9 | 374.7 | 254.0 | 406.4 | 539.8 | 12 | 66.5 |
| 12 | 762.0 | 184.2 | 381.0 | 441.3 | 304.8 | 406.4 | 619.1 | 12 | 73.0 |
Condita in MMVII et ad Longyou oeconomica progressionem zonam, Zhejiang provincia, in MMXXII. Covers aream 130,000 quadratum metris, magis quam XXX productio lineas, CCC operarios, XX R & D populus, XXX inspectionem et annua, XX R & D populus, XXX inspectionem et annua output de 50.000 talentorum XXX.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (Abs): British Register of Shipping (LR), Deutsche Veritas (GL), Bureau veritas Society (BV), Det Norske (DNV), Coreanica Register of Shipping (KR) officina certification.
Pelagus products includere immaculatam ferro, pipe caerimonias, flanges, valvulae, etc., quae late in PETROLEUM, chemical industria, nuclei industria, urget, shippuilding, nuclei, cibo, saltu, electrica, et alimentis, mechanica apparatibus, et aliis agris. In comitatu adhaeret ad corporatum tenet de "qualis est superessendam, fama pro progressionem" et animo serves omnis mos creare win-vincere situ.
Missa Densitas Mitis Steel: Basics et practica momentum Massa densitas ferri lenis est proprietas fundamentalis quae directe afficit quomodo fabrum et designantium magnitudines componentes, pond...
VisumIntroductio ad Maximum Alloy Steel Material Ferrum mixturae gravis materia typum ferrei est quod parva cento elementorum mixtura continet, minus quam 8% typice, praeter carbonem. Haec elementa, ...
VisumOverview - quid "pondus per cubicum pollicis" significat pro ferro immaculato "Pondus per cubicum pollicis" simpliciter est massa (in libras) unius materiae cubicae pollicis. Hoc enim ferrum imm...
VisumNos te numquam participes vestri email oratio et vos
Potest opt e aliquo tempore promittimus.
Specialiter in productionem in immaculatam
Steel Pipe
No.188 Binkang Road, xixing via, Binjiang District, Hangzhou urbem, Zhejiang Province, Sina
LXXXVI 18969027607
sales@xhxmat.com
Copyright © Xinhang Special Material Co., Ltd. Hangzhou genere Rights Reserved.
