Aliquam Steel Pipe caecus Flange Fittences usus est in IsOlting in Pipe

Aliquam Steel Pipe caecus Flange Fittences usus est in IsOlting in Pipe

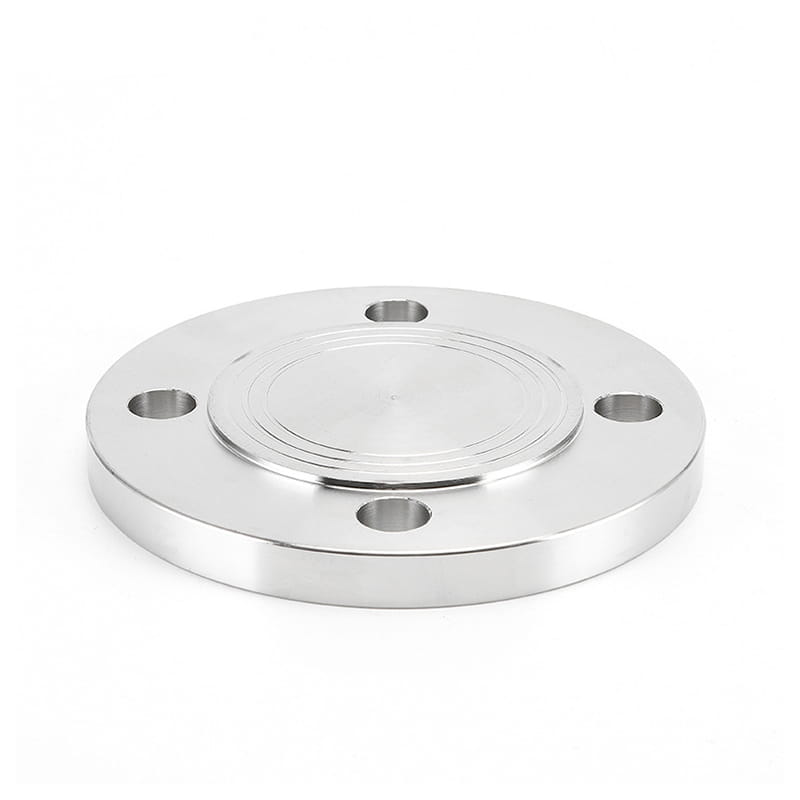

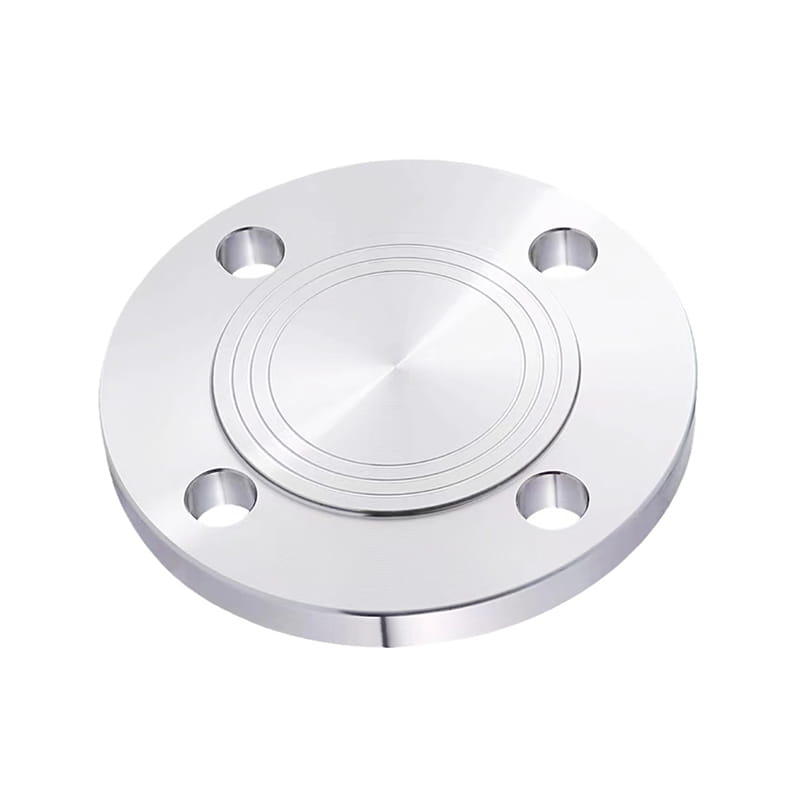

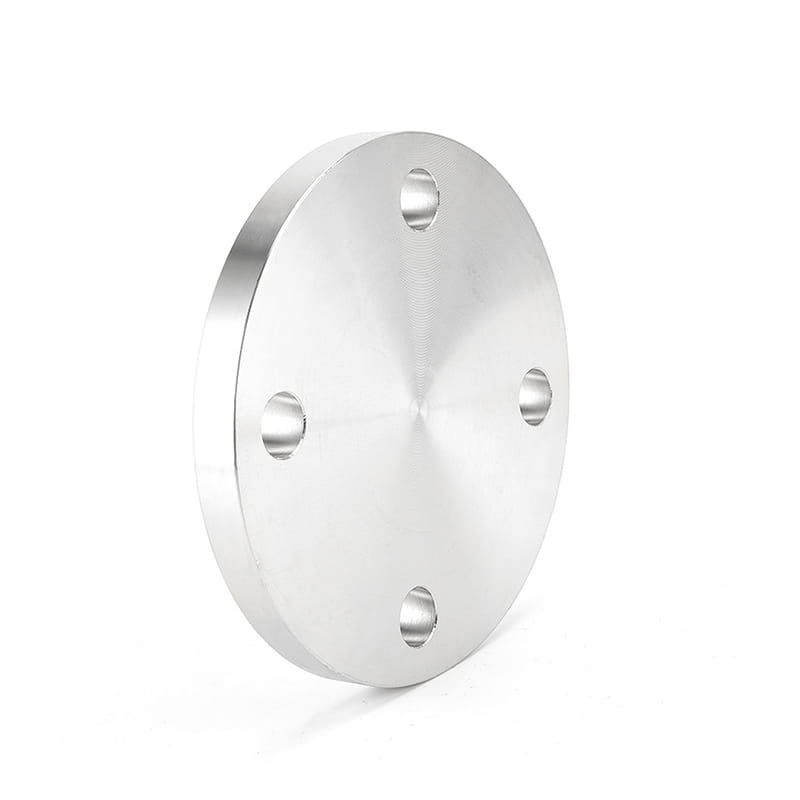

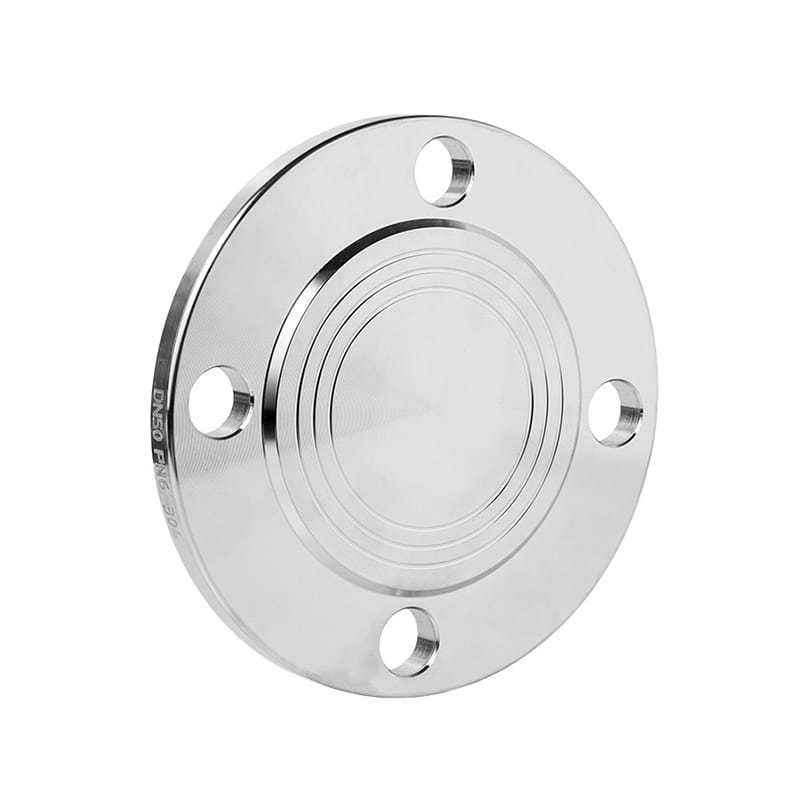

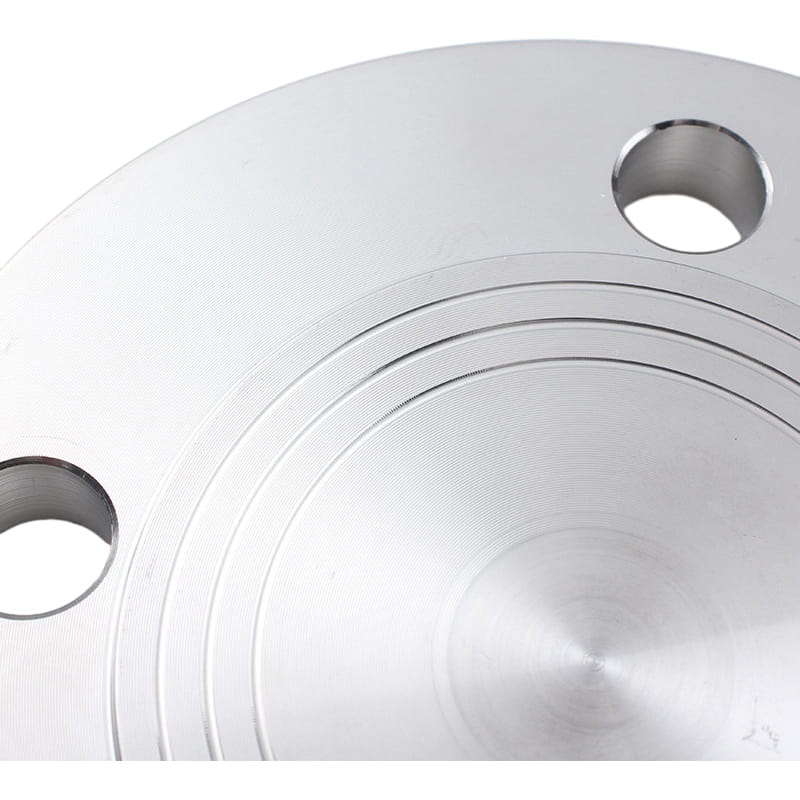

A caecus leunca est solidum ferro laminam sine foraminibus. Hoc est ad terminare finem a limbis ratio. Non potest esse in tibia, valvae vel pressura vas. Quia succendatur caecus flange praebet facile ad accessum ad interiorem vas vel pipe. A caecus potest reponere a bistius flange pileum cap in casu et extensio de limbis lineam non requiritur, aut in casu a limbis inspectionem non requiritur.

Multi caeci flanges habent basic structuram quod, dissimilis aliis flanges, requirit paulo machining et gravis quia non habet foramina. Hoc genus LABIUM est solidum cum nullo peperit et potest habere plana faciem (ff) et erexit faciem (RF).

Flanges caeci sunt communiter in petrochemicals, pipe ipsum, publica officia et aqua opera.

Prev:PN10 Latin erexit faciem (RF) Metal Sorf Caecus Flante cap cum thru foramina
Next:No next article

Introductio

Vexillum	ANSI: Ansi B16.5, Ansi B16.47, MSS SP44, ANSI B16.36, Ansi B16.48 DIN： DIN2527、DIN2566、DIN2573、DIN2576、DIN2641、DIN2642、DIN2655、DIN2656、DIN2627、DIN2628、DIN2629、DIN 2631、DIN2632、DIN2633、DIN2634、DIN2635、DIN2636、 DIN2637、DIN2638、DIN2673 BS: BS4504, BS4504, BS1560, BS10
Materia	Aliquam Steel, Carbon Steel, Alloy Steel, Cupro Nickel (90/10, 70/30, 66/30/2/2), C276 (C-II), DCI (DCCCXXV, (DCCCXX), DC & (DCCCXXV, (DCCCXX), DC & (DCCCXX), 800H), DC & (DCCCXXV, (DCCCXX), DC Duplex Steel, Ps 904L, Titanium (I & II) etc.
Superficies	Anti-rubigo oleum, nigrum pingere, flavo pingunt, cadmiae plating, calidum, intinge galvanizing, electro, galvanizing, epoxy coating
Genus	Collatio, casting, cnc secans
magnitudo	1/2 "ad LX", DN15 ad DN1500
Delivery Tempus	Intra 5-30 diebus post acceptam PROMUTUUS
Stipare	Plywood Pallet, Ligne Pallet, Ligne Case, etc.
Applicatio	Flanges caeci sunt communiter in petrochemicals, pipe ipsum, publica officia et aqua opera.

FlangEs caEcus-PN6

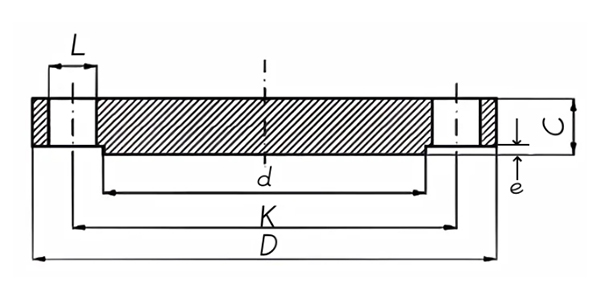

Dn	D	K	L	Non foramina	Fulmen	e	d	C
10	75	50	11	4	M10	2	35	12
15	80	55	11	4	M10	2	40	12
20	90	65	11	4	M10	2	50	14
25	100	75	11	4	M10	2	60	14
32	120	90	14	4	M12	2	70	14
40	130	100	14	4	M12	3	80	14
50	140	110	14	4	M12	3	90	14
65	160	130	14	4	M12	3	110	14
80	190	150	18	4	M16	3	128	16
100	210	170	18	4	M16	3	148	16
125	240	200	18	8	M16	3	178	18
150	265	225	18	8	M16	3	202	18
200	320	280	18	8	M16	3	258	20
250	375	335	18	12	M16	3	312	22
300	440	395	22	12	M20	4	365	22
350	490	445	22	12	M20	4	415	22
400	540	495	22	16	M20	4	465	22
450	595	550	22	16	M20	4	520	24
500	645	600	22	20	M20	4	570	24
600	755	705	26	20	M24	5	670	30
700	860	810	26	24	M24	5	775	40
800	975	920	30	24	M27	5	880	44
900	1075	1020	30	24	M27	5	980	48
1000	1175	1120	30	28	M227	5	1080	52
1200	1405	1340	33	32	M30	5	1295	60
1400	1630	1560	36	36	M33	5	1510	68
1600	1830	1760	36	40	M33	5	1710	76
1800	2045	1970	39	44	M36	5	1920	84
2000	2265	2180	42	48	M39	5	2125	92

Flanges caecus-PN10

Dn	D	K	L	Non foramina	Fulmen	e	d	C
10	90	60	14	4	M12	2	40	16
15	95	65	14	4	M12	2	45	16
20	105	75	14	4	M12	2	58	18
25	115	85	14	4	M12	2	68	18
32	140	100	18	4	M16	2	78	18
40	150	110	18	4	M16	3	88	18
50	165	125	18	4	M16	3	102	18
65	185	145	18	8	M16	3	122	18
80	200	160	18	8	M16	3	138	20
100	220	180	18	8	M16	3	158	20
125	250	210	18	8	M16	3	188	22
150	285	240	22	8	M20	3	212	22
200	340	295	22	8	M20	3	268	24
250	395	350	22	12	M20	3	320	26
300	445	400	22	12	M20	4	370	26
350	505	460	22	16	M20	4	430	26
400	565	515	26	16	M24	4	482	26
450	615	565	26	20	M24	4	532	28
500	670	620	26	20	M24	4	585	28
600	780	725	30	20	M27	5	685	34
700	895	840	30	24	M27	5	800	38
800	1015	950	33	24	M30	5	905	42
900	1115	1050	33	28	M30	5	1005	46
1000	1230	1160	36	28	M33	5	1110	52
1200	1455	1380	39	32	M36	5	1330	60
